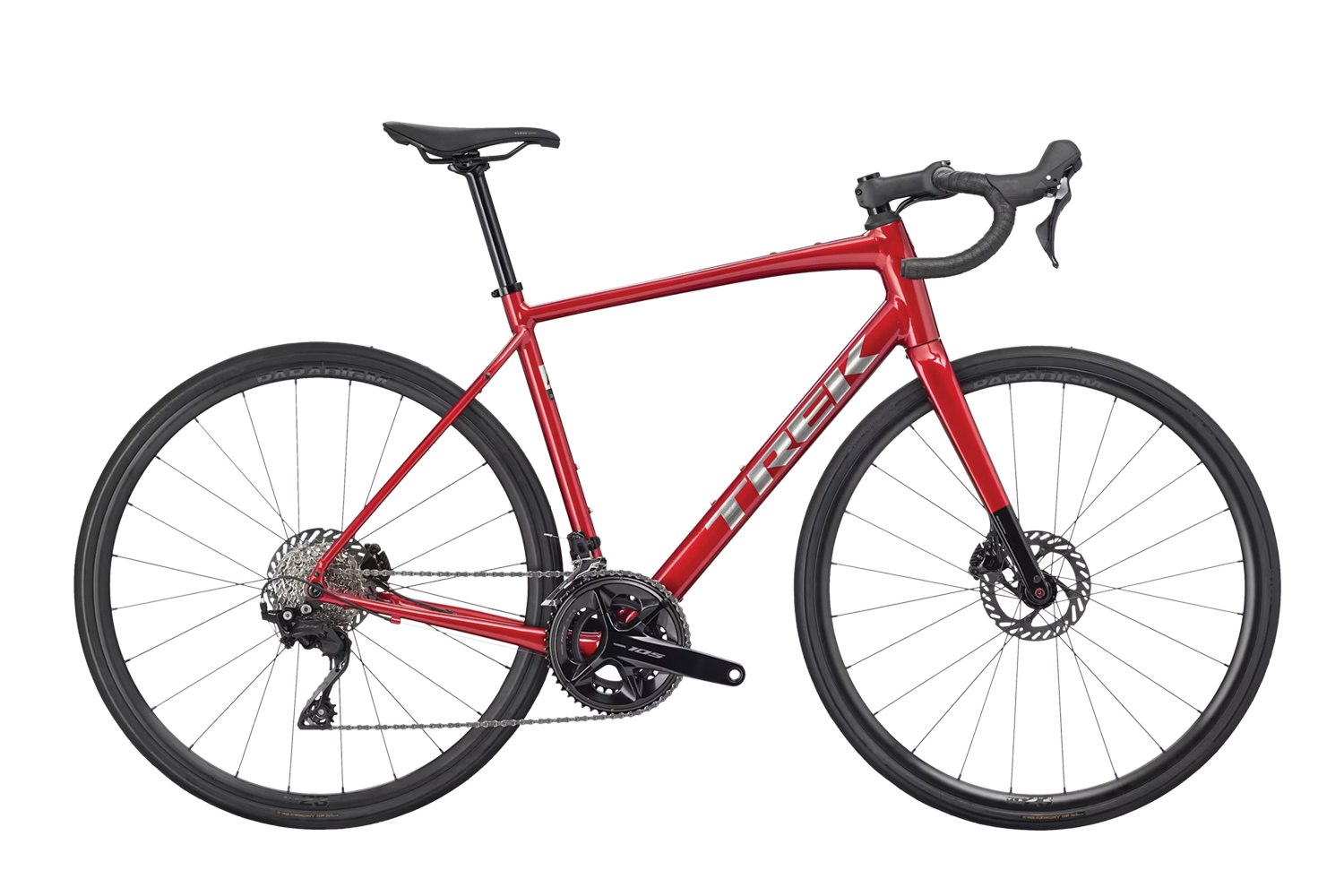

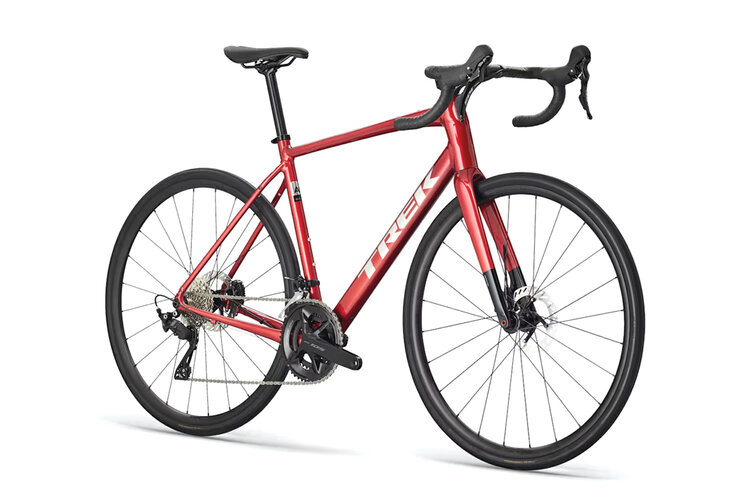

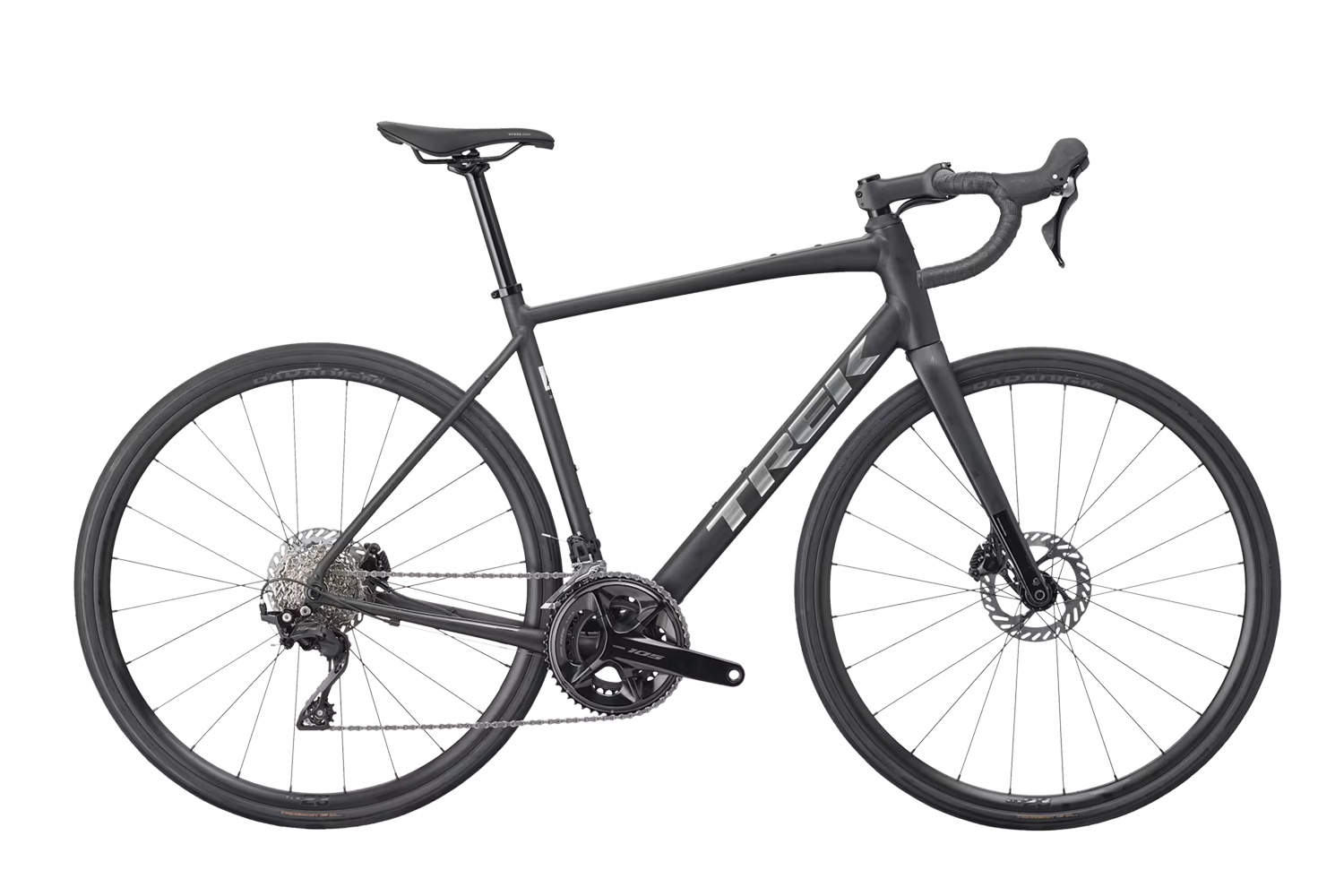

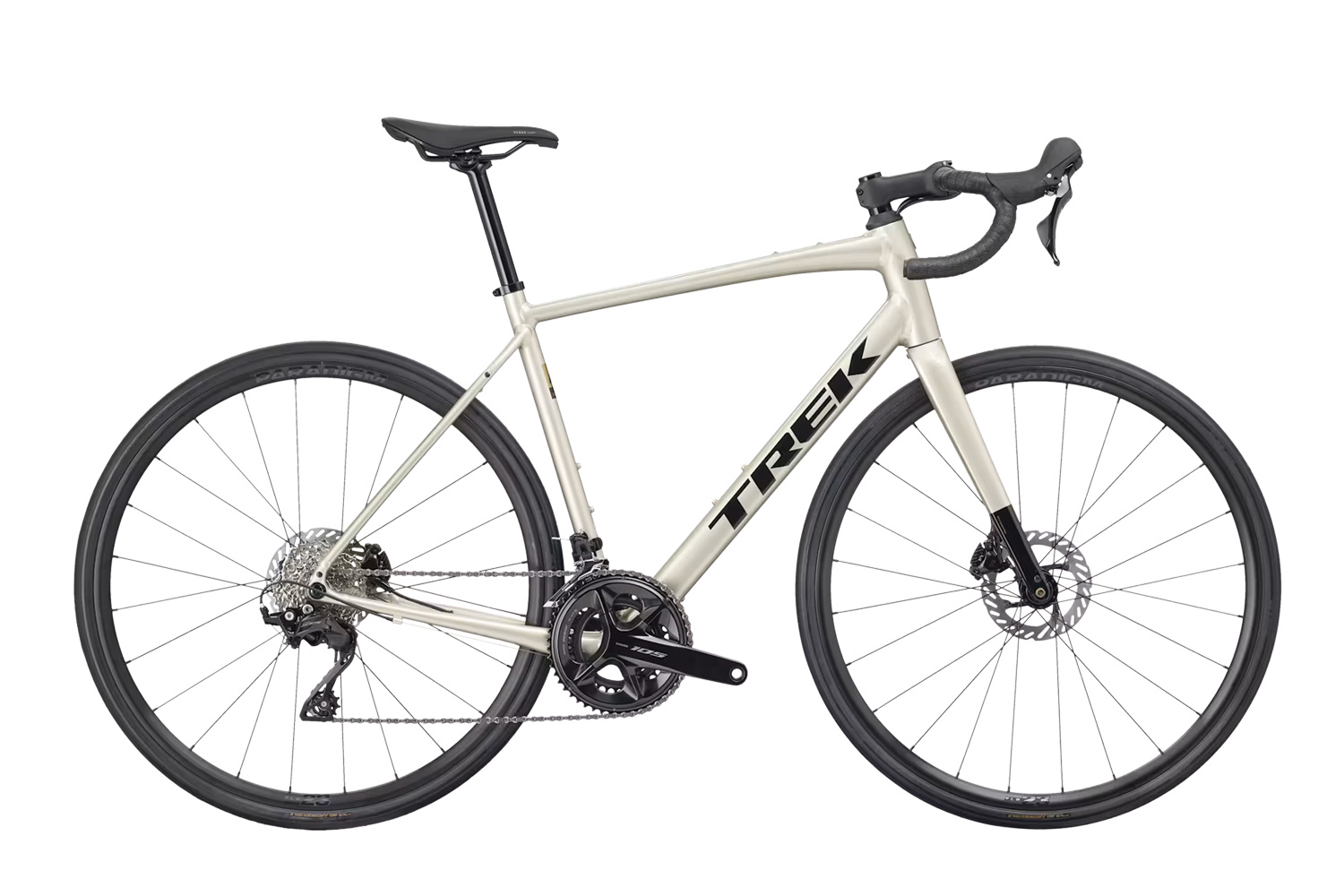

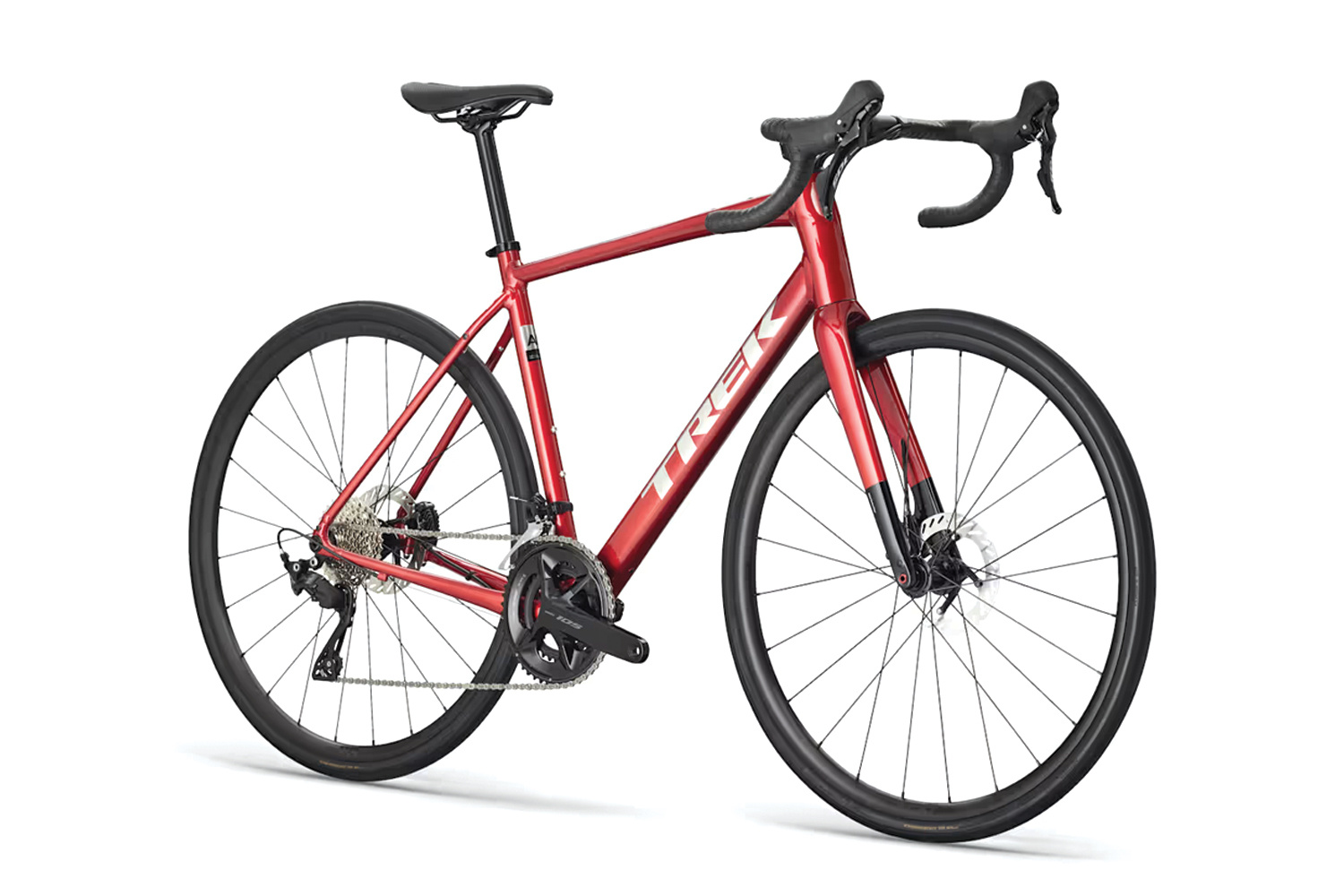

Trek Domane AL 5 Gen 4 — Road Bike
Available in store
CloseProduct details
IN STORE PICKUP OR LOCAL DELIVERY ONLY
Long Okanagan valley road routes reward bikes that stay comfortable for hours — and the Trek Domane AL 5 Gen 4 is built exactly for that. Founded on Trek's 100 Series Alpha Aluminium frame with a full carbon fork and the endurance geometry the Domane line is known for, the AL 5 steps things up meaningfully with a Shimano 105 R7100 2×12 mechanical drivetrain, hydraulic disc brakes, and tyre clearance up to 38mm. It's a bike that handles everything from a fast group ride to a loaded day on mixed roads — and grows with the rider as their ambitions do.
|
|
|
|
KEY FEATURES |

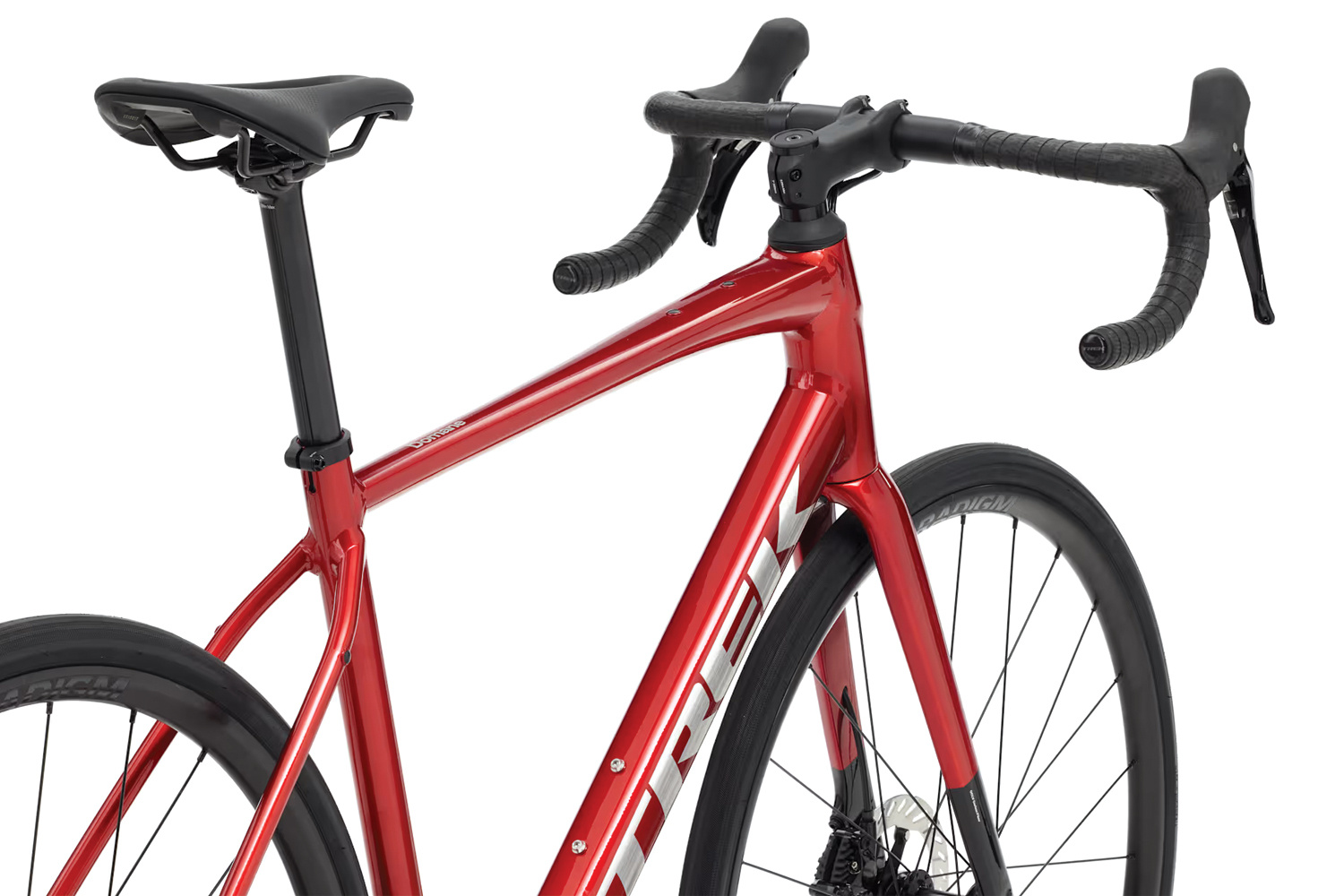

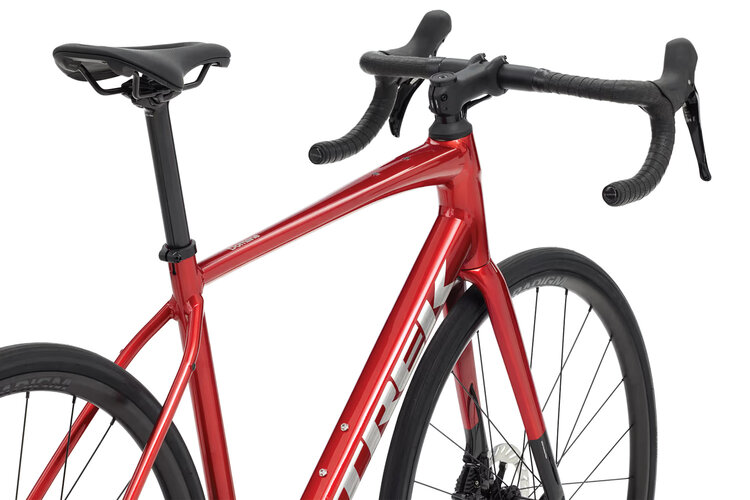

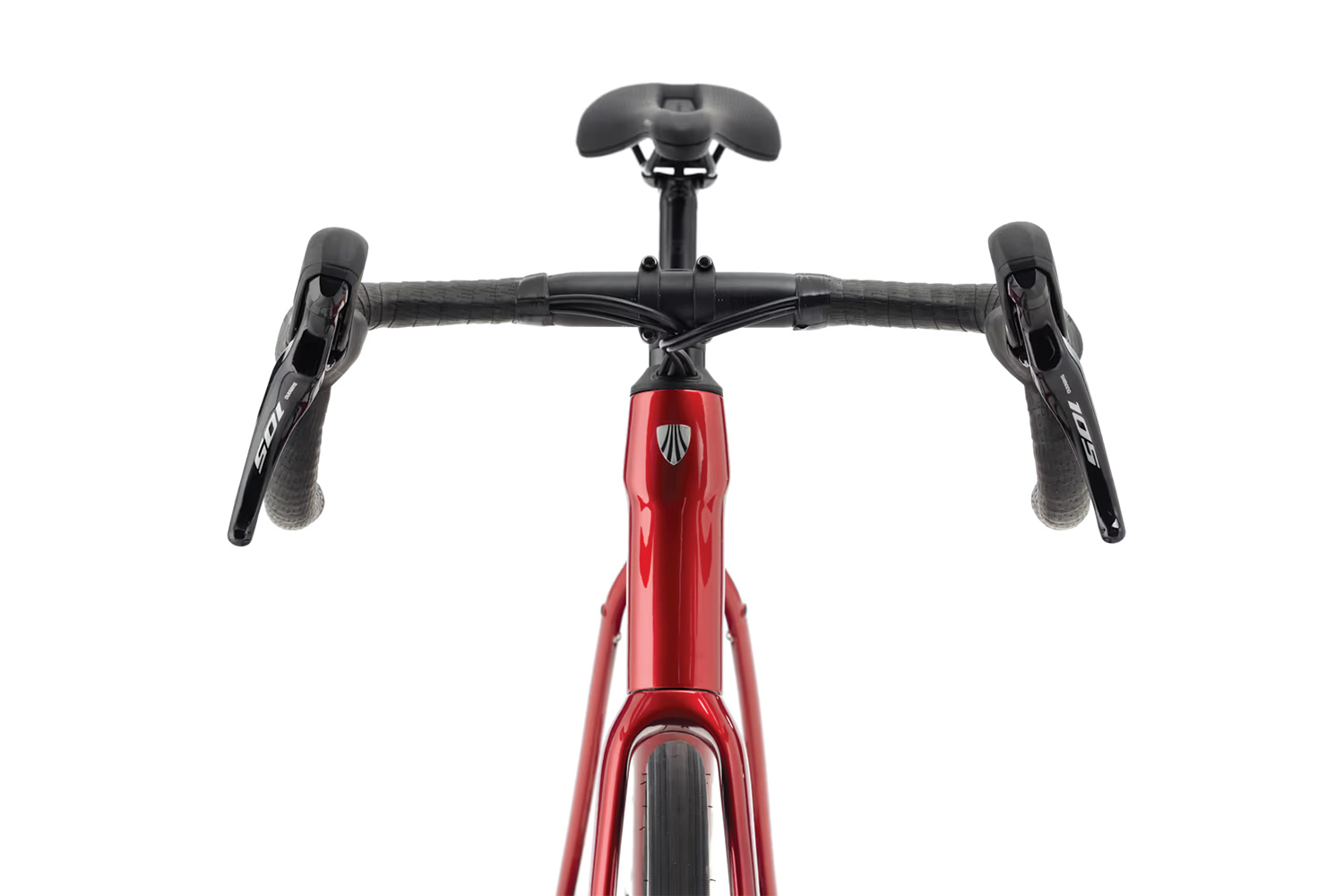

Frame: Trek 100 Series Alpha Aluminium, tapered head tube, internal cable routing, fender and rack mounts, flat-mount disc, UDH, 142×12mm thru-axle — advanced tube shaping delivers a high-end aesthetic at an aluminium price point Fork: Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat-mount disc, 12×100mm thru-axle — full carbon construction smooths road vibration and keeps front-end weight low Drivetrain: Shimano 105 R7100 mechanical, 2×12 speed; 50/34 crankset, Shimano 105 7101 cassette 11-34T — 24 gears with a wide range that handles Okanagan climbs and flat valley sprints equally well Brakes: Shimano 105 hydraulic disc, flat-mount, with Shimano RT70 CentreLock rotors, 160mm front and rear — sharper modulation and better wet-weather performance than the AL 4's mechanical-disc Tiagra setup Wheels / Tyres: Bontrager Paradigm SL Tubeless Ready rims (24-hole, 21mm inner width, Presta valve) with Formula alloy hubs; Bontrager R1 Hard-Case Lite 700×32mm tyres — tubeless-ready out of the box with puncture protection built in Cockpit: Bontrager Elite IsoZone VR-SF alloy handlebar (31.8mm, 4cm drop-to-hood flare, internal Di2 routing-ready); Bontrager Elite stem (31.8mm, Blendr-compatible, 7-degree); Bontrager Supertack Perf bar tape Seatpost: Bontrager Comp 6061 alloy, 27.2mm, 8mm offset, 330mm length; Verse Short saddle, 145mm width, steel rails Weight: 9.85 kg / 21.72 lbs (56cm, with tubes — confirmed) Max tyre clearance: 38mm (measured) without mudguards — ready for gravel roads and mixed-surface day trips |
|
WHO IS THIS FOR |
The Domane AL 5 Gen 4 is the right choice for riders who are ready to invest in a genuinely capable endurance road bike and want a groupset they won't outgrow quickly. The step to Shimano 105 R7100 12-speed brings noticeably crisper shifting and a wider gear range than the Tiagra-equipped AL 4, while the 105 hydraulic disc brakes deliver confident, well-modulated stopping in all conditions. It suits riders building toward longer events — gran fondos, multi-day tours, or simply consistent high-kilometre seasons on Okanagan roads — who want comfort and performance in the same package without moving to carbon. Our team at Fresh Air will help you find the right fit in-store at both Kelowna locations. Stop by to work with one of our experienced staff members, or call 250-763-3425. |
|
HOW TO SET UP |
As a certified Trek dealer, our team can dial in your contact points before you leave — saddle height, bar reach, and stem length all affect how the Domane AL 5 feels across long days, and getting these right from the start saves a lot of discomfort down the road. We'll also set tyre pressure for the roads you're riding: the Bontrager R1 Hard-Case Lite tyres are tubeless-ready, and if you want to run them tubeless, our mechanics can set that up in-store. The Blendr-compatible stem makes it straightforward to add a cycling computer, and we carry a full range of Bontrager accessories to complement the cockpit. We're also happy to talk through cleat alignment if you're coming onto clipless pedals for the first time. Drop into Fresh Air Pandosy (555 Groves Ave) or Fresh Air Dilworth (1656 Dilworth Drive), or book an appointment online. |
|
GEOMETRY & SIZING |
Frame geometry and sizing details for the Trek Domane AL 5 Gen 4 are available on the Trek website. Trek offers the Domane AL 5 Gen 4 in six sizes: 49, 52, 54, 56, 58, and 61. As a general guide, the 49 suits riders approximately 156–163cm, the 52 fits 163–168cm, the 54 fits 168–174cm, the 56 fits 174–180cm, the 58 fits 180–185cm, and the 61 fits 185–191cm — but inseam length and riding position preferences matter just as much as height. Our team at Fresh Air can help you find the right frame size based on your height, inseam, and riding style — come in to either Kelowna location and we'll get you dialled in. Trek geometry chart: https://www.trekbikes.com/ca/en_CA/bikes/road-bikes/performance-road-bikes/domane/domane-al/domane-al-5-gen-4/p/80404/ |
|
TEST RIDE |
The best way to know if the Domane AL 5 is right for you is to see it in person. Come visit us at Fresh Air Pandosy or Fresh Air Dilworth — our team is happy to walk you through the build, help you size up, and talk through your riding plans. |
|
FAQ |
Q1: What size Trek Domane AL 5 Gen 4 do I need? Q2: Is the Trek Domane AL 5 Gen 4 a good fit for Okanagan valley road riding? Q3: What groupset is on the Domane AL 5 Gen 4 and is it upgradeable? |
SPECS |
|
| FRAMESET |
|
| WEIGHT |
Weight: 56 - 9.80 kg / 21.61 lbs
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
|
| DRIVETRAIN |

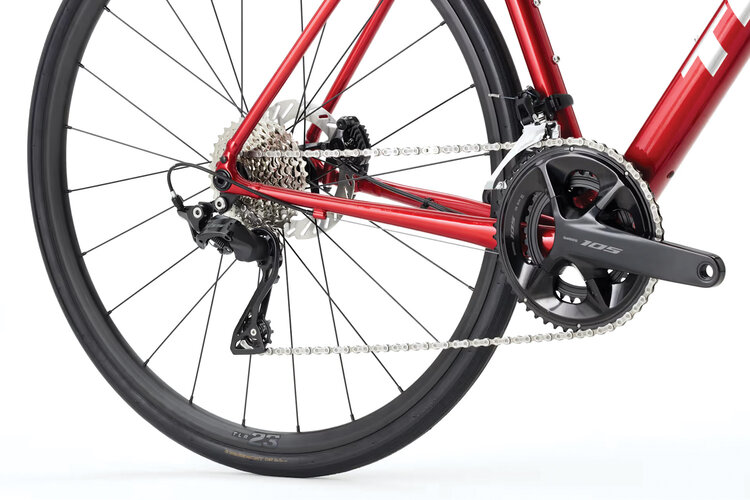

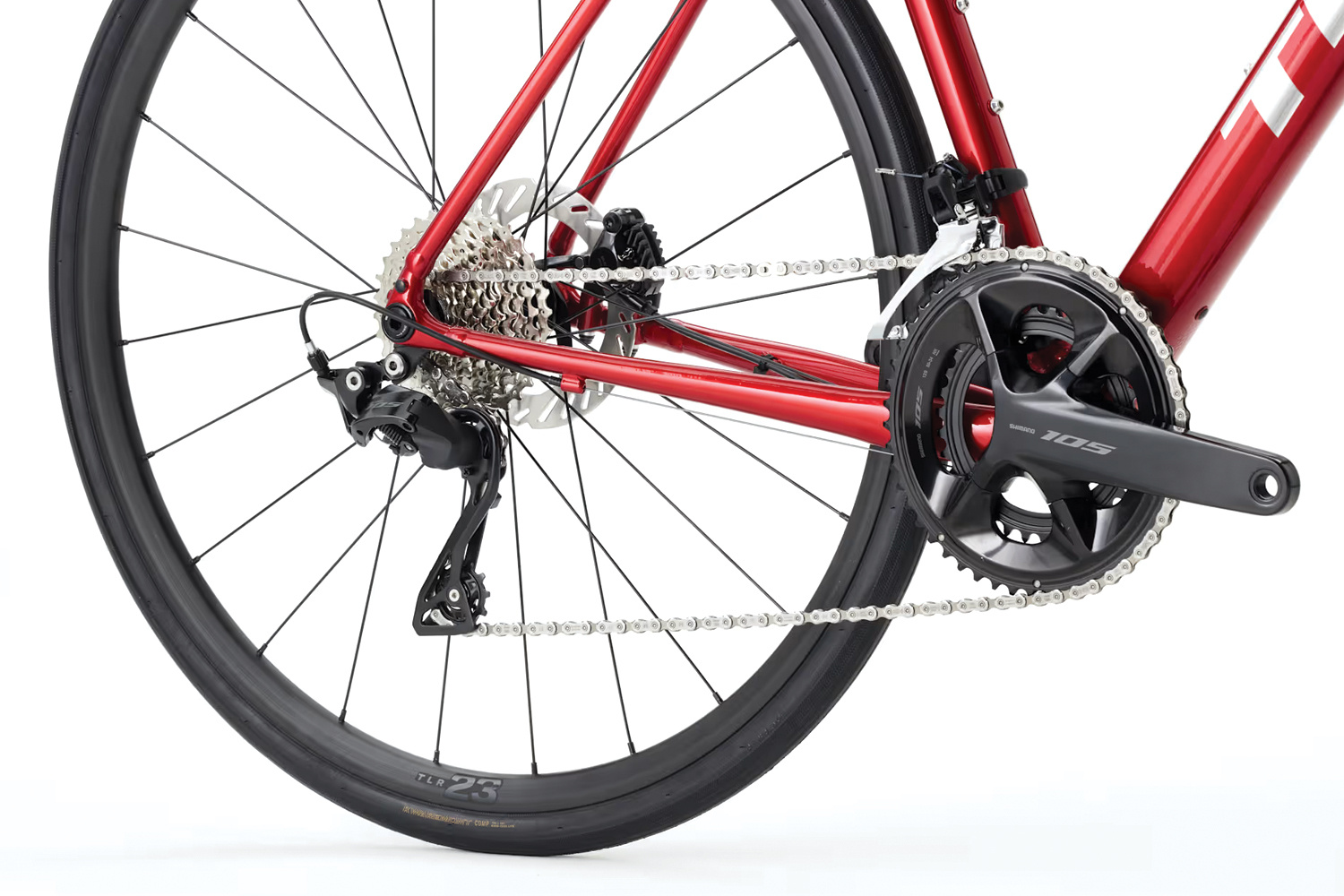

Shifter: Shimano 105 R7120, 12 speed Front Derailleur: Shimano 105 R7100, 31.8mm clamp, down swing Rear Derailleur: Shimano 105 R7100, 36T max cog *Crank: Size: 44, 49 Shimano 105 R7100, 50/34, 160mm length Size: 52, 54, 56 Shimano 105 R7100, 50/34, 165mm length Size: 58, 61 Shimano 105 R7100, 50/34, 170mm length Bottom Bracket: Shimano RS501 BSA Cassette: Shimano 105 7101, 11-34, 12 speed Chain: Shimano SLX M7100, 12 speed Max Chainring Size: 1x: 50T, 2x: 50/34 |
| WHEELS |
|
| COMPONENTS |
|
