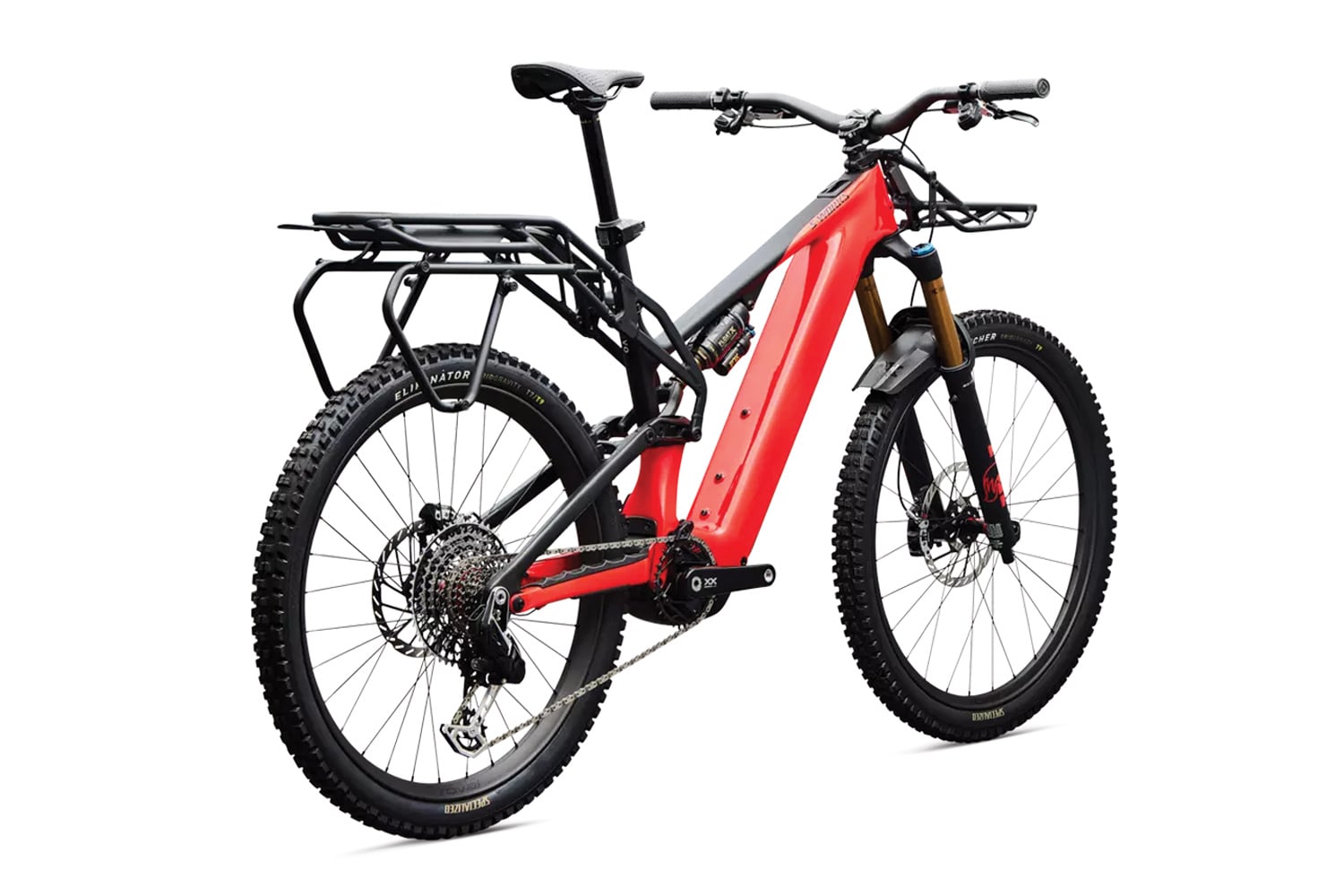

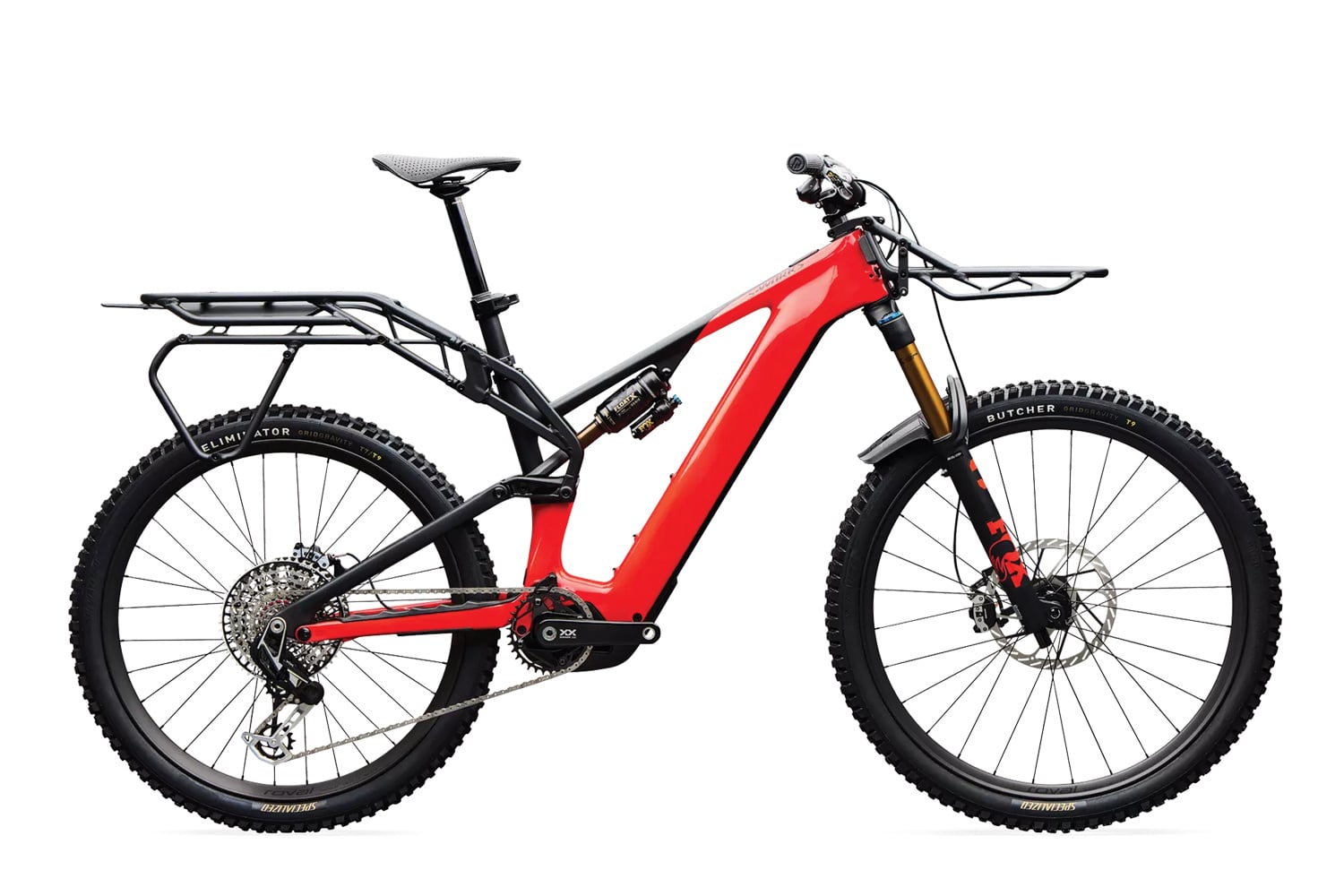

The Okanagan Rail Trail and KVR have always rewarded riders who want to go further and carry more — and the S-Works Levo 4 X was built precisely for that ambition. Built on the same award-winning platform as the Levo 4, this is Specialized's "Electric Overland" machine: a full-power carbon e-MTB that adds a patent-pending rack system to the mix, letting you rip singletrack, cross town, or push out on multi-day loaded tours without compromising the trail performance that makes the Levo a benchmark bike. Whether you're heading out from Kelowna for a loaded KVR overnight or turning your daily commute into an actual adventure, the Levo 4 X is built to replace the car and make every ride count.

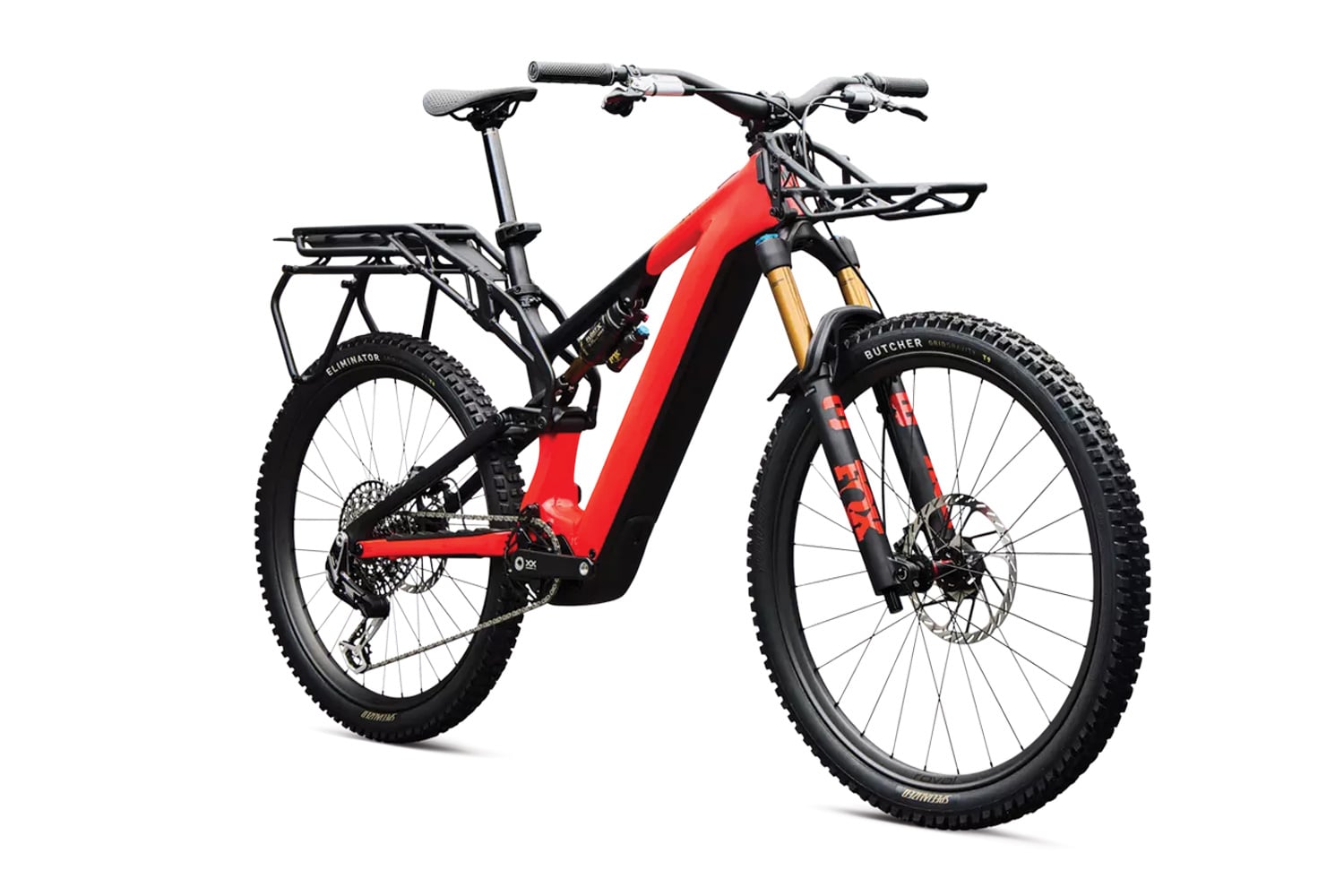

Specialized S-Works Levo 4 X — E-MTB
Available in store: Check availability
Available in store
CloseProduct details
We offer shipping for Specialized Bikes within Canada for a $250 flat rate (bicycles and frames) or $350 for e-bikes
|
|
|
|
KEY FEATURES |

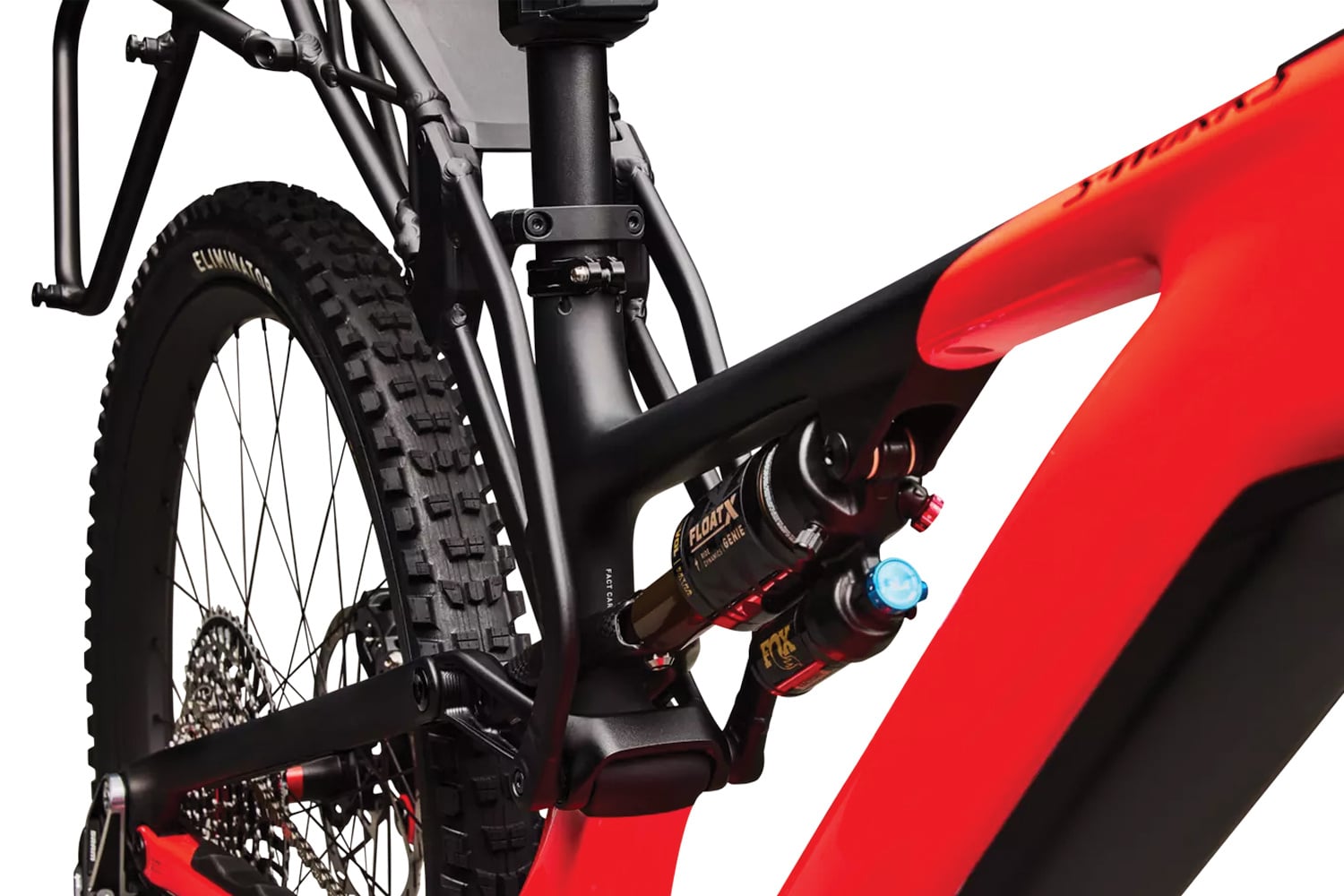

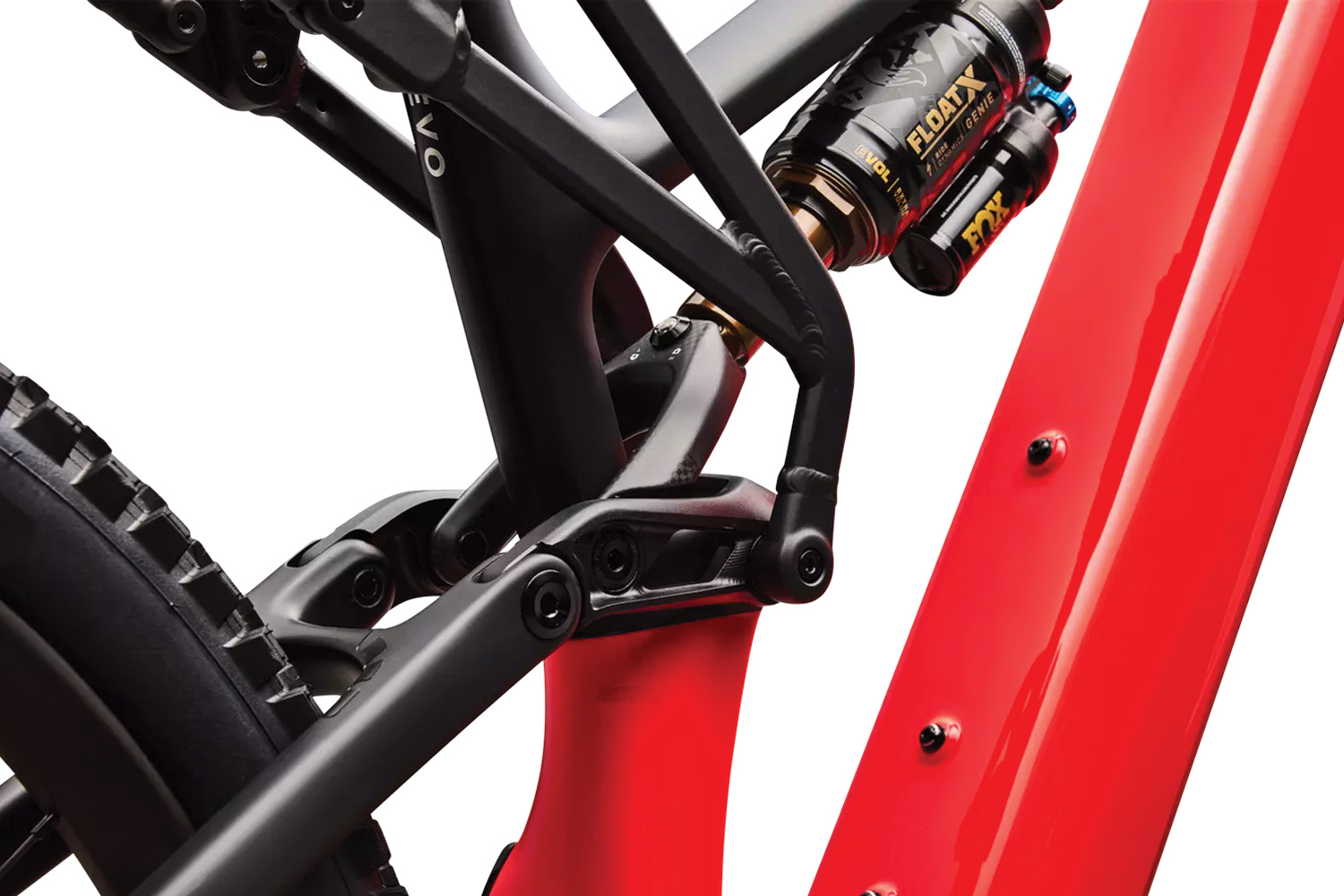

Frame: FACT 11m full carbon, 150 mm Horst Link rear suspension with carbon shock extension, adjustable head angle / BB height / chainstay length, SRAM UDH compatible, SWAT internal downtube storage, side-entry 840 Wh battery, accepts fork travel up to 180 mm; 12×148 mm dropouts with sealed cartridge bearing pivots Motor: Specialized S-Works 3.1, full-power, 850 W peak, 111 Nm torque with SuperNatural power delivery Battery: Specialized 840 Wh, fully integrated side-entry downtube design; compatible with aftermarket 280 Wh Range Extender (up to 1,120 Wh total) or 600 Wh lighter option; SWAT bag storage co-locates with battery compartment Range: Up to 4.75 hours of trail time confirmed (Specialized); exact km figure varies by terrain, rider weight, and assist mode [VERIFY for specific km claim in Canadian marketing] Charge time: 0–80% in under one hour via included Specialized 12-amp smart charger (Standard, Fast, Eco, and 80% charge modes) Fork: FOX Factory 38, GRIP X2 damper with high/low-speed compression and rebound adjustment, 160 mm travel, 15×110 mm axle, 44 mm offset Rear shock: FOX Float X Factory with Specialized GENIE Shock Technology, Ride Dynamics Trail Tune, 2-position lever with LSR adjustment, 210×55 mm Drivetrain: SRAM XX Eagle Transmission, 12-speed wireless AXS; SRAM AXS Pod Ultimate shifter with discrete clamp; SRAM XX Eagle Transmission derailleur; SRAM XX Transmission XS 1297 cassette, 10–52 t; SRAM XX Carbon crank, 160 mm, ISIS interface; SRAM 34 t T-Type chainring; SRAM XX T-Type chain Brakes: SRAM Maven Ultimate, 4-piston hydraulic disc — 220 mm HS2 rotor front, 200 mm HS2 rotor rear Wheels / tyres: Roval Traverse HD 29" hookless carbon (DT Swiss 240 hub, 15×110 mm, 28 h) front; Roval Traverse HD 27.5" hookless carbon (DT Swiss 240 hub, 12×148 mm, 32 h) rear; 30 mm inner width, tubeless ready — Specialized Butcher GRID Gravity T9, 29×2.3" front / 27.5×2.3" rear Cockpit: RaceFace Era Carbon handlebar, 800 mm, 35 mm clamp, 8° backsweep / 5° upsweep (40 mm rise S1/S2; 55 mm rise S3–S6); Industry Nine A35 stem, 40 mm; Deity Lockjaw grips Seatpost: FOX Transfer NEO Factory dropper, 34.9 mm (S2: 125 mm; S3: 175 mm; S4–S6: 200 mm travel) Cargo system: Patent-pending front rack (10 kg capacity) and rear rack (12 kg, MIK 3-pin compatible) — 22 kg total carrying capacity; racks also available aftermarket for Levo 4 and Levo R platforms Weight: 27.25 kg / 60.1 lb (size S4) Display / controller: Specialized MasterMind TCU (Mastermind T3), 2.2" high-resolution colour screen, fully customisable via Specialized app, Apple Find My integration, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth |
|
WHO IS THIS FOR? |
The S-Works Levo 4 X is built for the experienced e-MTB rider who has already proven what they can do on trail and now wants to do more of it — farther, more remote, and with enough gear to stay out. This is not an entry-level purchase; it's a machine for someone comfortable on aggressive singletrack who wants to extend their range into loaded bikepacking, serious Okanagan exploration, or the practical freedom of replacing a car for everyday hauling without sacrificing trail capability. The rider who chooses this bike appreciates flagship suspension performance and a top-tier wireless drivetrain as baseline expectations — the racks are the bonus, not the brief. Our team at Fresh Air will help you find the right fit in-store at both Kelowna locations. Stop by to work with one of our experienced staff members, or call 250-763-3425. |
|
HOW TO SET UP |
As a certified Specialized dealer, our team can walk you through the Specialized app setup, personalise your motor assist modes using MicroTune, and configure the MasterMind TCU display to your preferred ride data fields — making sure everything is dialled before you leave the shop. We'll set up the FOX Factory 38 fork and GENIE rear shock to your weight and riding style, whether you're heading out loaded on the KVR or running the bike unloaded on technical Okanagan Mountain Park singletrack. If you're planning to run the rack system, we can help you set up load distribution and confirm compatibility with your bags or cargo. We also offer ongoing e-bike servicing, firmware updates, and expert year-round advice. Drop into Fresh Air Pandosy (555 Groves Ave) or Fresh Air Dilworth (1656 Dilworth Drive), or book an appointment online. |
|
GEOMETRY & SIZING |
Frame geometry and sizing details for the Specialized S-Works Levo 4 X are available on the Specialized website. Specialized offers the Levo 4 X in S-Sizing from S1 through S6 (approximately 150–203 cm rider height). Our team at Fresh Air can help you find the right frame size based on your height, inseam, and riding style — come in to either Kelowna location and we'll get you dialled in. Specialized geometry chart: https://www.specialized.com/ca/en/s-works-levo-4-x/p/4292994 (select geometry tab) |
|
TEST RIDE |

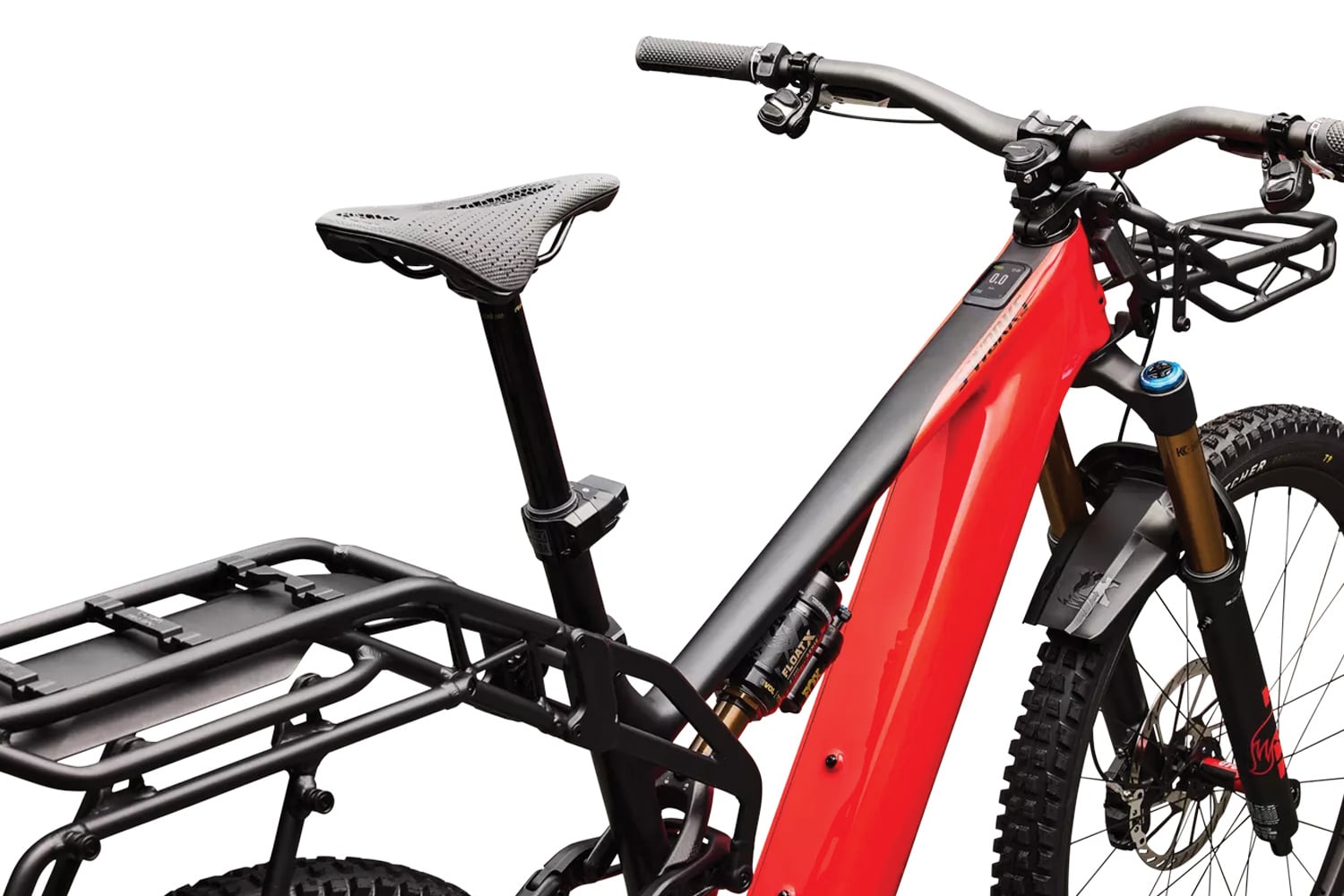

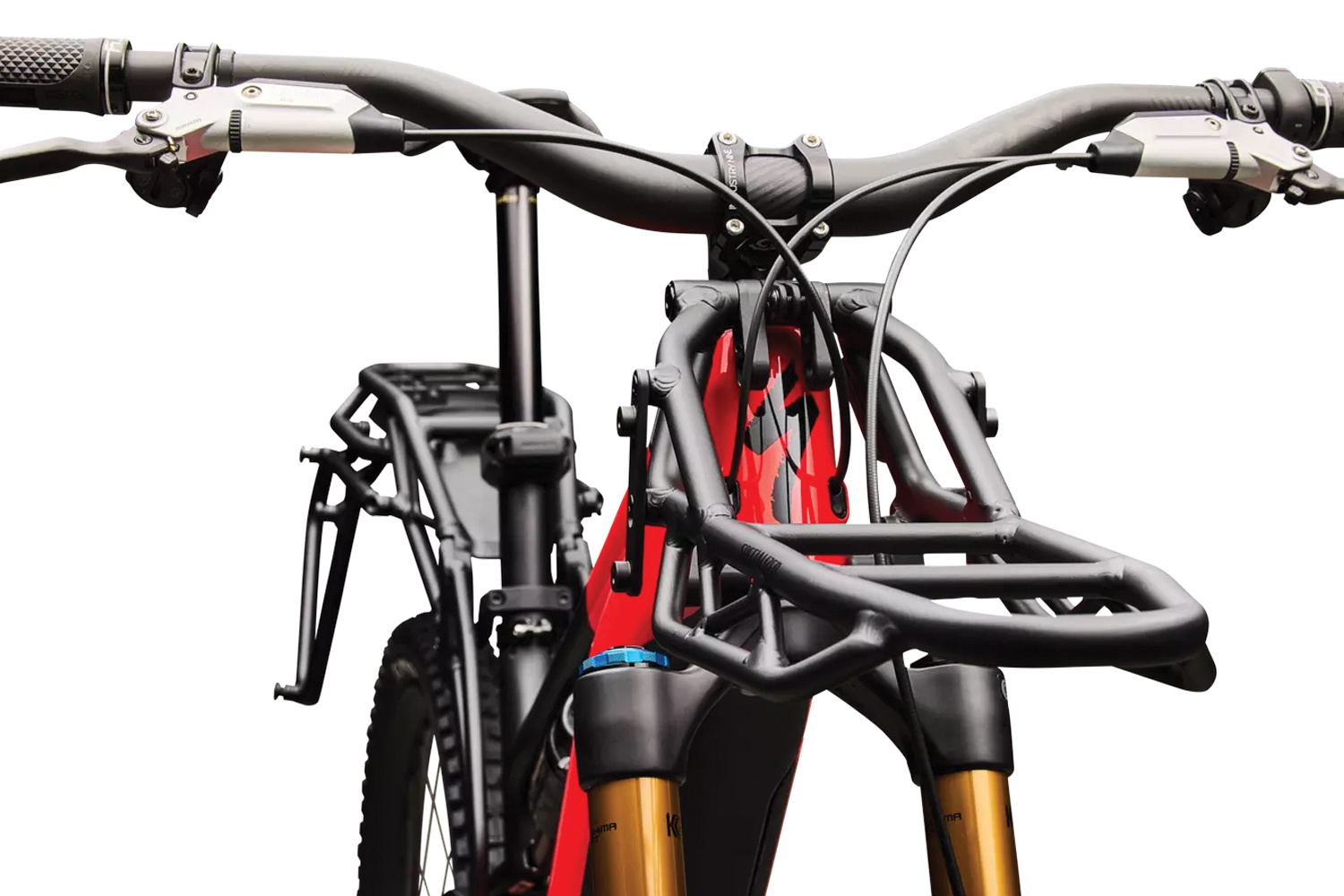

The best way to understand what the S-Works Levo 4 X is really about is to see it in person — the rack integration, the cockpit, and the overall scale of the bike tell a story that specs alone can't. Come visit us at Fresh Air Pandosy or Fresh Air Dilworth — our team is happy to walk you through the build, talk through how the racks work in practice, and help you size up for the right fit. |
|
FAQ |
Q1: What size Specialized S-Works Levo 4 X do I need? Specialized uses S-Sizing (S1–S6) rather than traditional frame sizing. As a general guide: S1 suits riders around 150–160 cm, S2 fits 157–173 cm, S3 covers 165–180 cm, S4 fits 173–188 cm, S5 suits 178–195 cm, and S6 is for riders 188–203 cm. That said, fit on an e-MTB of this calibre depends on more than height — reach, riding style, and how you plan to load the bike all play a role. See Specialized's geometry chart at the link in the geometry section above, and come into Fresh Air so we can properly size you up in person.
Q2: Is the Specialized S-Works Levo 4 X suitable for the KVR and Okanagan Rail Trail? Yes — and then some. The Levo 4 X was specifically designed for exactly this kind of riding: mixed-surface touring and loaded adventure routes. The 840 Wh battery with Range Extender compatibility gives you enormous range for multi-day KVR trips, and the 22 kg rack capacity means you can carry camping kit, photography gear, or groceries without a second thought. It handles singletrack just as capably as it handles loaded gravel, so you're not making any compromises for the versatility. Q3: How far can I ride on a single charge, and what factors affect range? Specialized confirms up to 4.75 hours of trail time on the 840 Wh battery. Real-world range varies significantly based on rider weight, total load (including cargo), terrain and elevation, temperature, and assist mode. The Levo 4 X is also compatible with an aftermarket 280 Wh Range Extender, which can bring total onboard capacity to 1,120 Wh for maximum range days. Using the Specialized app, you can customise assist modes via MicroTune to dial in the balance between power and range for each ride. |
SPECS |
|
| E BIKE |

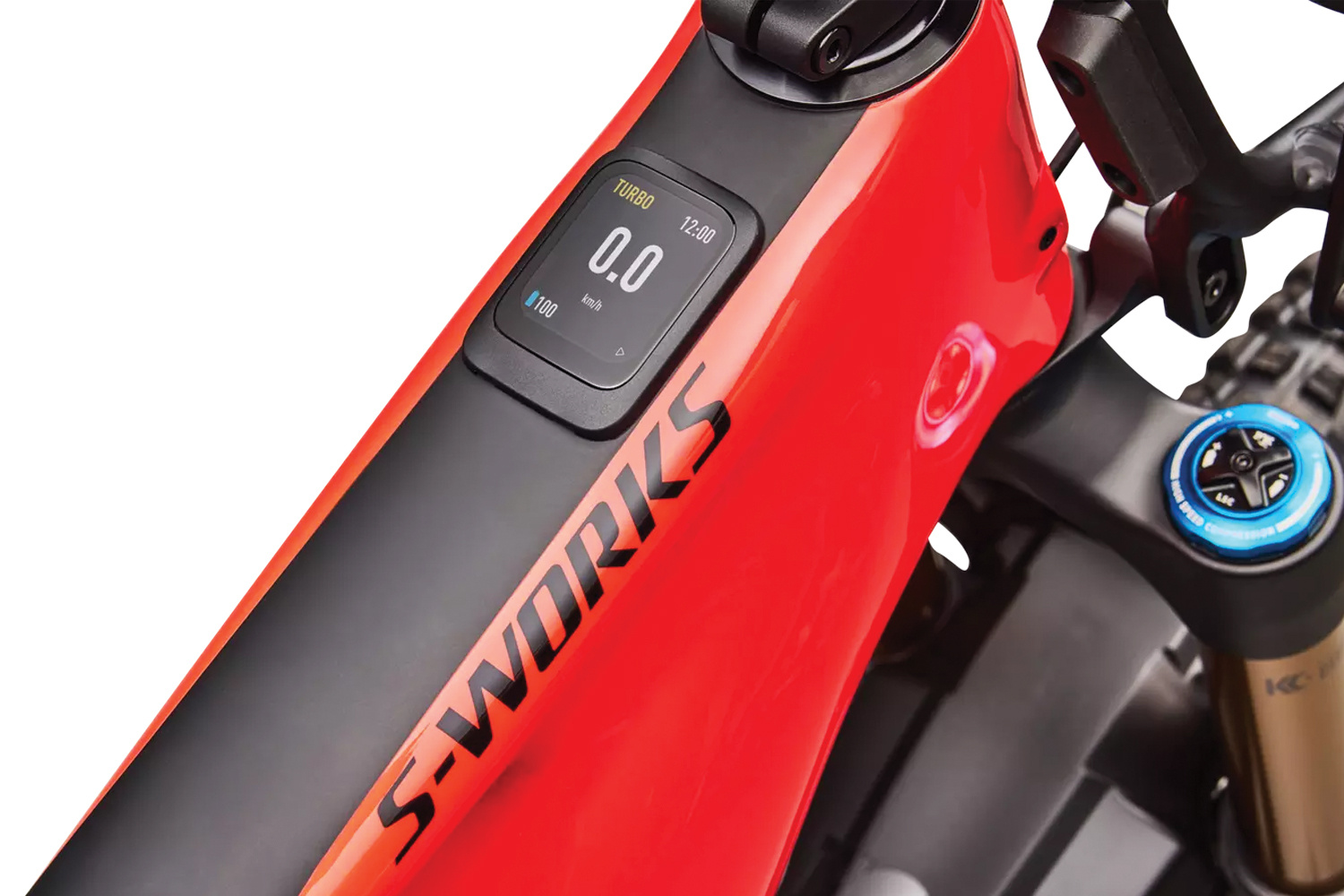

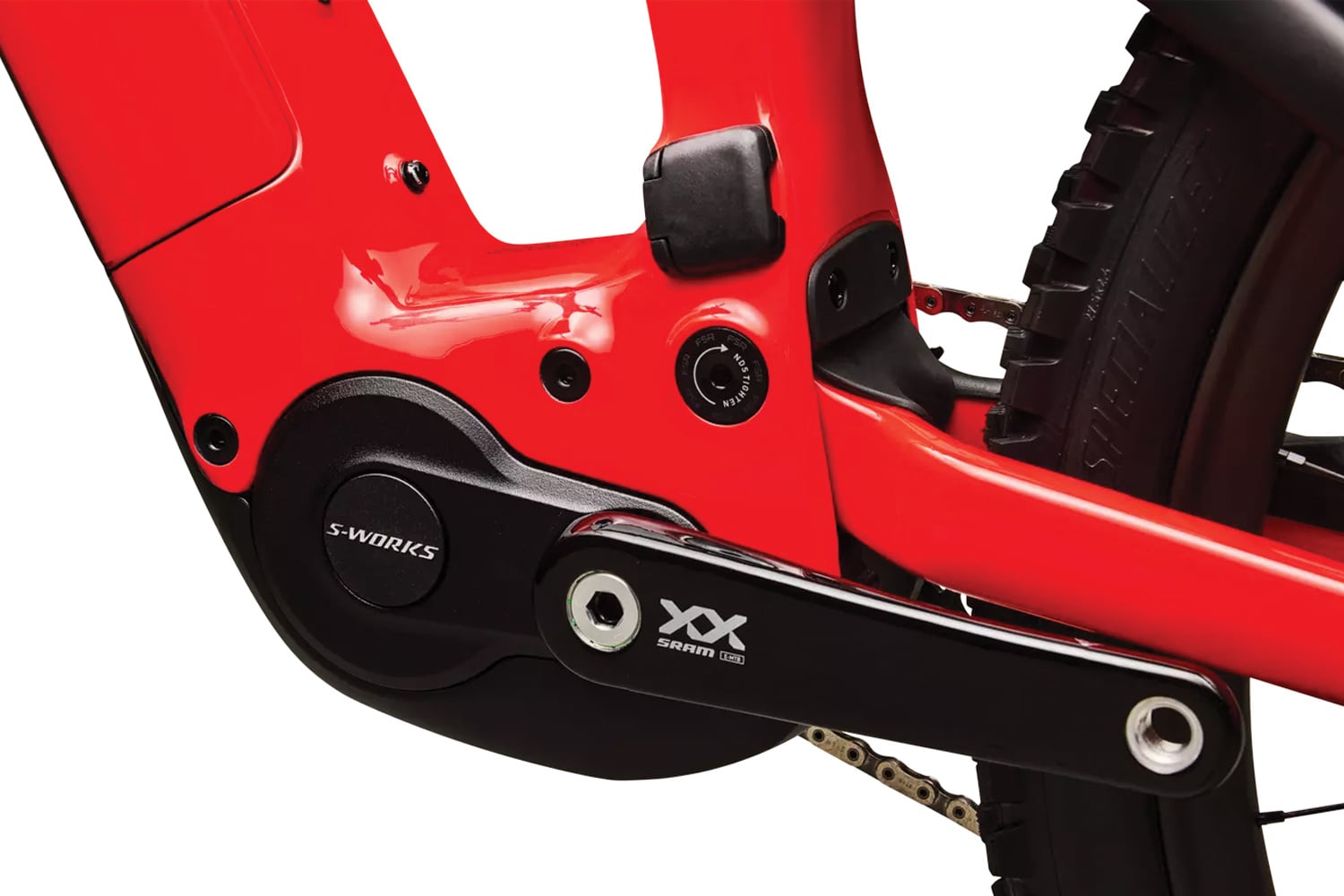

Motor: Specialized 3.1 S-Works motor, 111Nm power, 850W power Battery: 840Wh battery UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My Charger: Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80% |
| FRAMESET |
|
| SUSPENSION |
|
| BRAKES |
|
| DRIVETRAIN |
Shift Levers: SRAM AXS Pod Ultimate with Discrete Clamp Rear Derailleur: SRAM XX Eagle Transmission Derailleur Cassette: SRAM XX Transmission, XS 1297, 10-52t Chain: SRAM XX, T-Type Crankset: SRAM XX Carbon crank, 160mm, ISIS interface Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel |
| WHEELS & TIRES |
|
| COCKPIT |
Stem: Industry 9 A35 Mountain stem, 35mm clamp, 40mm length Handlebars: RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise Grips: Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black Saddle: Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm SeatPost: RockShox Reverb AXS, 34.9mm, S2: 125mm, S3: 150mm, S4-6: 200mm |
| ACCESSORIES |
SWAT: SWAT Internal downtube storage |
| WEIGHT |
Weight: 27.25 kg (60 lb, 1.2 oz) Weight Size: S4 |
