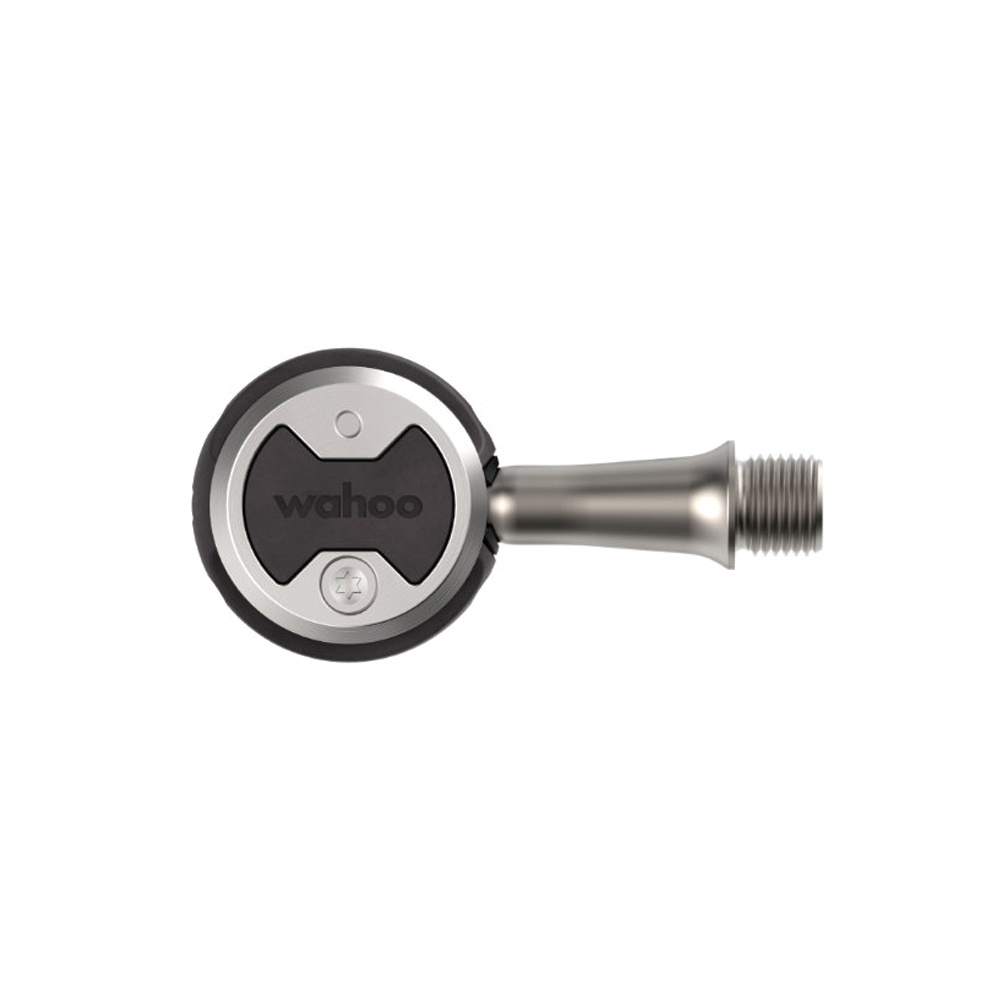

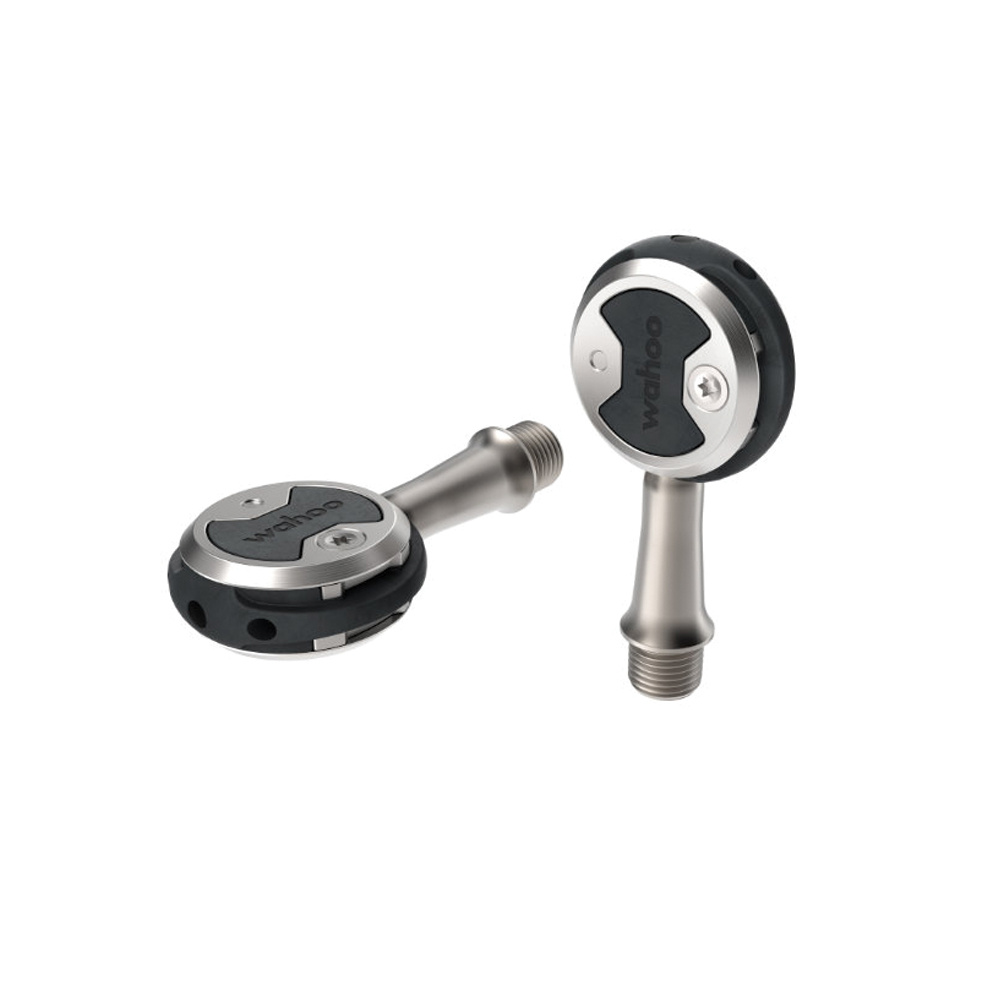

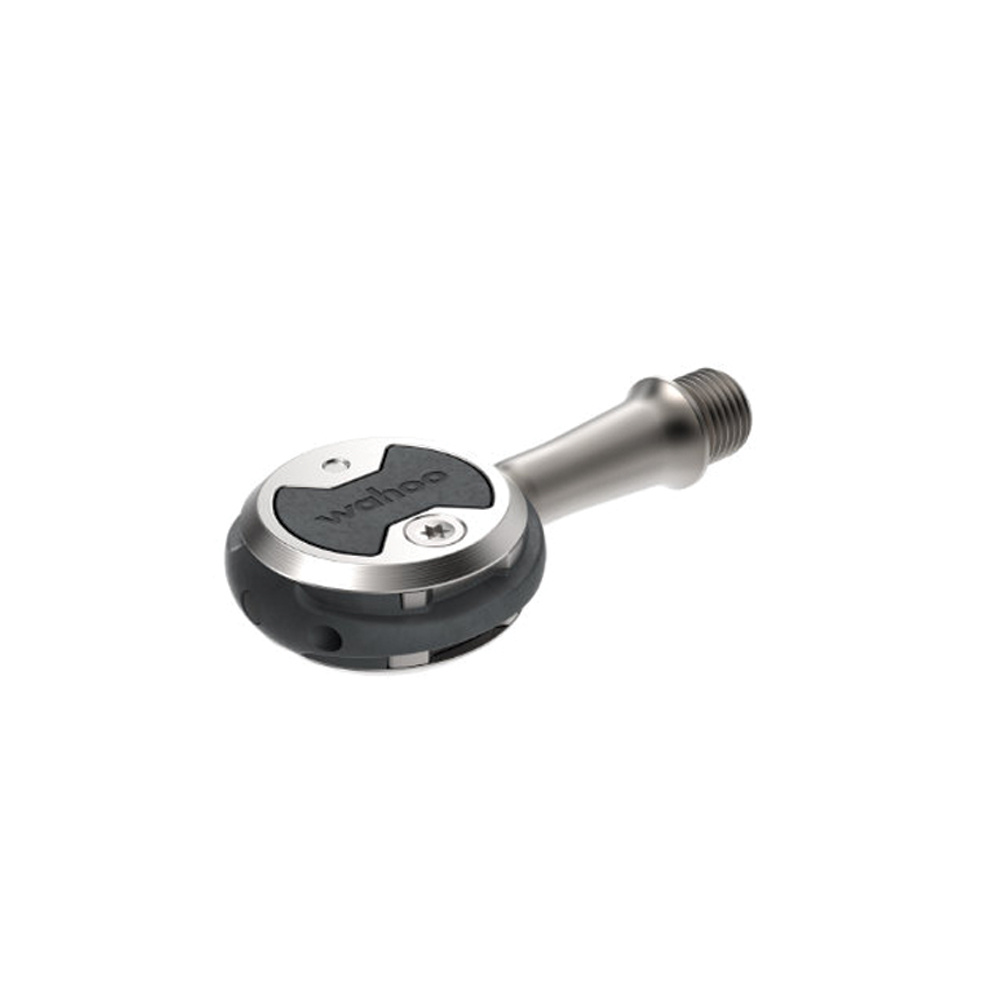

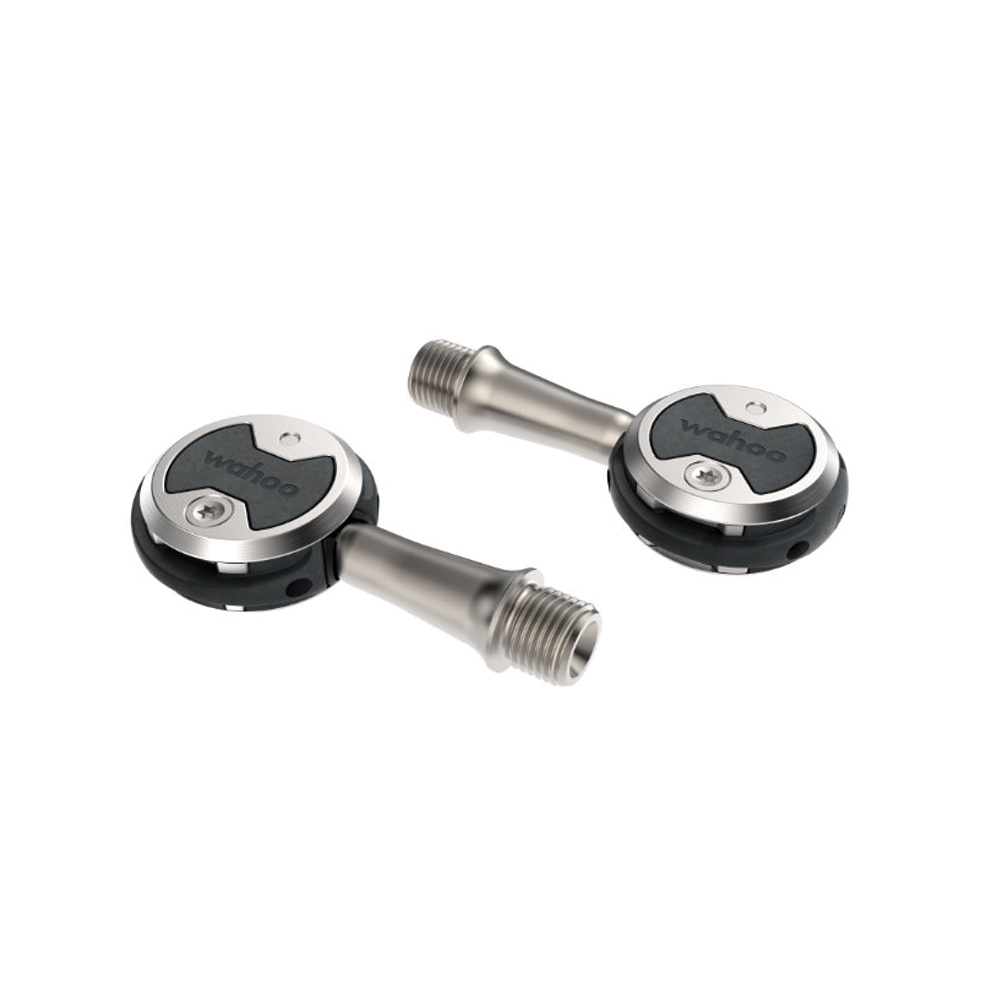

Wahoo Speedplay Nano Titanium 53mm — Road Bike Pedal

Q1: How do I find the right size Speedplay Nano?
The Nano comes in one size with a 53 mm Q-factor. The key sizing consideration is rider weight: the Nano has a maximum rider weight of 82 kg (180 lb). If you’re above that, or if you need a wider stance, ask our staff about the Speedplay Zero, which has no weight limit and offers 56, 59 and 65 mm spindle options through authorized dealers.

Q2: Is the Speedplay Nano compatible with my shoes and cleats?

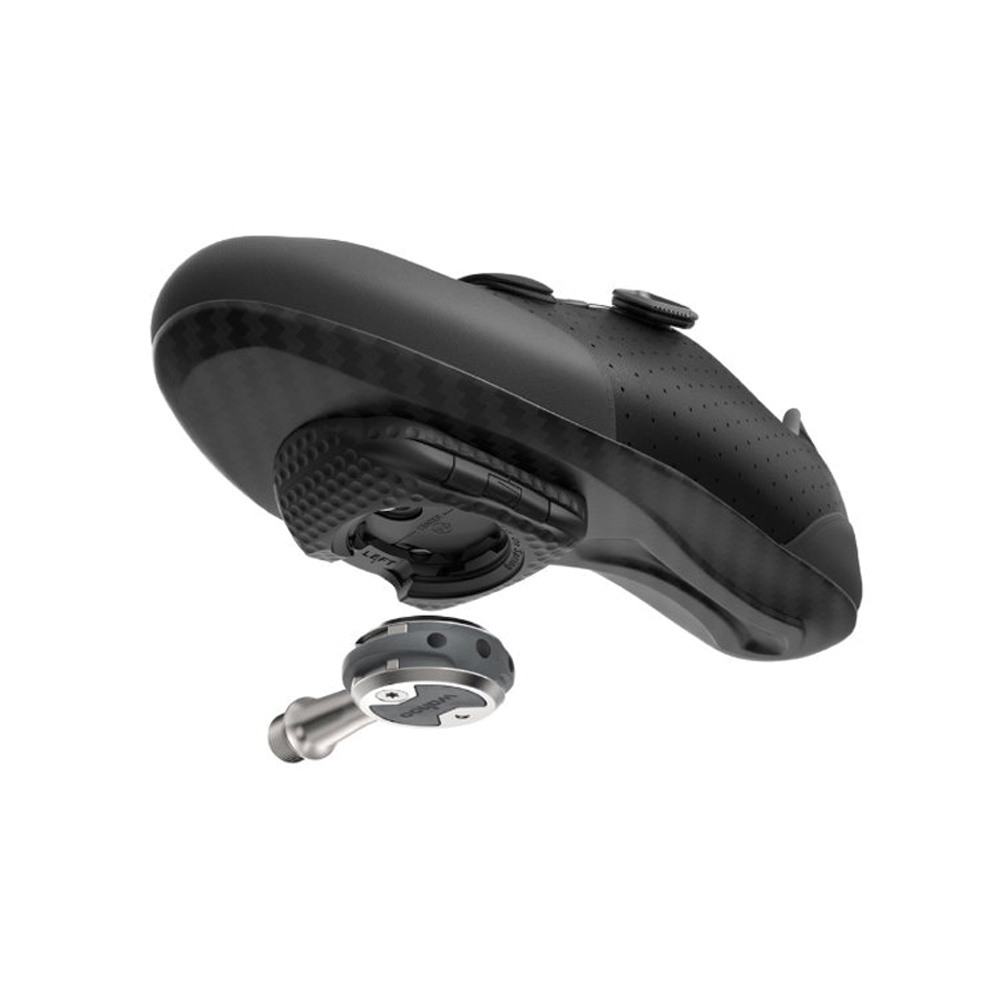

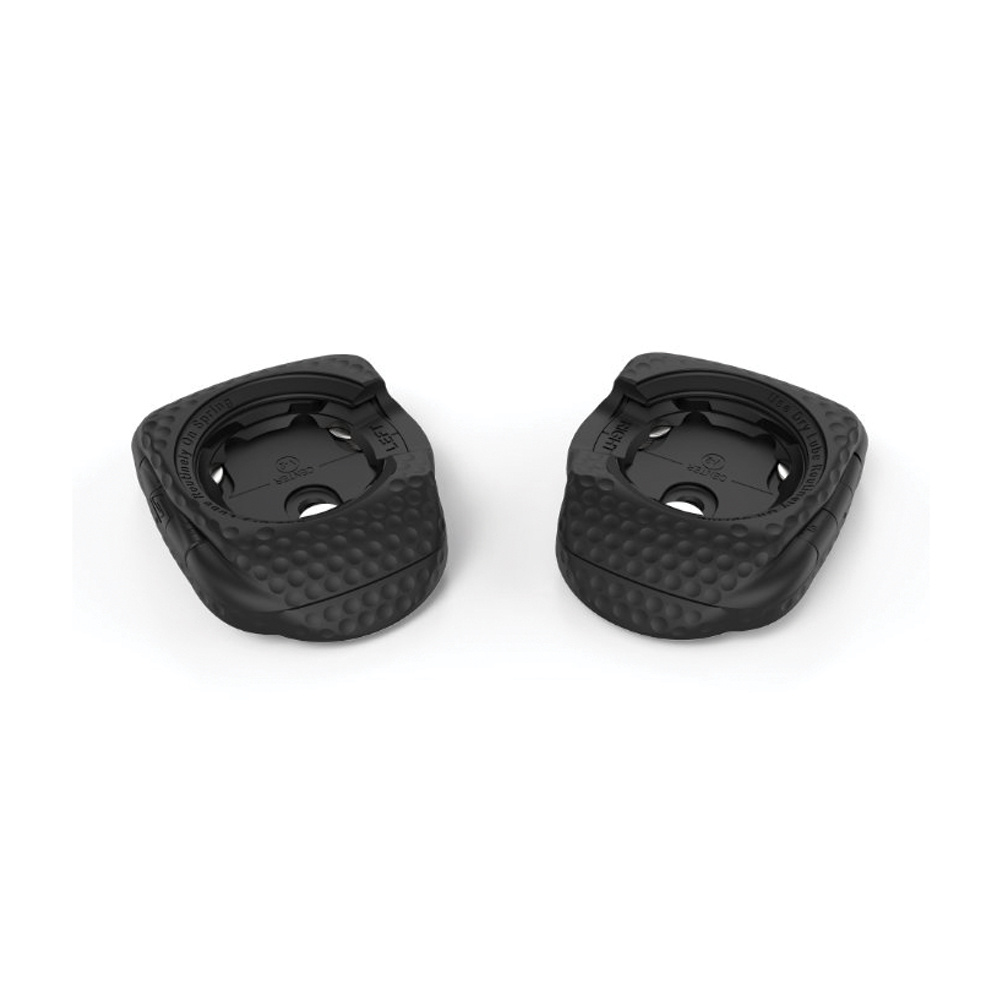

The Nano fits standard 3-hole road shoes, and a 4-hole adaptor plate is available separately. It comes with Standard Tension Cleats and is also compatible with Speedplay Easy Tension Cleats, sold separately, for a lighter release. Speedplay pedals are designed for road cycling only. Wahoo recommends keeping your cleats clean before and during every ride, since off-road riding can damage the cleats or lodge debris inside them.

Q3: What’s the difference between the Speedplay Nano and the Speedplay Zero?
Both share the same dual-sided platform, 3-axis adjustable cleat, 11.5 mm stack height, 0–15° float range and included Standard Tension Cleats. The Nano uses a titanium spindle and carbon composite body to bring weight down to 168 g per pair, but it has an 82 kg (180 lb) rider weight limit. The Zero uses a stainless steel spindle and Grivory body at 222 g per pair, with no rider weight limit and optional longer spindles.

Weight: 168 g per pair

Stack Height: 11.5 mm (3 hole)

Q Factor: 53 mm

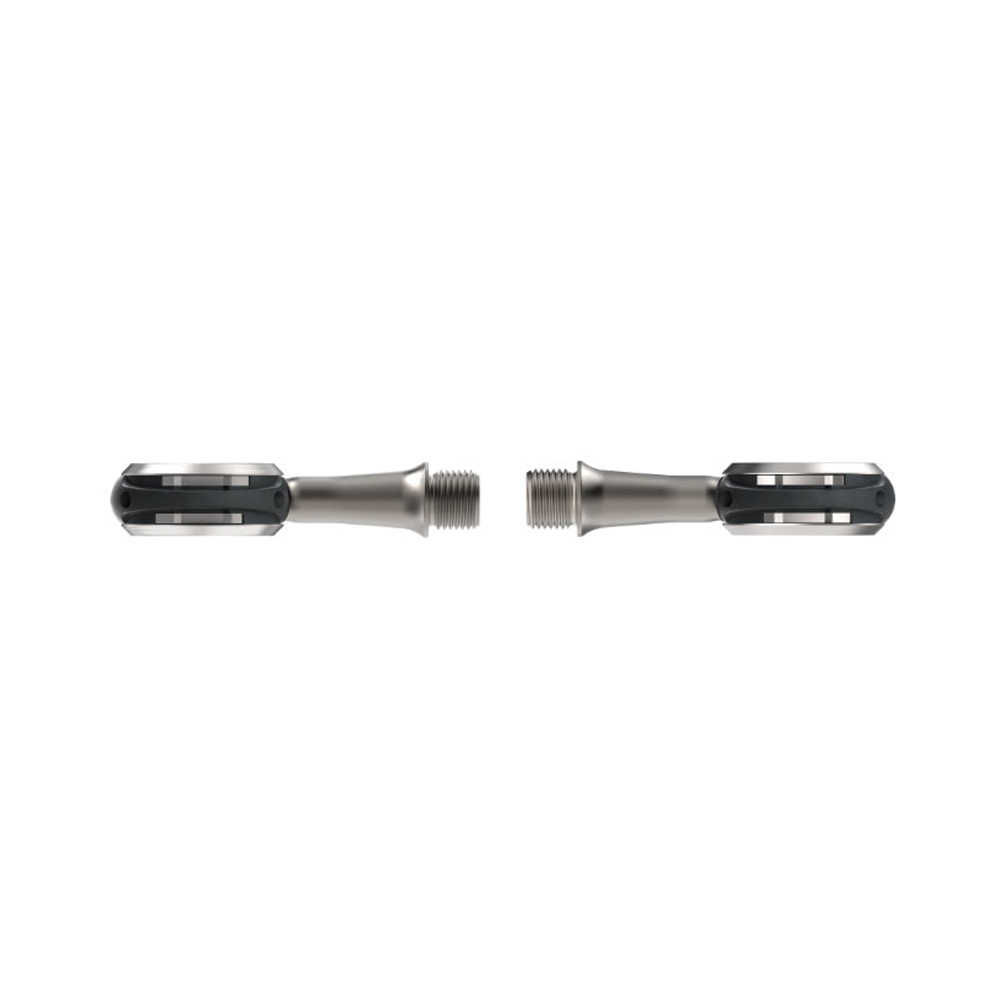

Spindle Material: Titanium

Body Material: Carbon Composite

Bearing Type: triple sealed cartridge and needle bearings

Cornering Clearance: 39°

Maximum Rider Weight: 180 lb / 82 kg

Cleat Float: adjustable from 0° to 15°

Release Angle: micro adjustable from 0° to 7.5°
