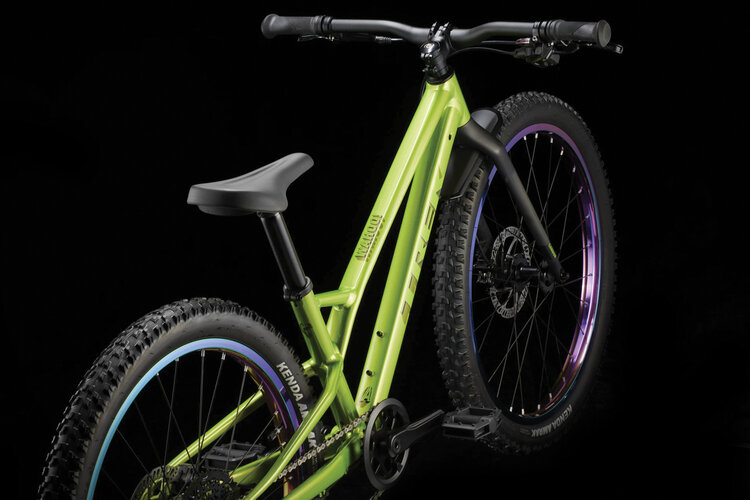

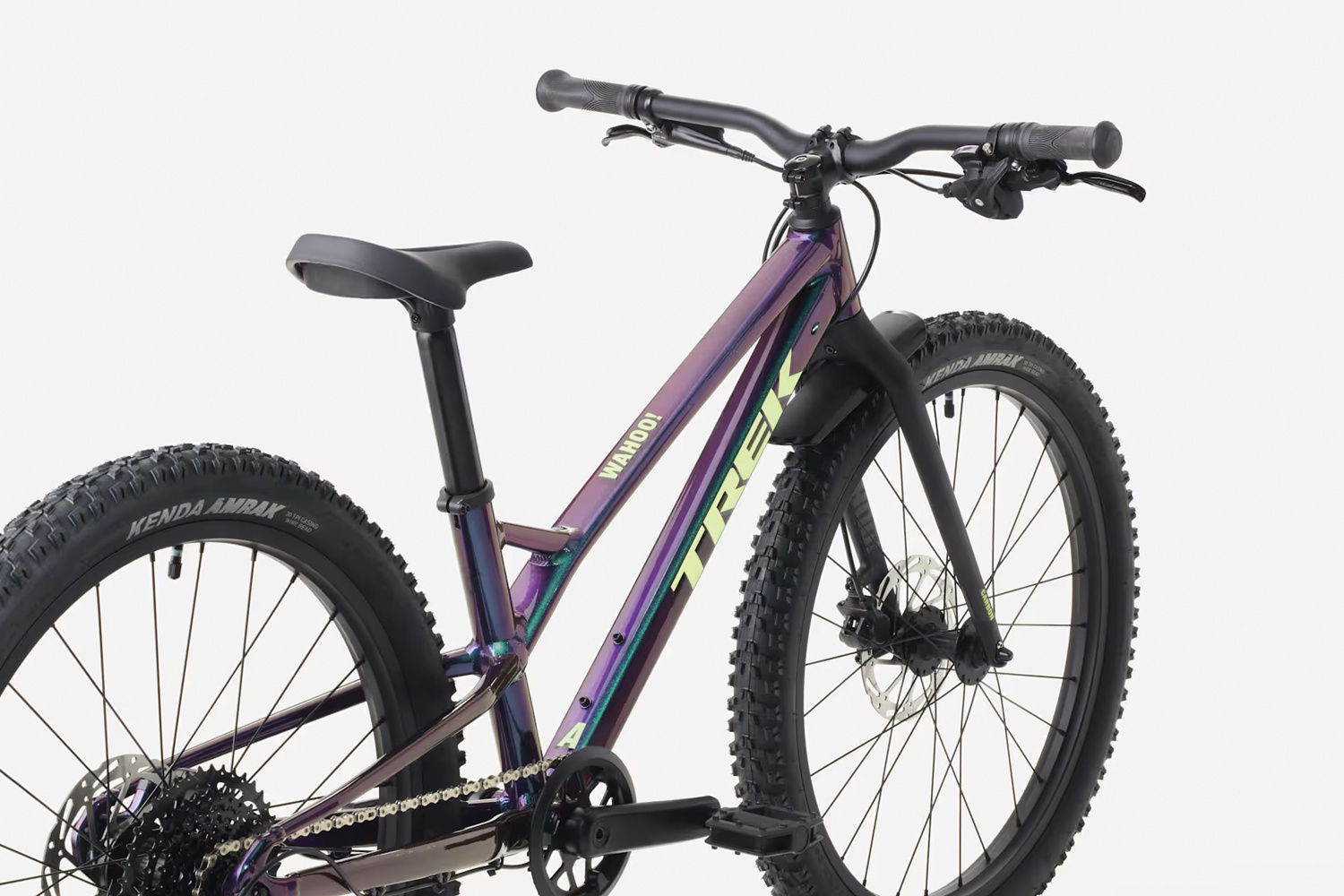

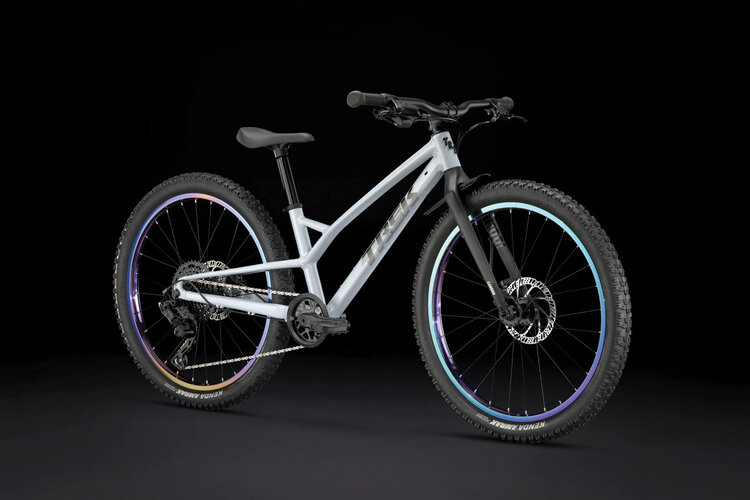

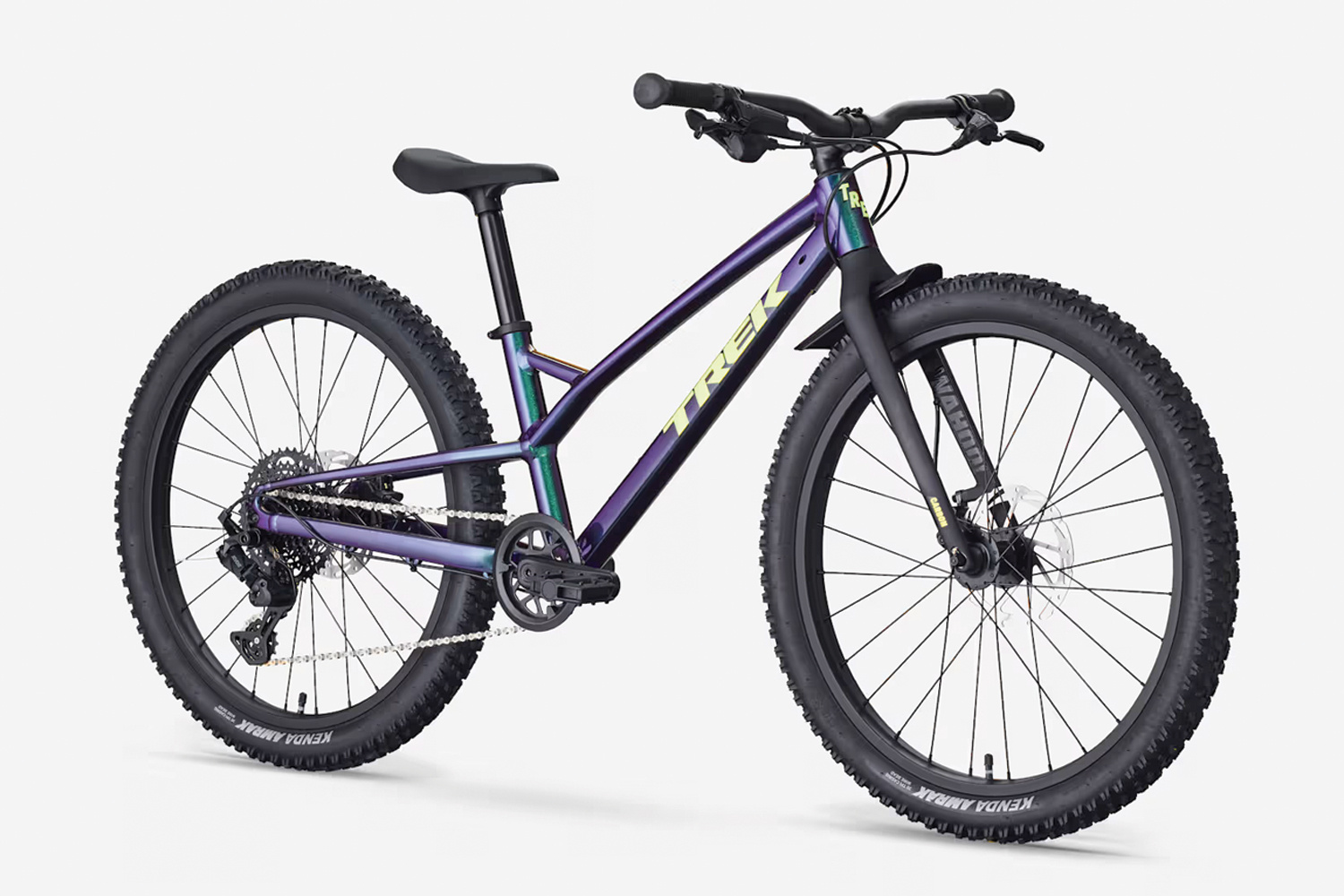

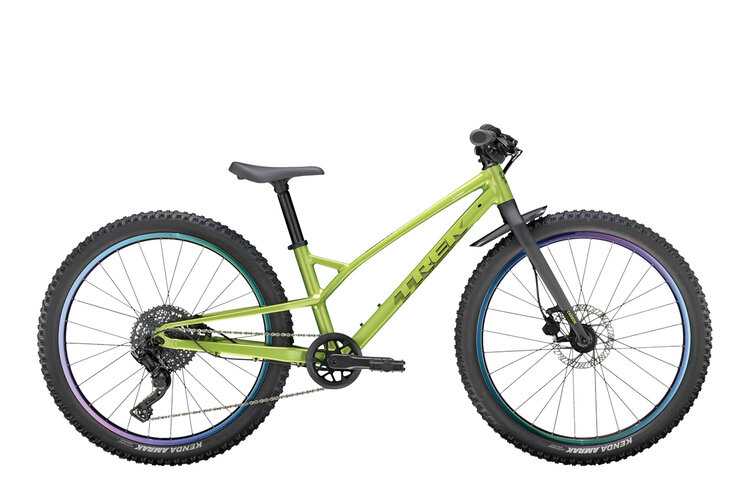

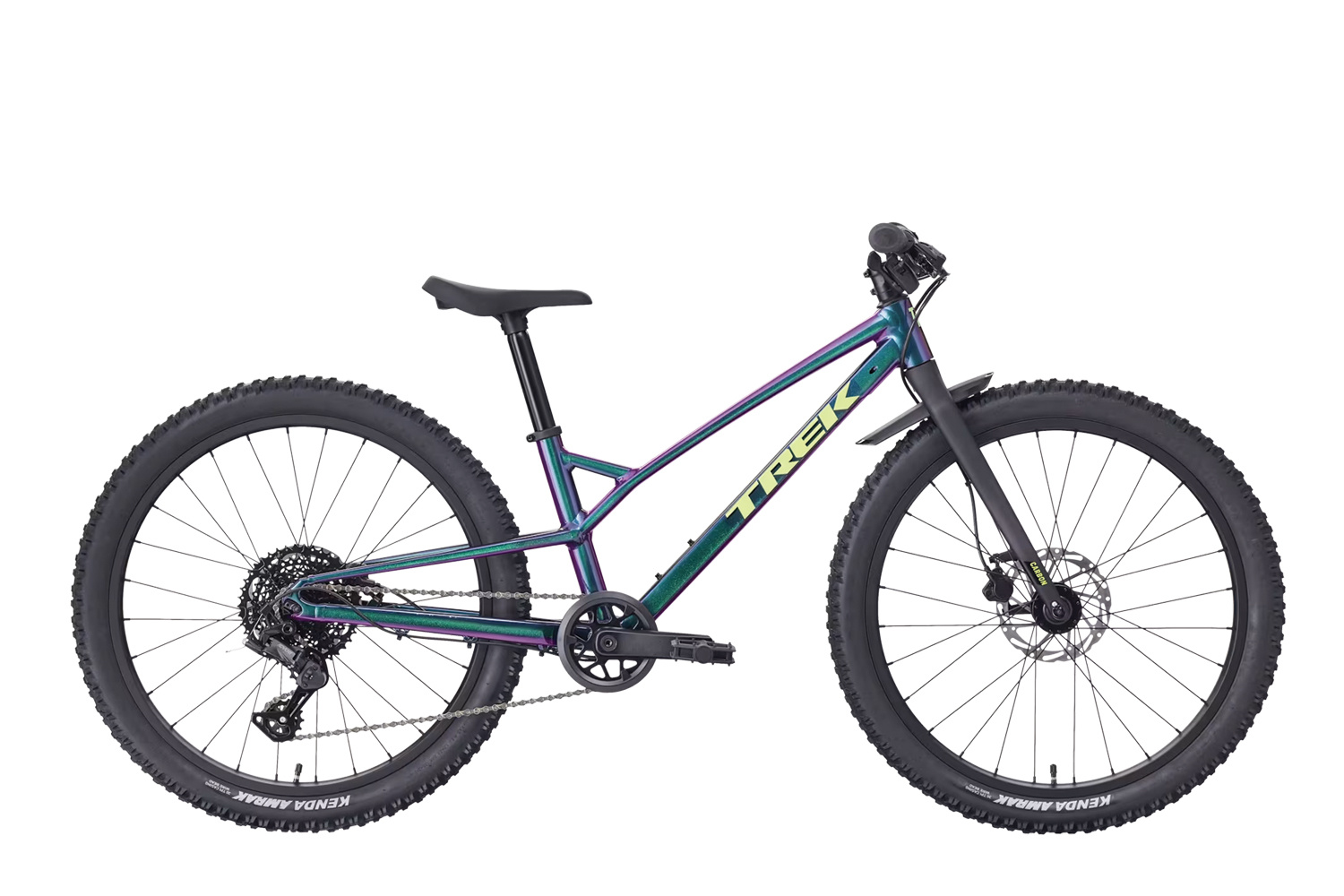

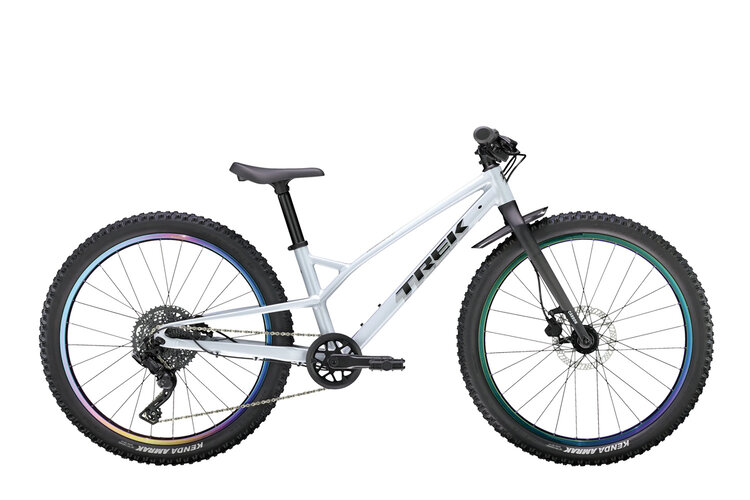

Trek Wahoo 24 Trail

SKU: 5294515
Available in store: Check availability

Available in store

Close
1 in stock
  • Overview
  • Wahoo 24 Trail is a light and tough kids' bike that's ready to roll off-road. Its sturdy aluminum frame is easy to maneuver as they weave their way down the trail, but rugged enough to handle the tough stuff.

Product details

This bike is available for in-store pickup or local delivery only

Wahoo 24 Trail is a light and tough kids' bike that's ready to roll off-road. Its sturdy aluminum frame is easy to maneuver as they weave their way down the trail, but rugged enough to handle the tough stuff. A 9-speed 1x drivetrain gives them plenty of gears for pedaling up steep trails, and disc brakes provide next-level stopping power to slow their roll or help them stop on a dime on the way back down. Perfect for riders between 51-59" tall.





IT'S RIGHT FOR YOU IF

You're ready to take your kiddo off-road and want a kids' bike that's up for the task. You want the added grip of big, knobby tires, plenty of gears to keep them spinning up hills, and the reliable stopping power of hydraulic disc brakes.

THE TECH YOU GET

An Alpha Silver Aluminum frame with 24" wheels and wide 2.4" knobby tires that bite into dirt and give plenty of traction. Tons of gears to pick from with a 9-speed 1x microSHIFT drivetrain, and serious stopping power from hydraulic disc brakes.

THE FINAL WORD

Wahoo 24 Trail is a proper off-road ride in a pint-sized package. It's a kids' bike for little rippers who can't wait to cut loose, and want a bike that's light, maneuverable, and darn tough, too. Its hydraulic disc brakes give your kiddo a serious advantage while they progress on the trail.

WHY YOU'LL LOVE IT

Wahoo's aluminum frame is light enough for easy handling and tough enough to roll through the rough stuff

Hydraulic disc brakes give them the same serious stopping power you'll find on adult mountain bikes

A 9-speed drivetrain gives your kiddo plenty of gears to shift through, but isn't too much to handle

Wide and knobby 2.4in tires provide heaps of traction for confidence on the trail

Trek kids' bikes are designed and assembled by people who know bikes — and backed by a lifetime warranty

SPECS



FRAMESET

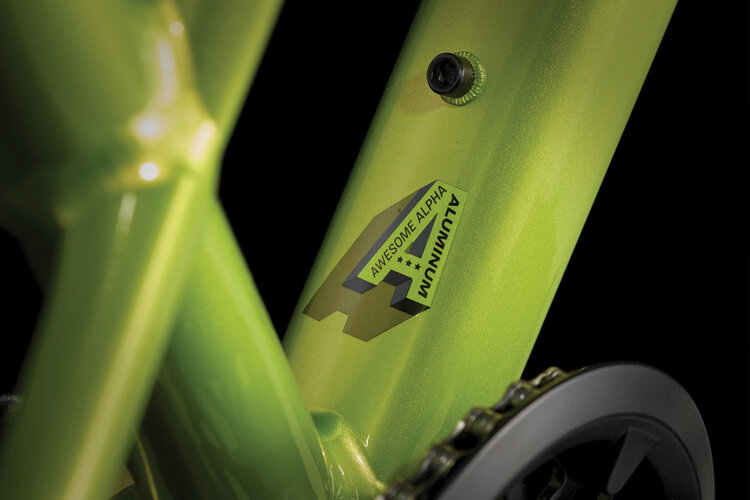

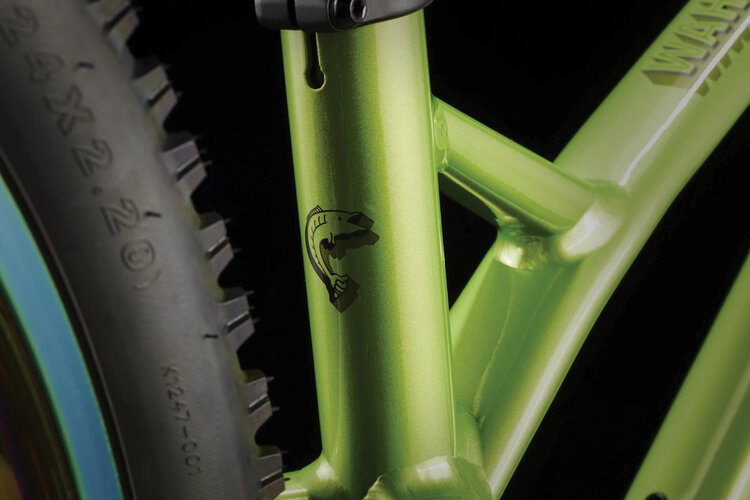

Frame: Alpha Silver Aluminum, 24"

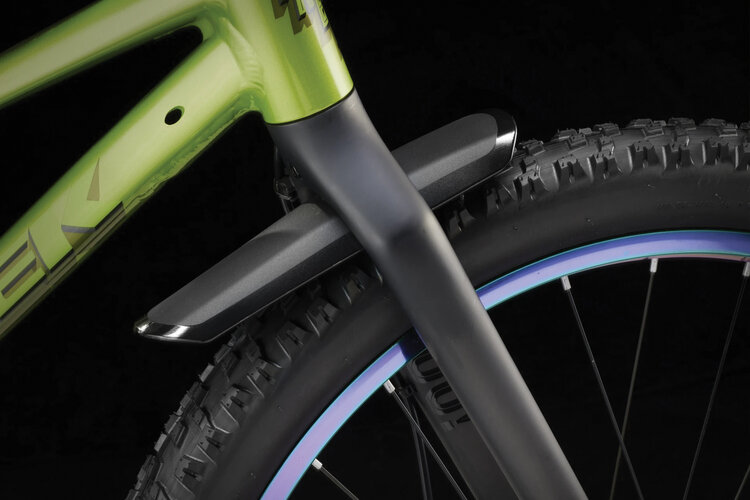

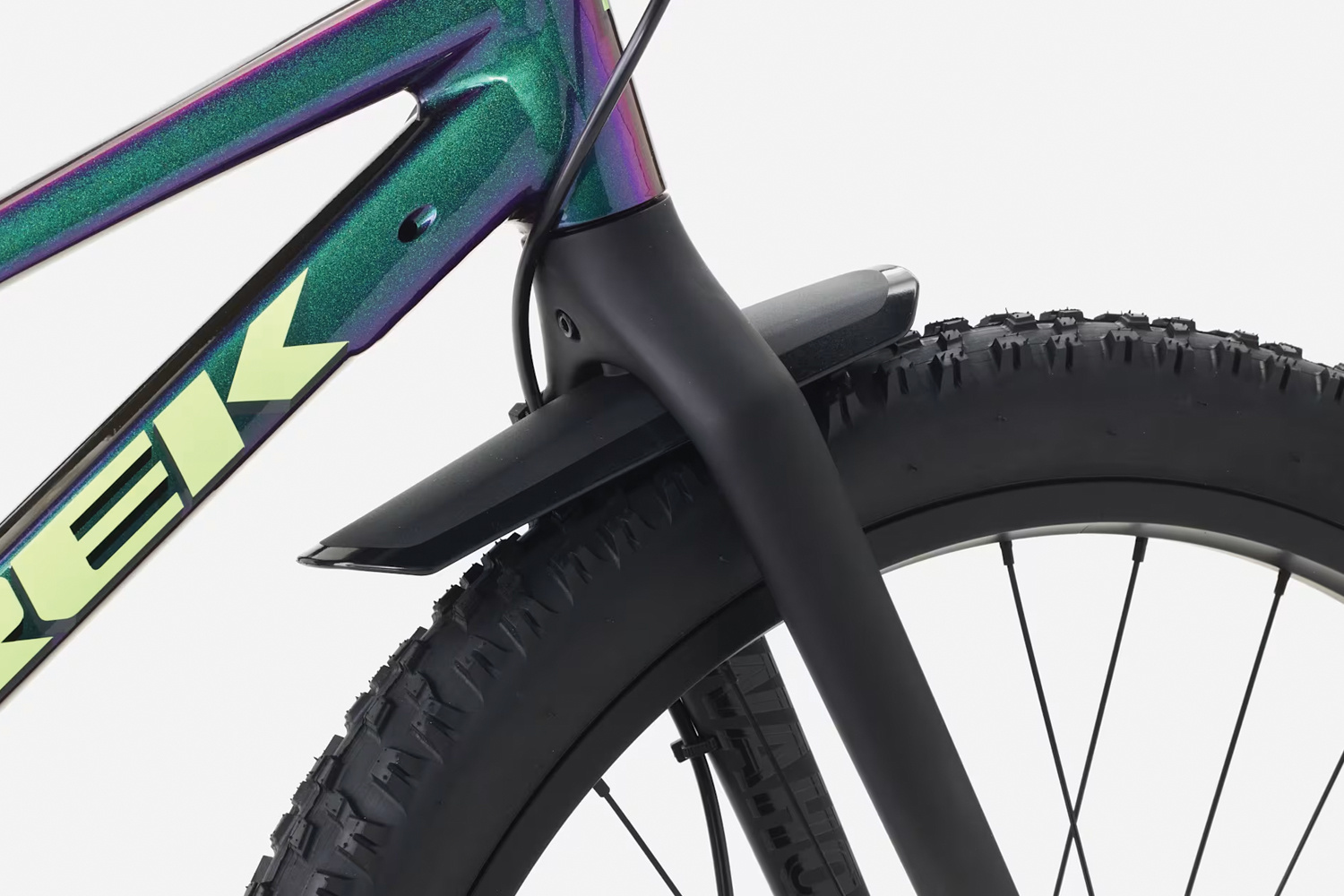

Fork:  Wahoo 24'' carbon, post mount disc brake, ThruSkew 5mm QR

WHEELS

Hub Front: Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew

Skewer Front: 135x5mm bolt-on

Hub Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR

Skewer Rear: 169x5mm bolt-on

Spokes: 14g stainless steel, black

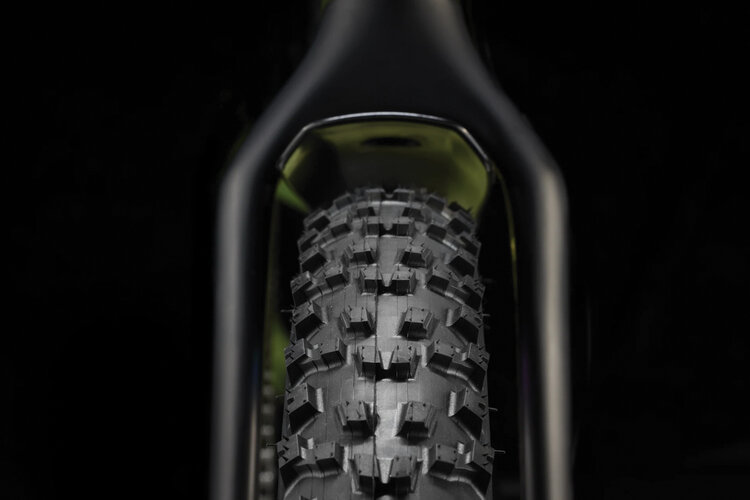

Tire:  Kenda Amrak, 30 tpi, 24x2.20''

Max Tire Size: 2.40" with or without fenders

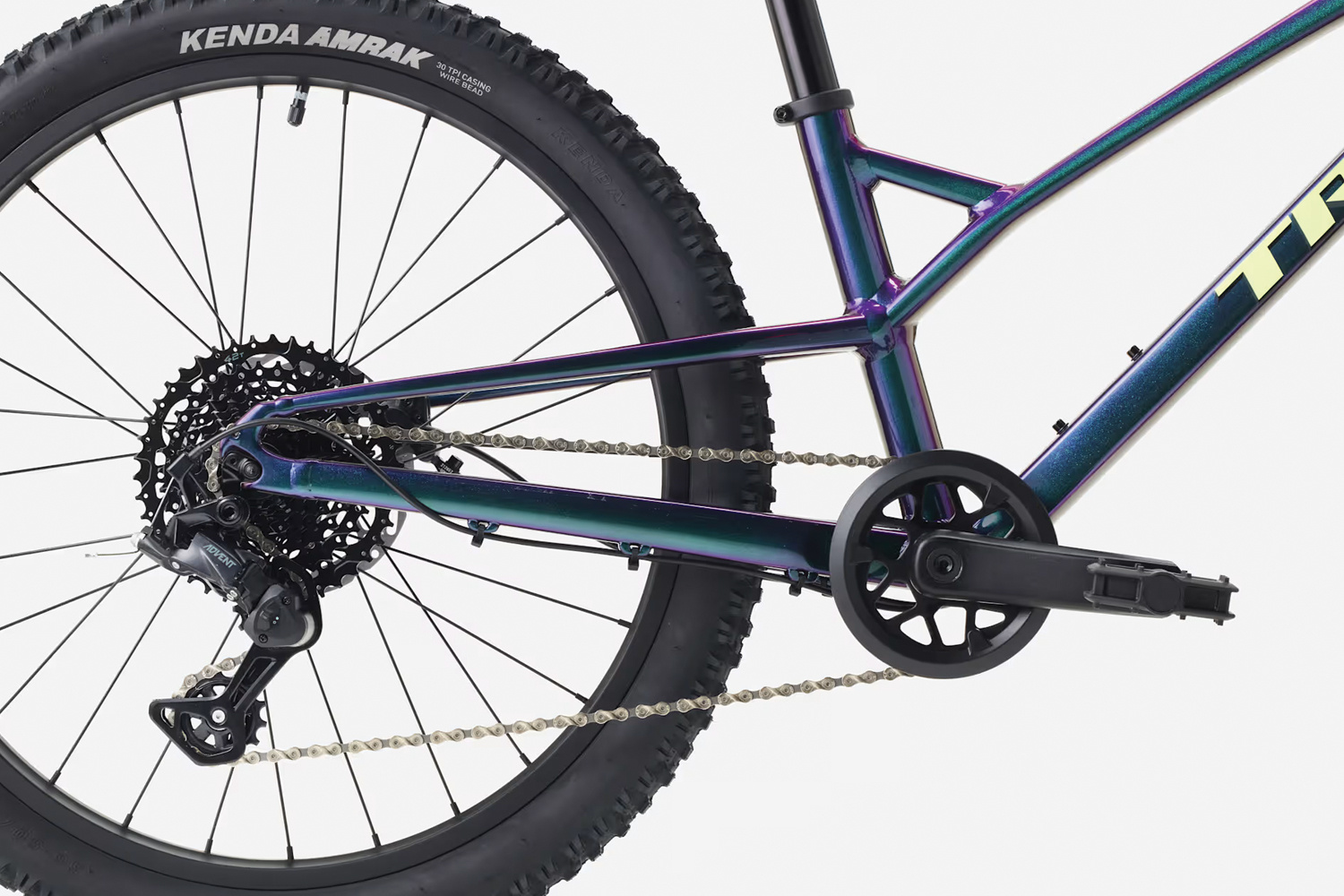

DRIVETRAIN

Shifter: microSHIFT Advent Quick Trigger Pro SL-M6295, 9 speed

Rear Derailleur: microSHIFT Advent RD-M6195M, 40-46T max cog

Crank: Alloy, 30T steel chain ring w/ guard. 127mm length

Bottom Bracket: Sealed cartridge, 68mm

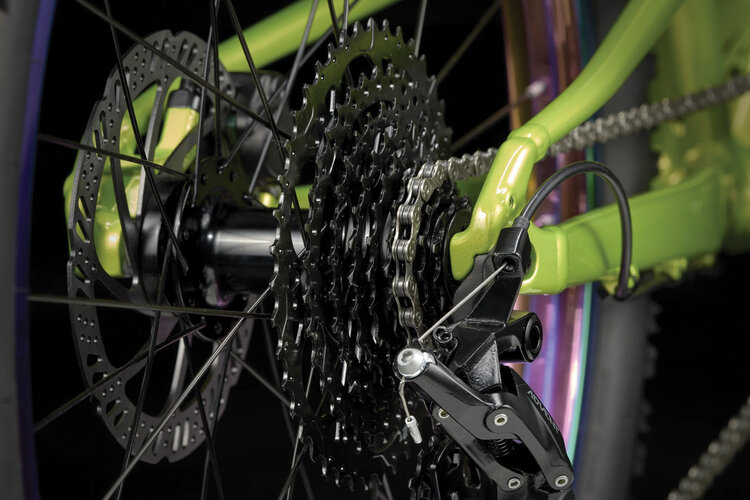

Cassette: microSHIFT Advent H093, 11-42, 9 speed

Chain: KMC X9

Pedal: VP-225 nylon platform

COMPONENTS

Saddle: Kids' padded, integrated seatpost, Blendr light mount, 31.6x270mm

Handlebar: Bontrager alloy, 31.8mm clamp, 20mm rise, 600mm width

Grips: Kids' grip, 110mm width

Stem: Bontrager alloy, 31.8mm clamp, 6 degree, 45mm length

Headset: Integrated, sealed cartridge bearings

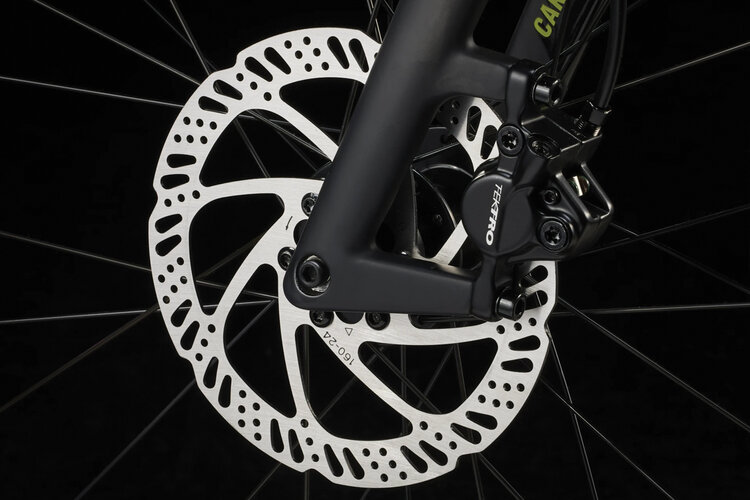

Brake: Tektro HD-J285 hydraulic disc, short reach

Brake Rotor: Tektro, 6-bolt, 160mm

Rotor Size: Max brake rotor sizes: 160mm front & rear

WEIGHT

Weight: 10.70 kg / 23.59 lbs

Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 175 pounds (80 kg).
