Trek Marlin+ 6

•••••
Available in store: Check availability

Available in store

Close
C$3,599.99
Out of stock
Out of stock
  • Overview
    • Power up your rides with the Trek Marlin+ 6 e-MTB. Featuring Bosch Active Line Plus assist, 120mm suspension, and Shimano CUES reliability. Available at Fresh Air Kelowna.

Product details

IN STORE PICKUP OR LOCAL DELIVERY ONLY

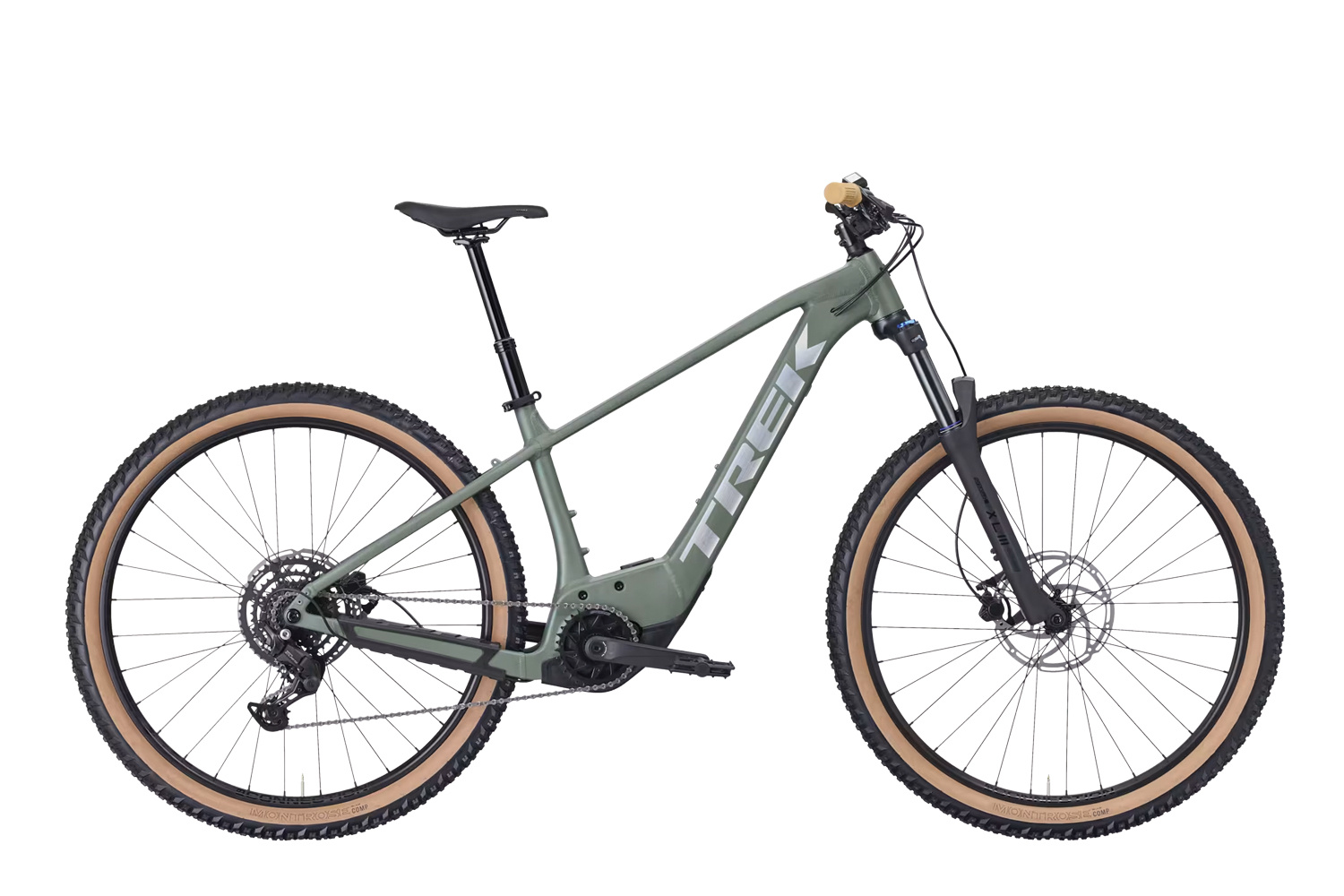

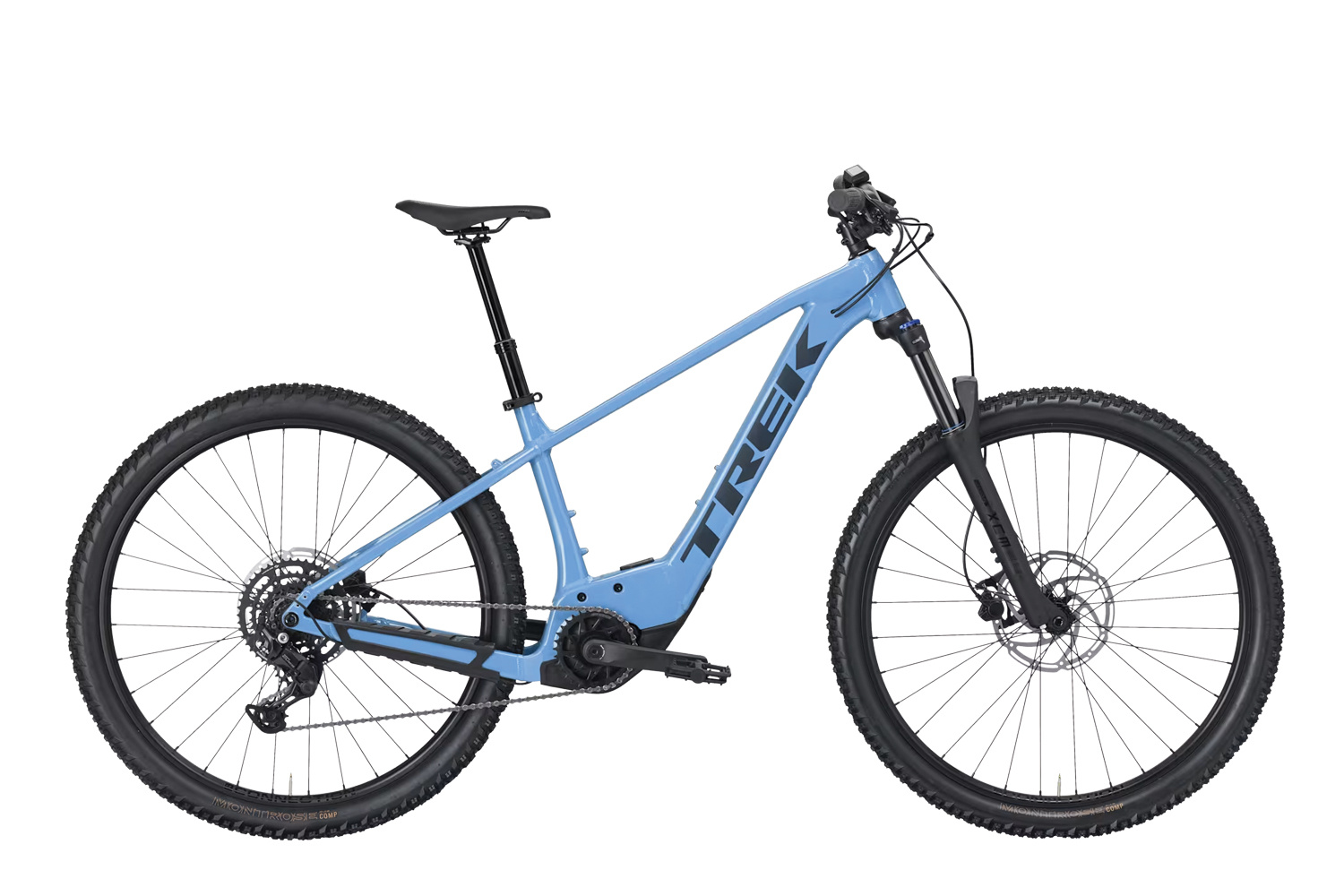

Trek Marlin+ 6 – Affordable Power for the Trail

The Trek Marlin+ 6 brings trail-ready fun with the added boost of Bosch’s Active Line Plus drive system, delivering smooth and natural pedal assist for every adventure. Built on the same confident geometry as the classic Marlin, this e-MTB feels stable and playful on any terrain. A 120mm suspension fork keeps you in control over rocks, roots, and rough paths, while the durable 9-speed Shimano CUES drivetrain offers reliable shifting mile after mile. Whether you’re climbing steeper trails, cruising forest paths, or rolling through town, the Marlin+ 6 makes every ride easier and more fun—all at an accessible price point.





SPECS


FRAMESET

*Frame: Size: XS Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle

Size: S , M , L , XL Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle

*Fork: Size: XS SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel

Size: S , M , L , XL SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel
WHEELS

Hub Front: Shimano TC500 alloy, centerlock, 110x15mm thru axle

Hub Rear: Shimano TC500 alloy, centerlock, 148x12mm thru axle

Skewer Rear: Bontrager Switch thru axle, removable lever

Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve

*Tire: Size: XS , S Bontrager Montrose comp, Tubeless Ready, wire bead, 30 tpi, 27.5x2.40"

Size: XS , S Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''

Size: M , L , XL Bontrager Montrose comp, Tubeless Ready, wire bead, 30 tpi, 29x2.40"

Size: M , L , XL Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''

Max Tire Size: Frame: 29x2.60" (XS: 27.6x2.60"), Fork: See manufacturer
E SYSTEM

Battery: Bosch CompactTube 400Wh

Charger: Bosch standard 2A, 110V, smart system

Computer: Bosch Purion 200

Motor: Bosch Active Line Plus, 50 Nm
DRIVETRAIN

Shifter: Shimano U4000, 9 speed

Rear Derailleur: Shimano CUES U4000

Crank: FSA CK-220, 165mm length

Chain Ring: FSA, 32T, steel

Cassette: Shimano LINKGLIDE LG300, 11-46, 9 speed

Chain: Shimano LG500

Pedal: VP-536 nylon platform

Max Chainring Size: 1x: 36T, min 32T
COMPONENTS

Saddle: Bontrager Verse P3, steel rails

*Seatpost: Size: XS , S TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length

Size: M , L TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length

Size: XL TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length

Handlebar: Size: XS , S Bontrager alloy, 31.8mm, 15mm rise, 720mm width

Size: M , L , XL Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width

Grips: Trek Line Comp, nylon lock-on

*Stem: Size: XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm length

Size: M , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length

Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length

Headset: Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom

Brake Rotor: Tektro, centerlock, 203mm

Break Set: Tektro HD-M275 hydraulic disc

Rotor Size:  Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
 WEIGHT

Weight: M - 22.90 kg / 50.49 lbs (with tubes)

Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
