Trek Madone SL 5 Gen 8

•••••
Available in store: Check availability

Available in store

Close
C$4,799.99
Out of stock
Out of stock
  • Overview
    • Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8.

Product details

IN STORE PICKUP OR LOCAL DELIVERY ONLY

Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. It's built to race, with geometry that keeps you quick on the sprints yet in control on fast descents. A Shimano 105 groupset keeps the price down while still delivering clean mechanical shifting you can trust.





IT'S RIGHT FOR YOU IF

You want a featherweight road race bike without top-end race pricing. You're up for racing, club rides, or solo spins up winding canyons, and don't want to compromise between climbing efficiency and aerodynamics. You're happy with more economical components that help you get on your dream bike faster.

THE TECH YOU GET

An ultra-light OCLV 500 Carbon frame with aero tubing and IsoFlow comfort technology. A 2x12 Shimano 105 groupset that delivers clean mechanical shifts without the faff of electronic groupsets. Tubeless wheels that help fight punctures while reducing rolling resistance, and hydraulic disc brakes.

THE FINAL WORD

Madone SL 5 Gen 8 is the perfect bike for someone looking for superbike performance at a lower price point. It offers the same frame tech as its SLR sibling, like aero tube shaping and lightweight IsoFlow comfort tech, but with a more economical build that leaves budget to spare for race entry fees and bike trips.

WHY YOU'LL LOVE IT

Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike

A more economical 500 Series OCLV Carbon frame and new tube shaping shave weight where it matters most to help you fly up climbs

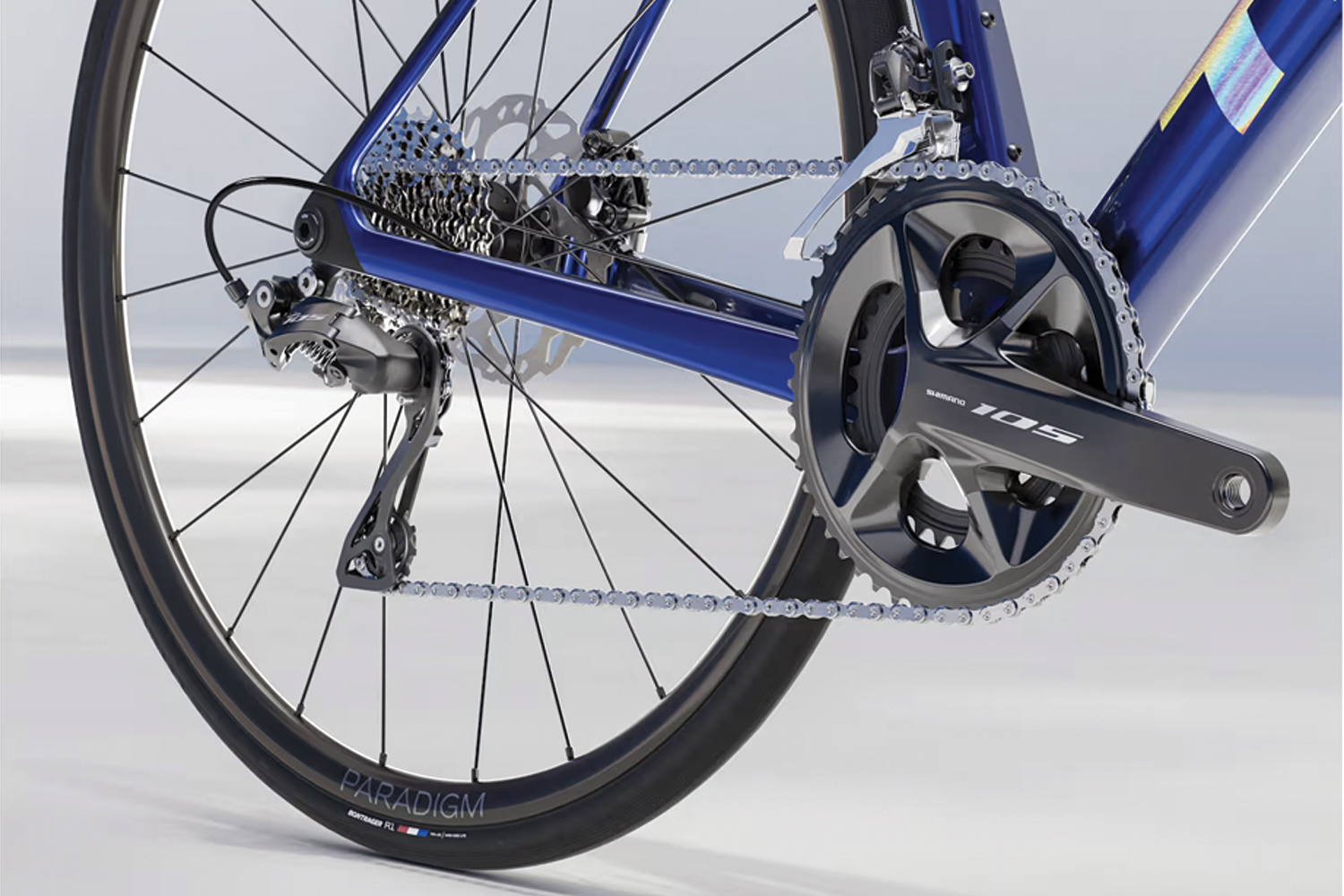

You get clean and reliable shifting without breaking the bank with Shimano's workhorse groupset – 105

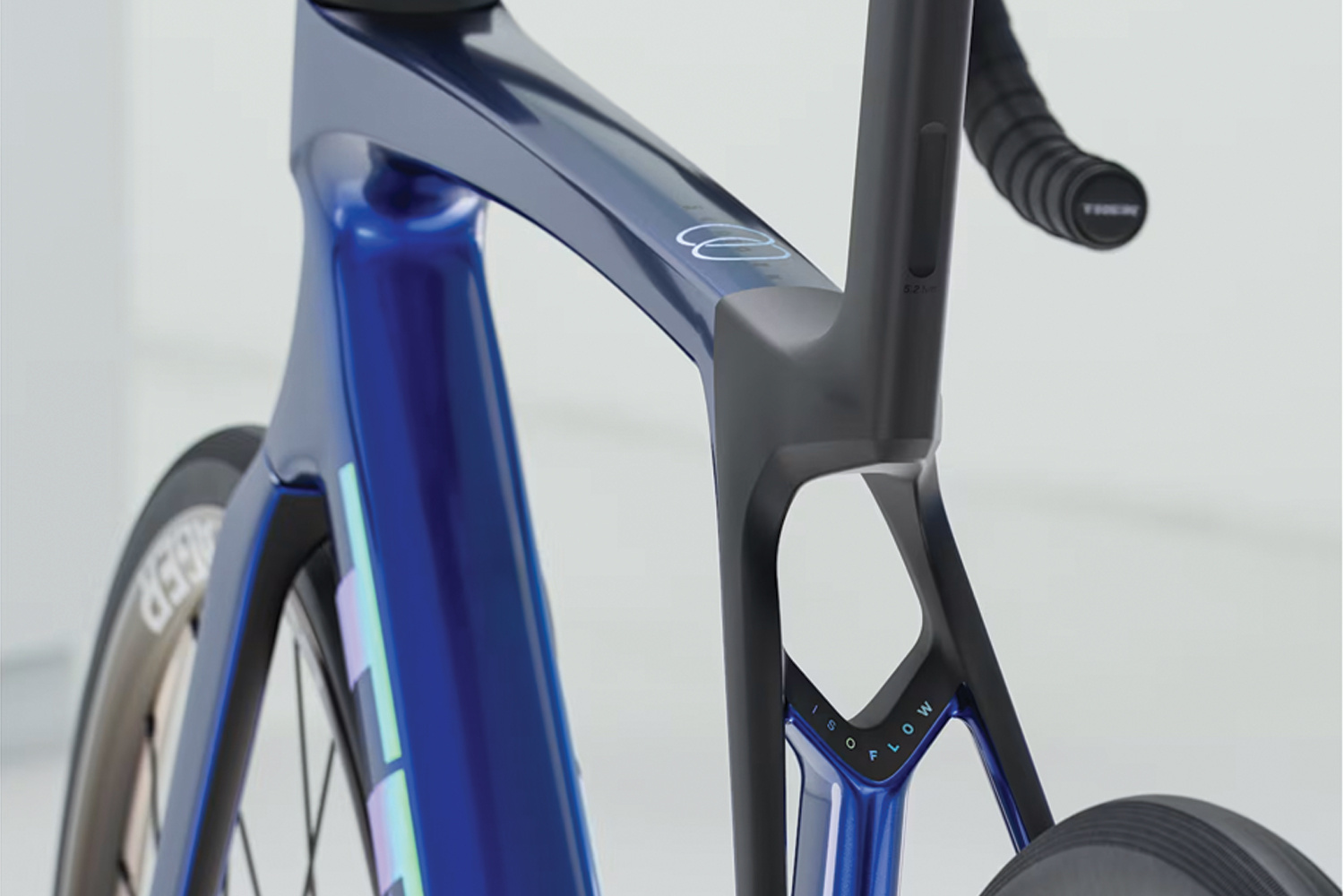

Lightweight, race-focused IsoFlow comfort tech helps you ride stronger longer without sacrificing weight or aerodynamics

SPECS


FRAMESET

Frame with Fork: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle

Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
WEIGHT

Weight: ML - 8.70 kg / 19.19 lbs (with tubes)

Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

WHEELS

Hub Front: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle

Skewer Front: Bontrager Switch chamfered thru axle, removable lever

Hub Rear: Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle

Skewer Rear: Size: XS, S, M, ML, L, XL
Bontrager Switch chamfered thru axle, removeable lever

Size: XS, S, M, ML, L, XL
Bontrager Switch chamfered thru axle, removable lever

Rim: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve

Spokes: 14g stainless steel, black

Tire: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm

Max Tire Size: 32mm (as measured, see manual for details)
DRIVETRAIN

Shifter: Shimano 105 R7120, 12 speed

Front Derailleur: Shimano 105 R7100, braze-on, down swing

Rear Derailleur: Shimano 105 R7100, 36T max cog

*Crank: Size: Size: XS, S
Shimano 105 R7100, 50/34, 165mm length

Size: M
Shimano 105 R7100, 50/34, 170mm length

Size: ML, L
Shimano 105 R7100, 50/34, 172.5mm length

Size: XL
Shimano 105 R7100, 50/34, 175mm length

Bottom Bracket: Praxis, T47 threaded, internal bearing

Cassette:  Shimano 105 7101, 11-34, 12 speed

Chain: Shimano SLX M7100, 12 speed

Max Chainring Size: 1x: 54T, 2x: 56/43
COMPONENTS

*Saddle: Size: XS, S
Bontrager Aeolus Comp, steel rails, 155mm width

Size: XS, S, M, ML, L, XL
Verse Short, steel rails, 145mm width

Size: M, ML, L, XL
Bontrager Aeolus Comp, steel rails, 145mm width

*Seatpost: Size: XS, S, M
Madone aero carbon seatpost, 0mm offset, short length

Size: ML, L, XL
Madone aero carbon seatpost, 0mm offset, long length

*Handlebar: Size: XS
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width

Size: S, M
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width

Size: ML, L
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width

Size: XL
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width

Handlebar Tape: Trek EcoTack, black

*Stem: Size: XS
Trek RCS Pro, -7 degree, 80mm length

Size: S, M
Trek RCS Pro, -7 degree, 90mm length

Size: ML, L
Trek RCS Pro, -7 degree, 100mm length

Size: XL
Trek RCS Pro, -7 degree, 110mm length

Brake Rotor: Shimano RT70, centerlock, 160mm

Rotor Size: Max brake rotor sizes: 180mm front, 160mm rear
