-33%

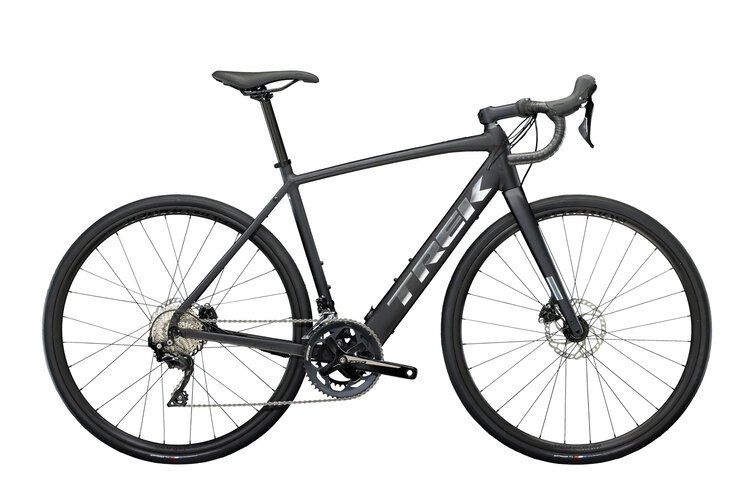

Trek Domane+ AL 5 — E-Road Bike

•••••
Available in store: Check availability

Available in store

Close
C$4,499.99C$2,999.99
Add to cart
1 in stock
  • Overview
  • Aluminum e-road bike with HyDrive hub motor (250W/40Nm), 250Wh battery, and up to 55 miles of range. In stock at both Fresh Air Kelowna locations.

Product details

IN STORE PICKUP OR LOCAL DELIVERY ONLY

Longer valley road loops and hillier routes around Kelowna feel completely different with a natural boost in your legs. The Domane+ AL 5 pairs Trek's lightweight aluminum endurance frame with the HyDrive hub-motor pedal-assist system, delivering 250W and 40Nm of natural-feeling power and up to 55 miles of range, so you can ride farther, climb easier, and keep pace on group rides without losing the feel of a true road bike.





KEY FEATURES

Frame: 100 Series Alpha Aluminum frame with tapered head tube, internal routing, and a Domane+ carbon fork — Endurance geometry with rack and fender mounts built in

Motor: Trek HyDrive hub-drive motor, 250W with 40Nm peak torque, for a natural, discreet pedal-assist feel with support up to 32 km/h (20 mph)

Range: Up to 55 miles (88 km) per charge in eco mode

Drivetrain: Shimano 105 2x11 drivetrain — 105 R7020 shifters (size 54), 105 R7000 front and rear derailleurs, Shimano 105 HG700-11 11-34 cassette

Brakes: Shimano 105 hydraulic disc brakes (BR-R7170 flat mount calipers) with Shimano RT66 160mm rotors front and rear

Standout feature: Hood-mounted controls and a top-tube display let you switch assist modes and check battery level on the fly

WHO IS THIS FOR?

This bike suits a road rider who wants to keep up on club rides and group loops around the valley without getting dropped on the climbs, or someone returning to cycling after time off who wants a confidence-boosting assist that still feels and handles like a traditional road bike. They'll appreciate the discreet hub motor, the light overall weight for an e-road bike, and the option to double their range with the plug-in Range Extender battery on longer days out. Our team at Fresh Air will help you find the right fit in-store at both Kelowna locations. Stop by to work with one of our experienced staff members, or call 250-763-3425.

HOW TO SET UP

As a Trek dealer, our team can walk you through the HyDrive controller setup and get your assist modes personalized to how you ride — whether that's eco mode for all-day range or a stronger boost for climbs. We'll dial in your contact points, including saddle height and handlebar reach for this size-54 frame, and set tyre pressure to suit the roads you're riding most. We'll also make sure your Range Extender is paired correctly if you've added one. We offer ongoing e-bike servicing, firmware updates, and battery care advice year-round. Drop into Fresh Air Pandosy (555 Groves Ave) or Fresh Air Dilworth (1656 Dilworth Drive), or book an appointment online.

FAQ

Q1: What size Trek Domane+ AL 5 do I need?
This listing is for the size 54, one of six frame sizes Trek offers on the Domane+ AL 5 (49–61cm), built on Endurance geometry with contact points scaled to fit. General road sizing is based on your height and inseam, but the best way to confirm size 54 is right for you is an in-person fit — our team at either Kelowna location can measure you up and get you dialled in.

Q2: Is the Domane+ AL 5 right for longer rides on the Okanagan Rail Trail or KVR?
Yes — with 700x32c tyres, tubeless-ready wheels, and up to 38mm of tyre clearance, the Domane+ AL 5 handles the smooth, packed gravel of the Okanagan Rail Trail and KVR corridor comfortably, while the HyDrive assist makes longer out-and-back rides or a full point-to-point route much more manageable.

Q3: How far can I ride on a single charge, and what factors affect range?
Trek rates the Domane+ AL 5 for up to 55 miles (88 km) per charge in eco mode. Actual range depends on assist level used, rider weight, terrain (climbing draws more power than flat riding), tyre pressure, and temperature. Riders wanting extra range can add Trek's optional 250Wh Range Extender battery, which mounts in the bottle cage and roughly doubles total range.

SPECS



FRAMESET

Frame with Fork: 100 Series Alpha Aluminum, hub drive system, tapered head tube, internal routing, flat mount disc, rack and fender mounts

Fork: Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Frame Fit: Endurance

WEIGHT

Weight:56 - 14.06 kg / 31 lbs

Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-SYSTEM

Battery: 250Wh, integrated in down tube, Range Extender compatible

Charger: 2A, 42V output, 100V-240V AC input

WHEELS

Hub Front: Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12mm thru axle

Skewer Rear: Bontrager Switch thru axle, removable lever

Hub Rear: Hyena hub drive motor, 40Nm, 250W

Rim: Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve

Tire: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c

Max Tire Size: 38mm without fenders, 32mm with fenders

DRIVETRAIN

*Shifter:Size: 49, 52
Shimano 105 R7025, short-reach lever, 11 speed

Size: 54, 56, 58, 61
Shimano 105 R7020, 11 speed

Front Derailleur: Shimano 105 R7000, 31.8mm clamp

Rear Derailleur: Shimano 105 R7000, long cage, 34T max cog

*Crank: Size: 49
FSA Vero Pro, 50/34, 165mm

Size: 52
FSA Vero Pro, 50/34, 170mm

Size: 54, 56
FSA Vero Pro, 50/34, 172.5mm

Size: 58, 61
FSA Vero Pro, 50/34, 175mm

Bottom Bracket: Torque sensor, threaded, 110mm spindle

Cassette:  Shimano 105 HG700-11, 11-34, 11 speed

Chain: Shimano HG601

Max Chainring Size: 2x: 50/34

COMPONENTS

*Saddle: Size: 49, 52
Bontrager Verse Short Comp, steel rails, 155mm width

Size: 54, 56, 58, 61
Bontrager Verse Short Comp, steel rails, 145mm width

*Handlebar: Size: 49
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width

Size: 52
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width

Size: 54, 56
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width

Size: 58, 61
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width

Handlebar Tape: Bontrager Supertack Perf tape

*Stem: Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length

Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length

Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length

Size: 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length

Headset: FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom

Brake: Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin

Brake Rotor: Shimano RT66, 6-bolt, 160mm

Rotor Size: Max brake rotor sizes: 160mm front & rear
