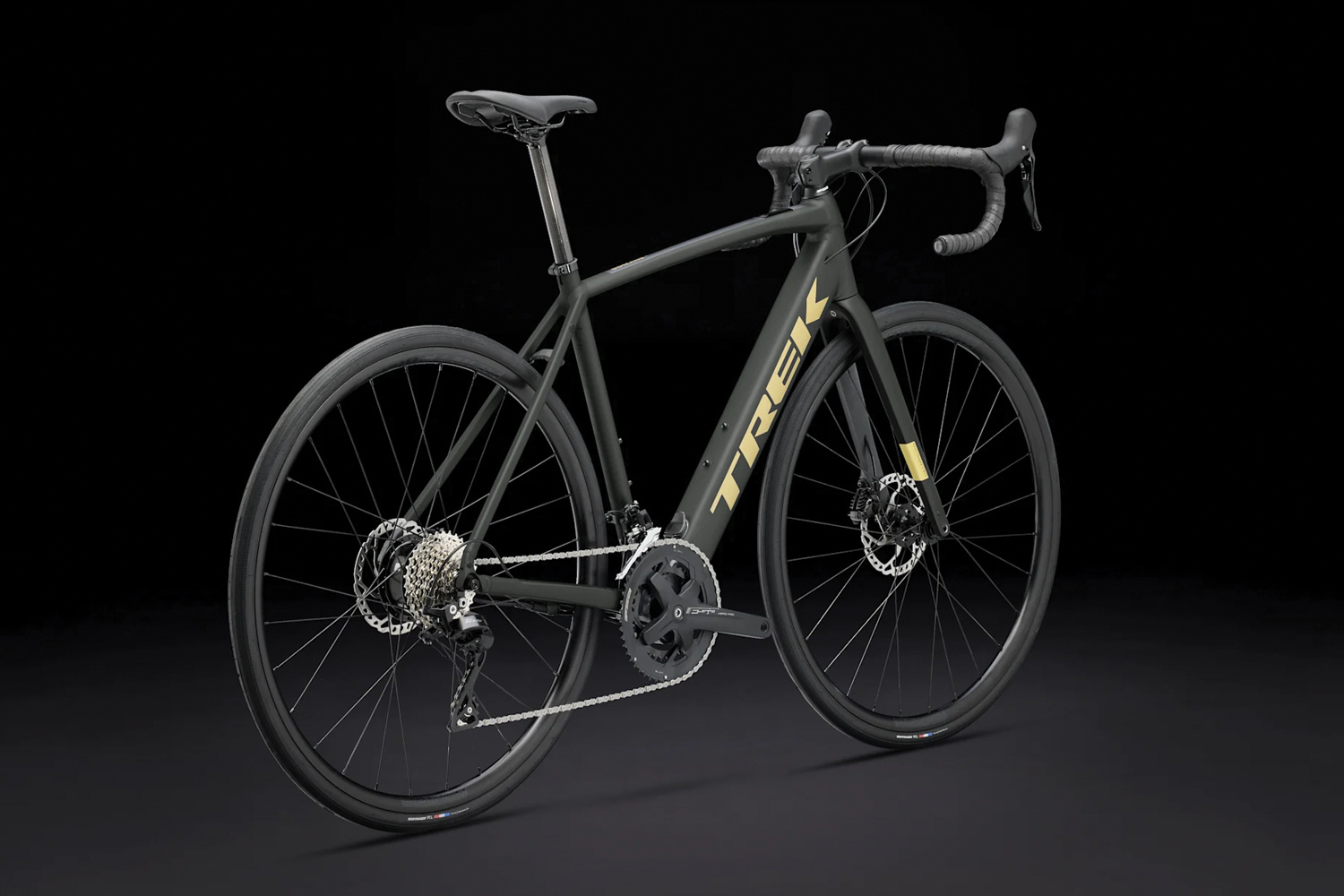

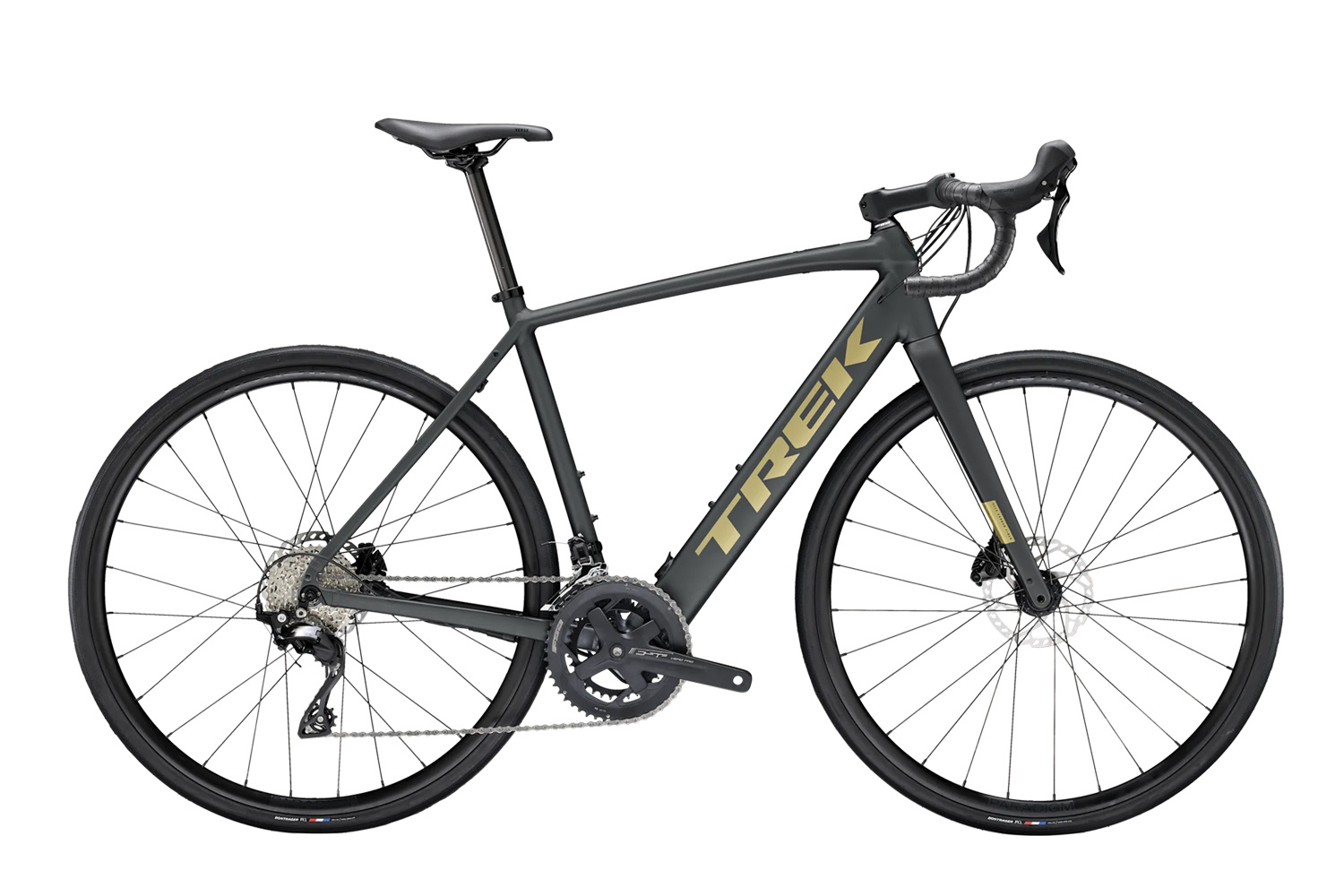

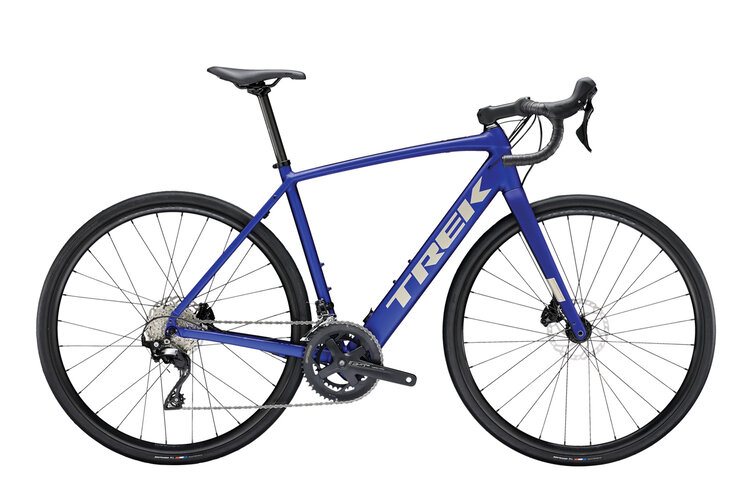

Trek Domane+ AL 5

Available in store: Check availability

Available in store

Close
C$4,499.99
Out of stock
Out of stock
  • Overview
  • Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost.

Product details

IN STORE PICKUP OR LOCAL DELIVERY ONLY

Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain, or push yourself harder on training rides.





IT'S RIGHT FOR YOU IF

You want a high-value e-road bike that looks and rides like a traditional road bike. You’re looking for a natural-feeling boost that adds extra capability to training rides and club rides.

THE TECH YOU GET

A lightweight aluminum frame and fork, a natural-feeling HyDrive hub motor (250W, 40Nm) that assists up to 20 mph with a 250Wh battery for a range of up to 55 miles per charge when ridden in eco mode. Plus a workhorse Shimano 105 2x12 drivetrain, tubeless ready wheels, and vibration-absorbing Elite IsoZone handlebars.

THE FINAL WORD

Domane+ AL’s streamlined and discreet drive system lets you get more out of every ride. You get true road bike feel with the benefit of an extra boost when you want it.

WHY YOU'LL LOVE IT

This e-road bike looks, rides, and feels more like a traditional road bike

The HyDrive pedal assist system has a hub motor for a more natural ride feel

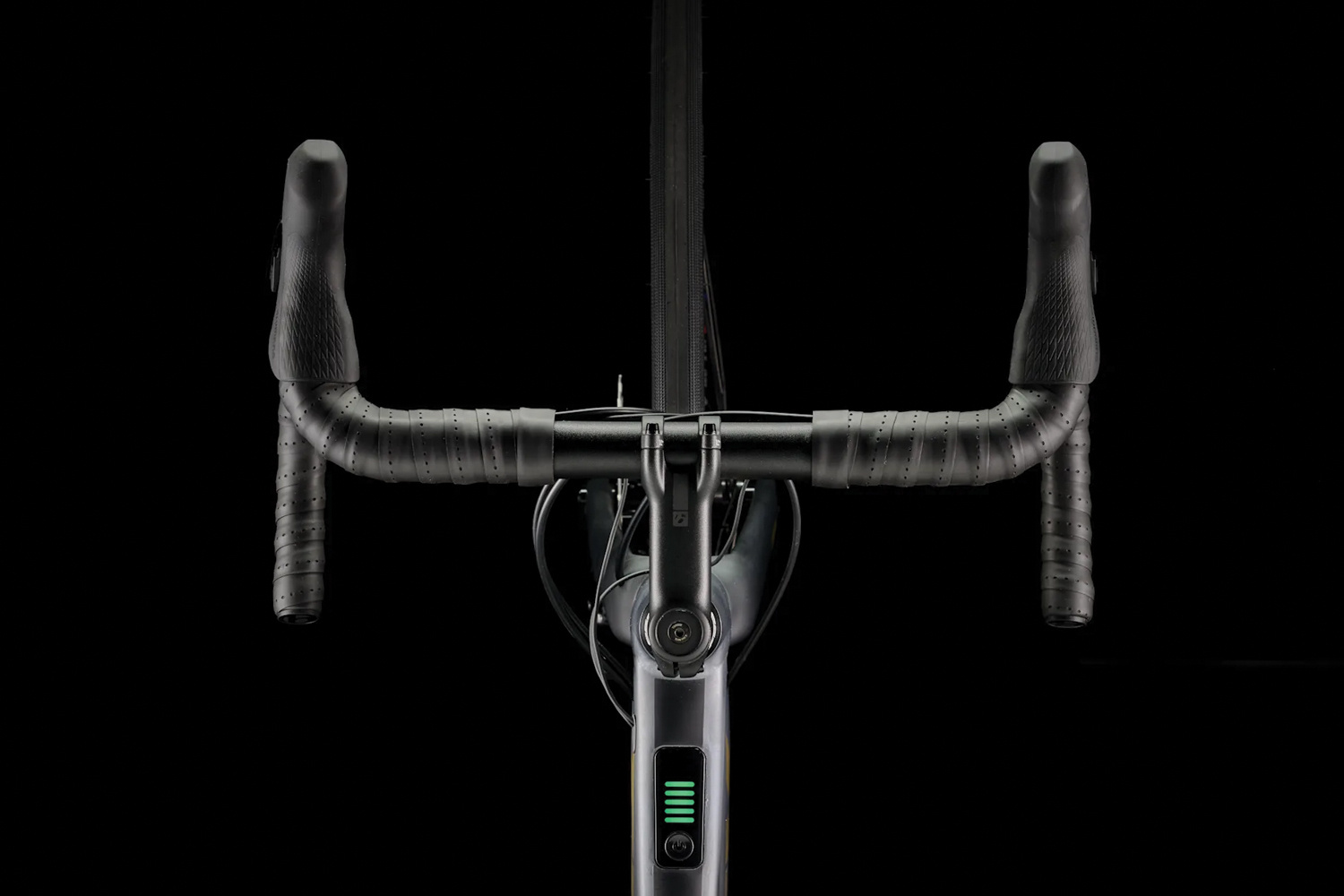

Easily change electric assist level with hood-mounted controls, and keep track of assist and battery levels with the top tube display

The stable Endurance Geometry delivers comfort and confidence

An optional 250Wh Range Extender battery with a tool-free quick-mount system lets you easily swap your seat tube bottle cage for double the battery life

SPECS



FRAMESET

Frame with Fork: 100 Series Alpha Aluminum, hub drive system, tapered head tube, internal routing, flat mount disc, rack and fender mounts

Fork: Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Frame Fit: Endurance

WEIGHT

Weight:56 - 14.06 kg / 31 lbs

Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-SYSTEM

Battery: 250Wh, integrated in down tube, Range Extender compatible

Charger: 2A, 42V output, 100V-240V AC input

WHEELS

Hub Front: Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12mm thru axle

Skewer Rear: Bontrager Switch thru axle, removable lever

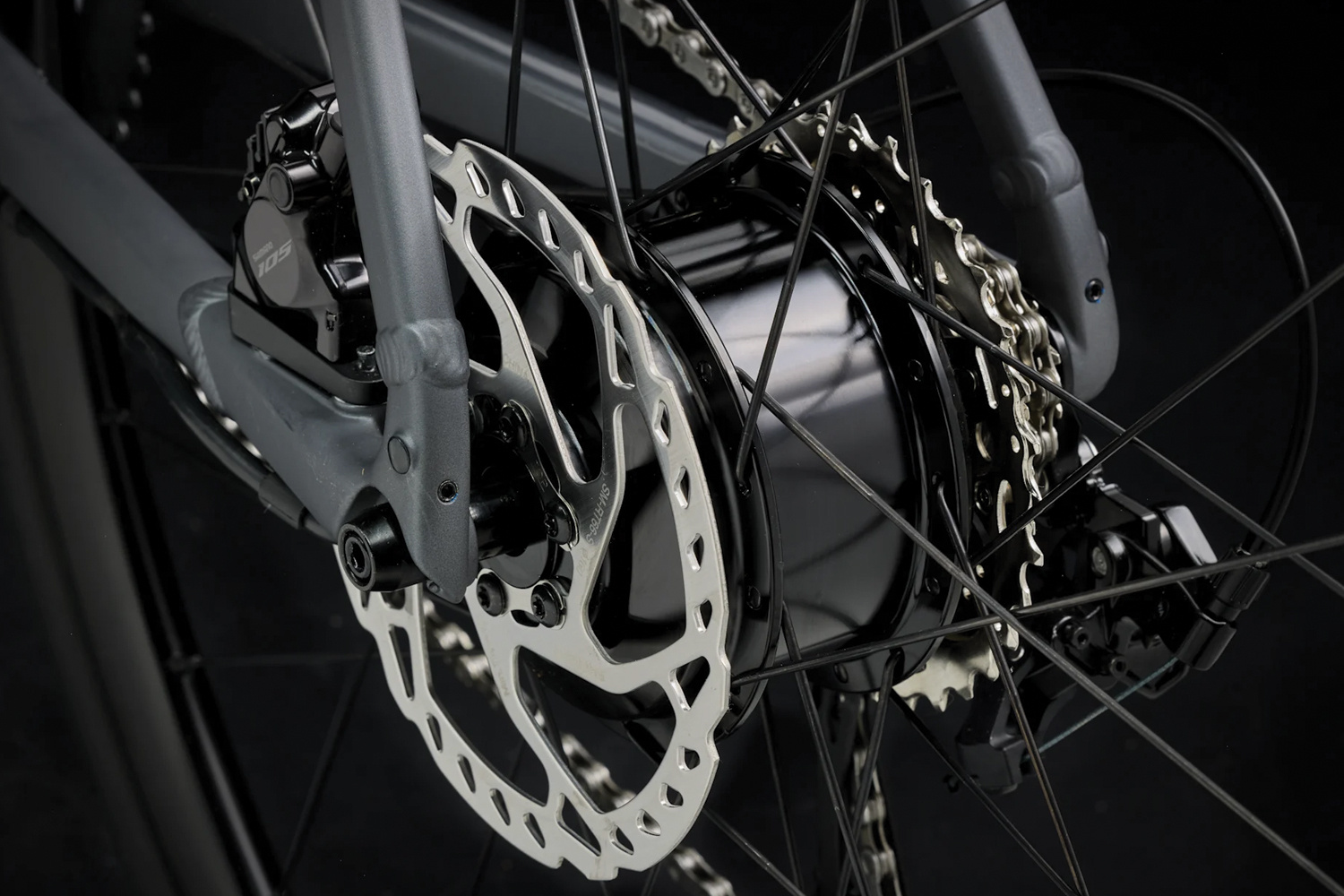

Hub Rear: Hyena hub drive motor, 40Nm, 250W

Rim: Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve

Tire: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c

Max Tire Size: 38mm without fenders, 32mm with fenders

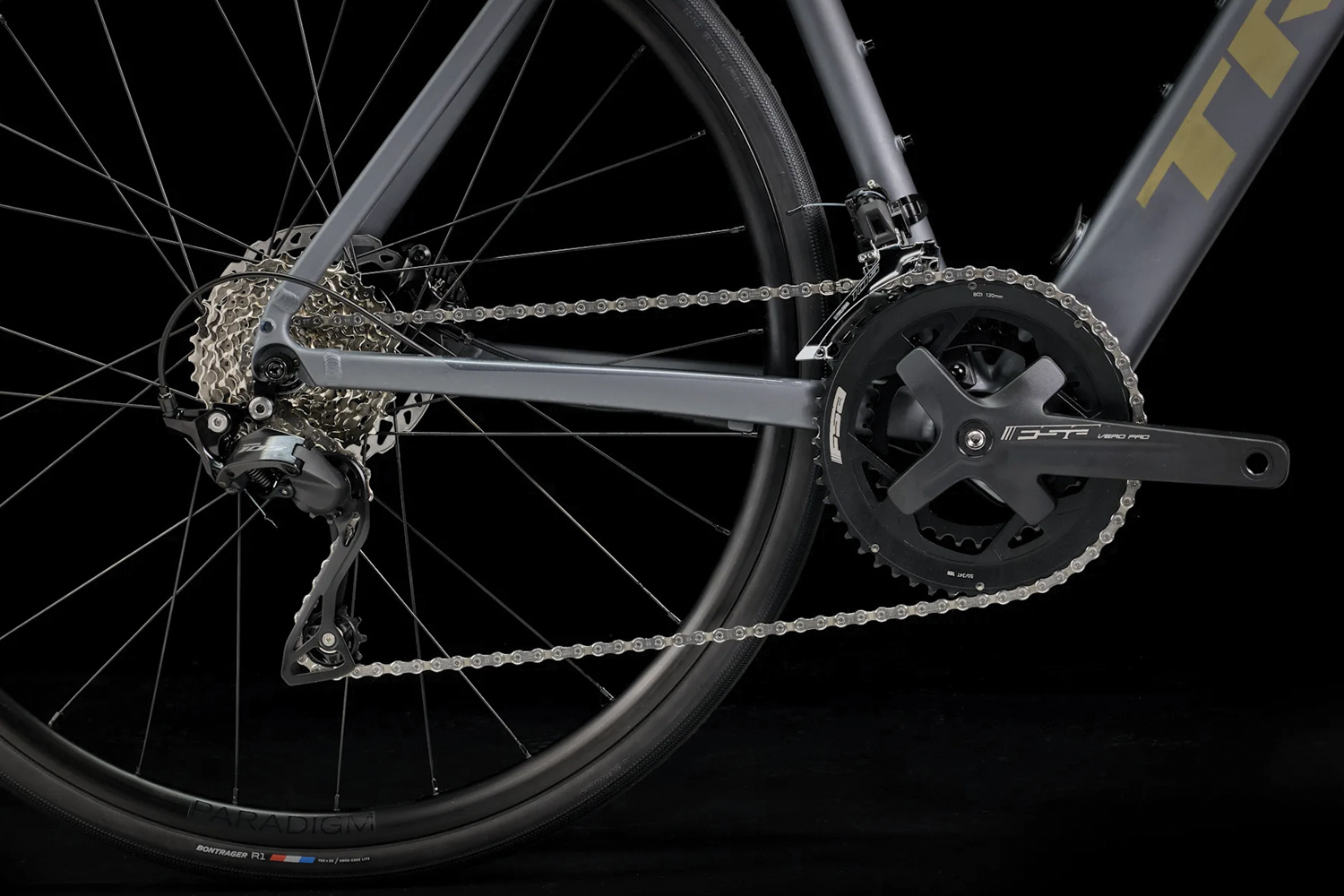

DRIVETRAIN

*Shifter:Size: 49, 52
Shimano 105 R7025, short-reach lever, 11 speed

Size: 54, 56, 58, 61
Shimano 105 R7020, 11 speed

Front Derailleur: Shimano 105 R7000, 31.8mm clamp

Rear Derailleur: Shimano 105 R7000, long cage, 34T max cog

*Crank: Size: 49
FSA Vero Pro, 50/34, 165mm

Size: 52
FSA Vero Pro, 50/34, 170mm

Size: 54, 56
FSA Vero Pro, 50/34, 172.5mm

Size: 58, 61
FSA Vero Pro, 50/34, 175mm

Bottom Bracket: Torque sensor, threaded, 110mm spindle

Cassette:  Shimano 105 HG700-11, 11-34, 11 speed

Chain: Shimano HG601

Max Chainring Size: 2x: 50/34

COMPONENTS

*Saddle: Size: 49, 52
Bontrager Verse Short Comp, steel rails, 155mm width

Size: 54, 56, 58, 61
Bontrager Verse Short Comp, steel rails, 145mm width

*Handlebar: Size: 49
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width

Size: 52
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width

Size: 54, 56
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width

Size: 58, 61
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width

Handlebar Tape: Bontrager Supertack Perf tape

*Stem: Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length

Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length

Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length

Size: 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length

Headset: FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom

Brake: Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin

Brake Rotor: Shimano RT66, 6-bolt, 160mm

Rotor Size: Max brake rotor sizes: 160mm front & rear
