KEY FEATURES
|
Frame: 500 Series OCLV Carbon with IsoSpeed decoupler, internal downtube storage (BITS box), hidden fender mounts, rack mounts, integrated frame bag mounts, T47 bottom bracket, and a full carbon fork

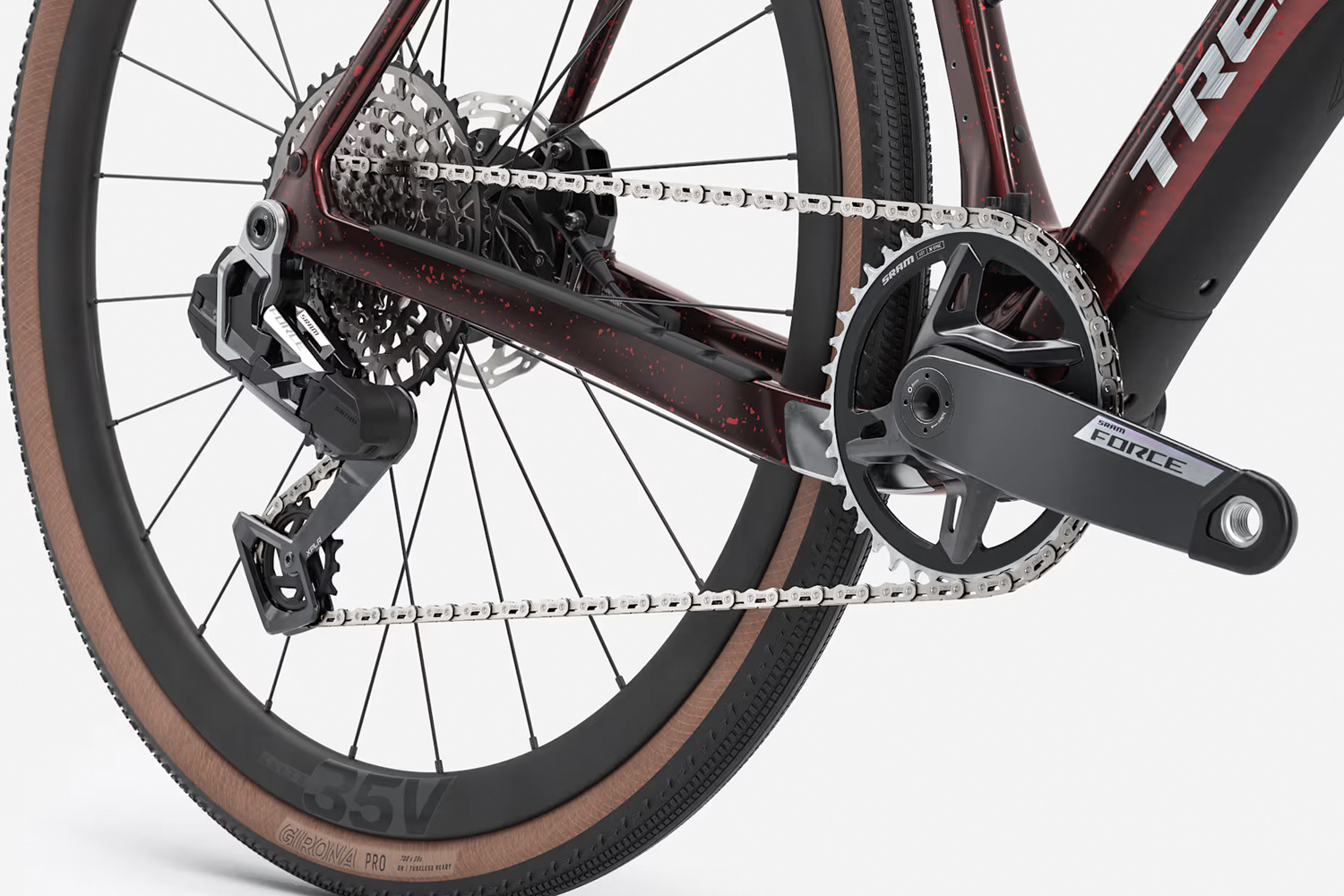

Drivetrain: SRAM Force XPLR AXS E1, fully wireless, 13-speed, 1x with a 40T chainring
Brakes: SRAM Force AXS hydraulic disc, SRAM CenterLine X 160mm rotors (180mm max front and rear)

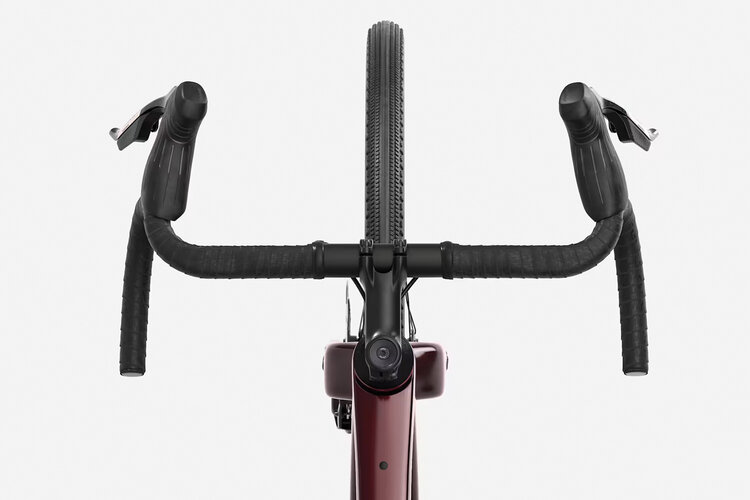

Cockpit: Bontrager Pro Gravel handlebar and Bontrager Pro stem (width/length vary by frame size), Bontrager carbon 27.2mm seatpost
Standout feature: Massive tyre clearance up to 50mm without fenders, plus dropper post and (on all sizes except XS) suspension fork compatibility
|
|
WHO IS THIS FOR
|
This bike is for the rider who wants to go further than a standard gravel loop — someone eyeing a KVR trestle tour, a multi-day bikepacking trip, or long mixed-surface days that mix pavement, gravel, and light singletrack. It suits an experienced gravel or road rider who's ready to upgrade to a wireless SRAM Force AXS drivetrain and carbon wheels, and who'll actually use the internal storage and mount points for bags, fenders, and racks. They'll appreciate the IsoSpeed comfort tech on long days in the saddle and the confidence of 50mm tyre clearance when the terrain gets rougher.
Our team at Fresh Air will help you find the right fit in-store at both Kelowna locations. Stop by to work with one of our experienced staff members, or call 250-763-3425.
|
|
HOW TO SET UP
|
As a Trek dealer, our team can dial in your contact points on the Checkpoint SL 7 AXS Gen 3 — saddle height, reach, and stem length across the six available sizes — so your riding position is comfortable from day one. We'll set your Bontrager tyres up tubeless and get pressure dialled for whatever mix of pavement, gravel, or light singletrack you're riding. Since this build runs SRAM's fully wireless Force XPLR AXS drivetrain, we'll also walk you through shifter setup and pairing with the SRAM AXS app if you'd like to customize your shift buttons. We offer ongoing servicing for both the drivetrain and IsoSpeed system, so you can keep the bike running smoothly for years of gravel adventures.
Drop into Fresh Air Pandosy (555 Groves Ave) or Fresh Air Dilworth (1656 Dilworth Drive), or book an appointment online.
|
|
FAQ
|
Q1: What size Trek Checkpoint SL 7 AXS Gen 3 do I need?
The Checkpoint SL 7 AXS Gen 3 is available in XS through XL, with cockpit dimensions (handlebar width, stem length, and crank length) scaled per size. General frame sizing is based on rider height, but because reach and stack vary between riders, we always recommend an in-store fit check. See the geometry chart link in the Geometry & Sizing section, or come into either Kelowna location and our team will help you find your size.
Q2: Is the Trek Checkpoint SL 7 AXS Gen 3 right for riding the KVR or Okanagan Rail Trail?
Yes — with its Gravel Endurance geometry, IsoSpeed comfort tech, and 42mm stock tyres (with room to size up to 50mm), this bike is well suited to the mixed hardpack and gravel surfaces you'll find along the KVR and Okanagan Rail Trail, as well as longer valley touring routes.
Q3: How far can I ride on a single charge, and what factors affect range?
This isn't an e-bike — the Checkpoint SL 7 AXS Gen 3 is a fully human-powered gravel bike. The only battery onboard is the small SRAM eTap pack that powers the wireless AXS shifting, and it typically lasts for hundreds of kilometres of riding between charges rather than being tied to a single-ride range.
|
SPECS
|
|
| FRAMESET |
-
-
-
-
Frame: 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

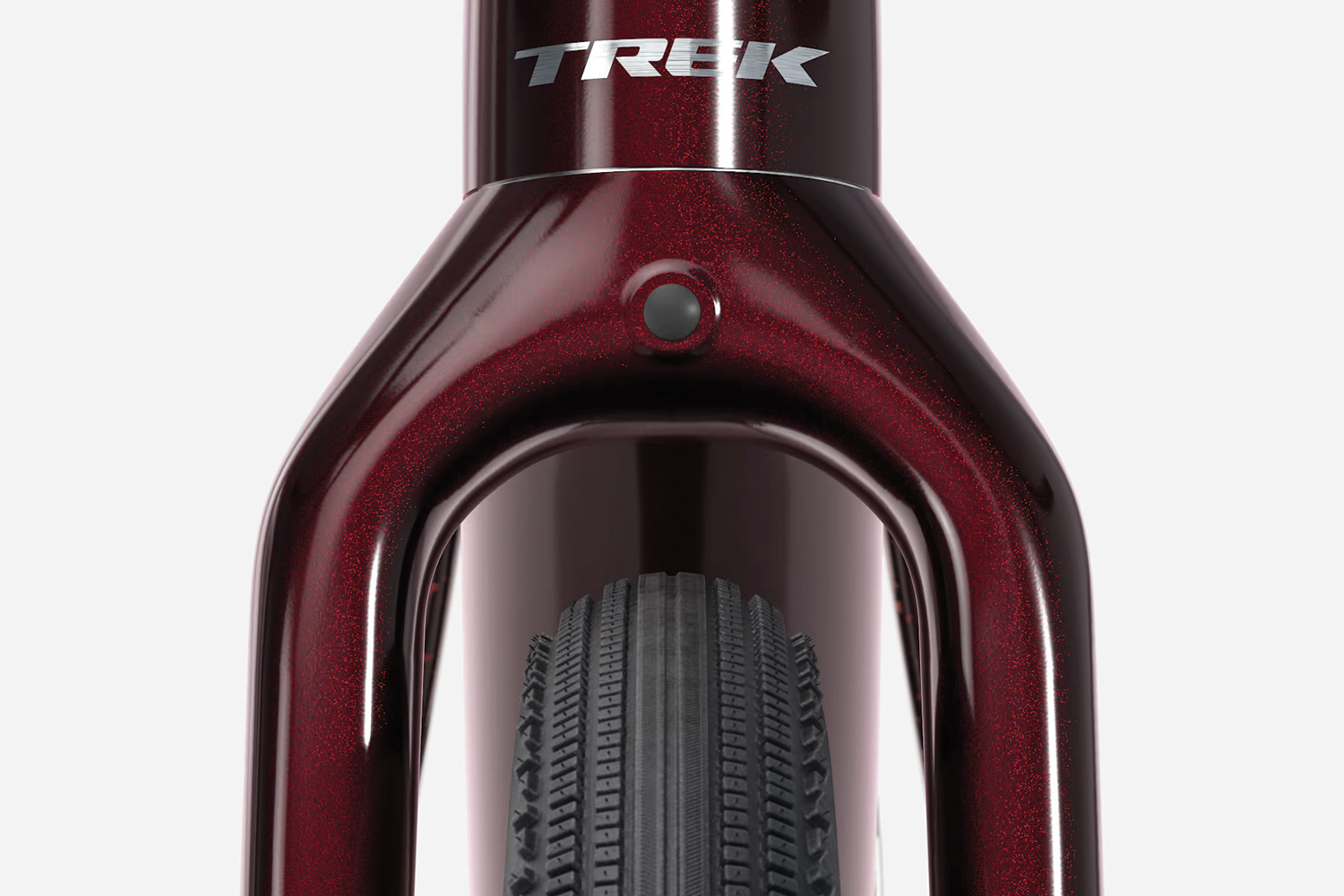

Fork: Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Max Compatible Fork Travel: 40 mm (XS: compatible with rigid fork only)
See Checkpoint SL Gen 3 FAQ for compatible options
|
| E SYSTEM |
Battery: SRAM eTap battery pack (with charger)
|
| WHEELS |
-
-
-
-
Wheel Front: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
Wheel Rear: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle
Hub Front: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer Front: Bontrager Switch chamfered thru axle, removable lever
Skewer Rear: Bontrager Switch chamfered thru axle, removable lever
Tire: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Tire Part: Bontrager TLR sealant, 180 ml/6 oz
Rim Strip: Bontrager TLR
Max Tire Size: 50mm without fenders, 42mm with fenders (as measured, see manual for details)
|
| DRIVETRAIN |
-
-
-
-
-
Shifter: SRAM Force AXS, 13 speed
Rear Derailleur: SRAM Force XPLR AXS, 46T max cog
*Crank: Size: XS, S
SRAM Force XPLR, 40T, DUB Wide, 165mm length
Size: M
SRAM Force XPLR, 40T, DUB Wide, 170mm length
Size: ML, L
SRAM Force XPLR, 40T, DUB Wide, 172.5mm length
Size: XL
SRAM Force XPLR, 40T, DUB Wide, 175mm length
Bottom Bracket: SRAM DUB Wide, T47 threaded, internal bearing
*Cassette: Size: XS, S, M, ML, L, XL
SRAM XG-1271, 10-44, 12 speed
Size: XS, S, M, ML, L, XL
SRAM Force XPLR XG-1371, 10-46, 13 speed
Chain: SRAM Force E1, 12/13 speed
Max Chainring Size: 1x:44 2x: 46/30
|
| COMPONENTS |
Saddle: Verse Short Elite, hollow magnesium rails, 145mm width
Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length
*Handlebar: Size: XS, S
Bontrager Pro Gravel, 40cm width
Size: M, ML
Bontrager Pro Gravel, 42cm width
Size: L
Bontrager Pro Gravel, 44cm width
Size: XL
Bontrager Pro Gravel, 46cm width
Handlebar Tape: Bontrager Supertack Perf tape
*Stem: Size: XS
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: S, M
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: ML, L
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: XL
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
Brake: SRAM Force AXS hydraulic disc, flat mount
Rotor Rotor: SRAM CenterLine X, centerlock, round edge, 160mm
Rotor Size: Max brake rotor sizes: 180mm front & rear
|
| WEIGHT |
Weight: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
|
