Trek Checkpoint SL 5 AXS Gen 3 — Gravel Bike

•••••
Available in store: Check availability

Available in store

Close
C$4,299.99
Add to cart
1 in stock
  • Overview
  • Carbon gravel bike with IsoSpeed comfort tech, wireless SRAM Apex XPLR AXS shifting, and tyre clearance up to 50mm. In stock at both Fresh Air Kelowna locations.

Product details

IN STORE PICKUP OR LOCAL DELIVERY ONLY

Long-distance exploration out toward the KVR or a full day on the Okanagan Rail Trail is where the Checkpoint SL 5 AXS Gen 3 comes into its own. This carbon gravel bike combines Trek's Gravel Endurance geometry with IsoSpeed technology to soak up vibration from rough surfaces, room for tyres up to 50mm, and a fully wireless SRAM Apex XPLR AXS 12-speed drivetrain that shifts precisely no matter how rough the road gets.





KEY FEATURES

Frame: 500 Series OCLV Carbon frame with IsoSpeed technology, internal downtube storage, hidden fender mounts, rack mounts, and integrated frame bag mounts, paired with a full carbon Checkpoint fork

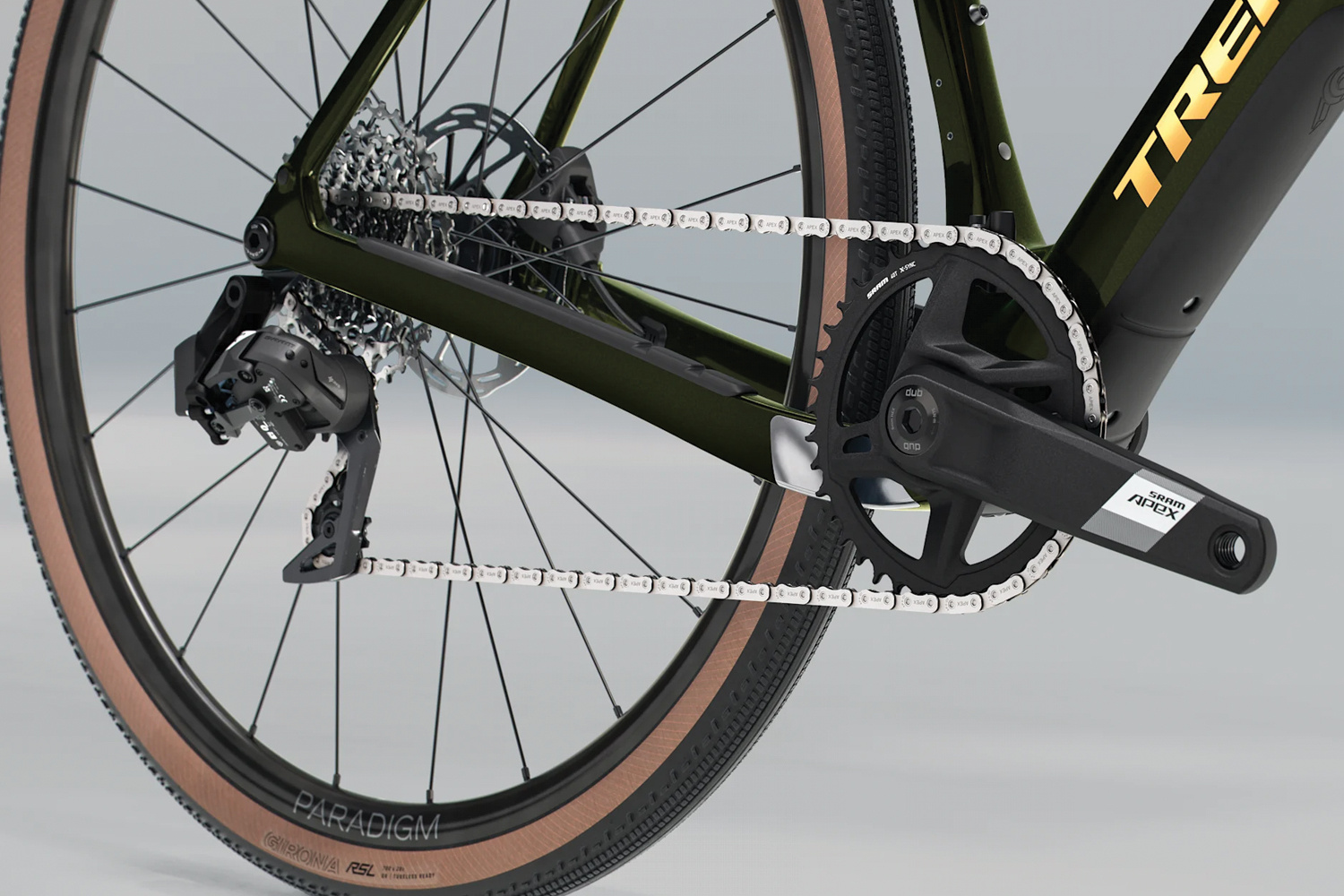

Drivetrain: SRAM Apex XPLR eTap AXS wireless electronic shifting, 12-speed, SRAM Apex 1 DUB Wide crank (40T), SRAM XPLR PG-1231 11-44 cassette

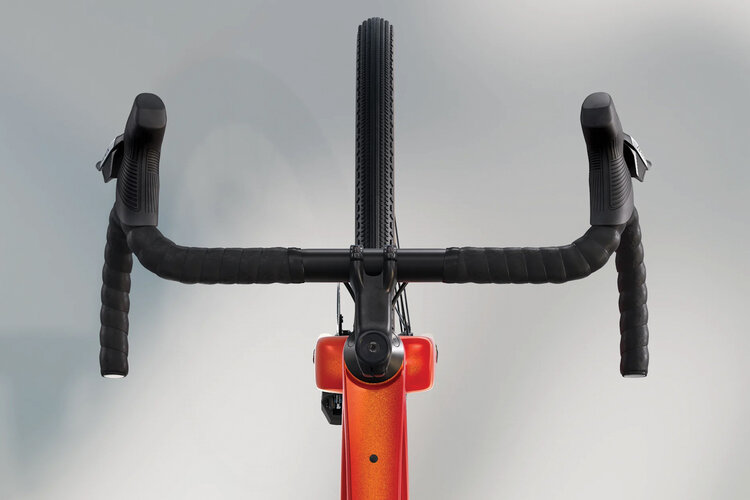

Cockpit: Bontrager Elite Gravel alloy handlebar, Bontrager Elite stem, and a Bontrager carbon seatpost for added road-buzz damping

Standout feature: Large internal frame storage plus dropper post and suspension fork compatibility (except size XS) — genuine bikepacking and mixed-terrain versatility built into a race-capable frame

WHO IS THIS FOR?

This bike suits an adventure-focused gravel rider who wants a genuinely capable carbon build for long days exploring routes like the KVR or Okanagan Rail Trail, with the option to add a dropper post or suspension fork down the line. They'll appreciate the crisp, maintenance-friendly feel of wireless AXS shifting, the chatter-smoothing comfort of IsoSpeed, and the internal frame storage and mount points for carrying gear on multi-day trips.

Our team at Fresh Air will help you find the right fit in-store at both Kelowna locations. Stop by to work with one of our experienced staff members, or call 250-763-3425.

HOW TO SET UP

Our team can dial in your contact points — saddle height, reach, and cleat alignment — for the Checkpoint's Gravel Endurance geometry, and set tyre pressure appropriate for the mix of pavement and gravel you're riding, whether that's the KVR or the Rail Trail. We can also help fit racks, fenders, or frame bags using the integrated mounts, and talk through dropper post or suspension fork options if you're planning to upgrade. Drop into Fresh Air Pandosy (555 Groves Ave) or Fresh Air Dilworth (1656 Dilworth Drive), or book an appointment online.

FAQ

Q1: What size Trek Checkpoint SL 5 AXS Gen 3 do I need?
The Checkpoint SL 5 AXS Gen 3 comes in six sizes — XS, S, M, ML, L, and XL — built on Trek's Gravel Endurance geometry, with handlebar width, stem length, and crank length scaled to each size. General sizing follows your height and inseam, but the best way to confirm your size is an in-person fit — our team at either Kelowna location can get you set up correctly.

Q2: Is the Checkpoint SL 5 AXS Gen 3 right for riding the KVR or Okanagan Rail Trail?
Yes — with wide 42c Girona RSL tyres, clearance up to 50mm, and IsoSpeed comfort technology, the Checkpoint SL 5 AXS handles the packed gravel of the KVR and Okanagan Rail Trail confidently on long days out.

Q3: What tyre width and clearance does the Checkpoint SL 5 AXS support?
The Checkpoint SL 5 AXS Gen 3 ships with 700x42mm Bontrager Girona RSL tyres and has clearance up to 50mm without fenders (42mm with fenders), giving you room to size up for rougher terrain.

SPECS



FRAMESET

Frame: 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

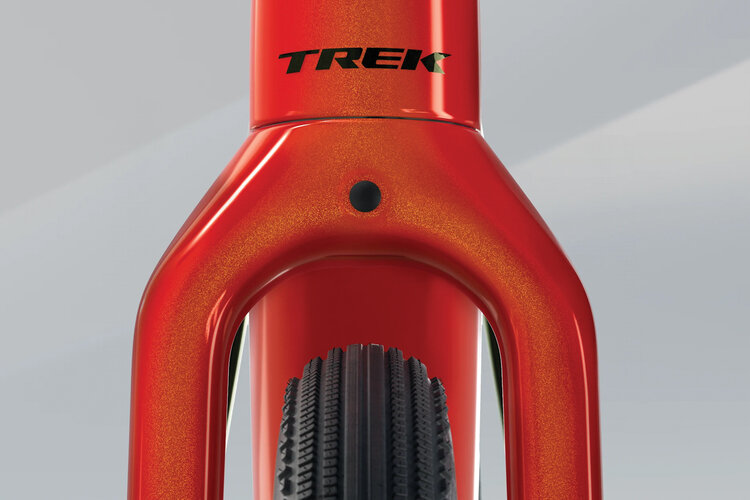

Fork: Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle

Max Compatible Fork Travel: 40 mm (XS: compatible with rigid fork only)
See Checkpoint SL Gen 3 FAQ for compatible options

WHEELS

Wheel Front: Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples

Wheel Rear: Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples

Skewer Front: Bontrager Switch chamfered thru axle, removable lever

Skewer Rear: Bontrager Switch chamfered thru axle, removable lever

Tire: Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm

Tire Part: Bontrager TLR sealant, 180 ml/6 oz

Rim Strip: Bontrager TLR

Max Tire Size: 50mm without fenders, 42mm with fenders

E SYSTEM

Battery: SRAM eTap battery pack (with charger)

DRIVETRAIN

*Shifter: Size: XS, S, M, ML, L, XL
SRAM Apex, 12 speed

Size: XS, S, M, ML, L, XL
SRAM Apex AXS, 12 speed

Rear Derailleur: SRAM Apex XPLR eTap AXS, 44T max cog

Crank:  Size: XS, S
SRAM Apex 1, 40T, DUB Wide, 165mm length

Size: M
SRAM Apex 1, 40T, DUB Wide, 170mm length

Size: ML, L
SRAM Apex 1, 40T, DUB Wide, 172.5mm length

Size: XL
SRAM Apex 1, 40T, DUB Wide, 175mm length

Bottom Bracket: SRAM DUB, T47 threaded, internal bearing

Cassette: SRAM XPLR PG-1231, 11-44, 12 speed

Chain: SRAM Apex, 12 speed

Max Chainring Size: 1x:44 2x: 46/30

COMPONENTS

*Saddle: Size: XS, S
Verse Short Comp, steel rails, 155mm width

Size: M, ML, L, XL
Verse Short Comp, steel rails, 145mm width

Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length

*Handlebar: Size: XS
Bontrager Elite Gravel, alloy, 40cm width

Size: S, M
Bontrager Elite Gravel, alloy, 42cm width

Size: ML, L
Bontrager Elite Gravel, alloy, 44cm width

Size: XL
Bontrager Elite Gravel, alloy, 46cm width

Handlebar Tape: Bontrager Supertack Perf tape

*Stem: Size: XS
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length

Size: S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length

Size: M, ML
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length

Size: L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length

Size: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length

Brake Rotor: SRAM Paceline, rounded, centerlock, 160mm

Rotor Size: Max brake rotor sizes: 180mm front & rear

WEIGHT


Weight: ML - 9.50 kg / 20.95 lbs (with TLR sealant, no tubes)

Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
