WHY YOU'LL LOVE IT
|

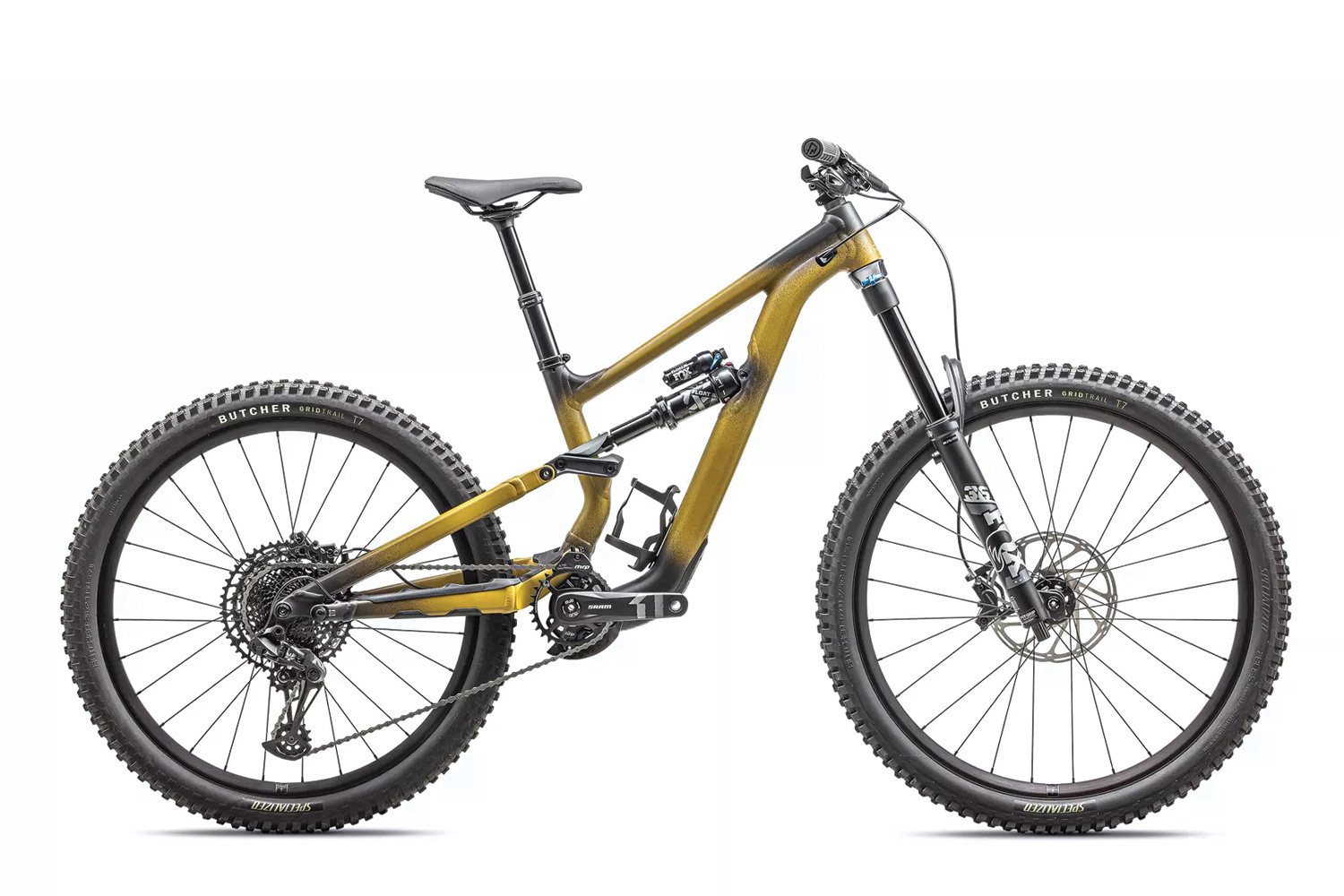

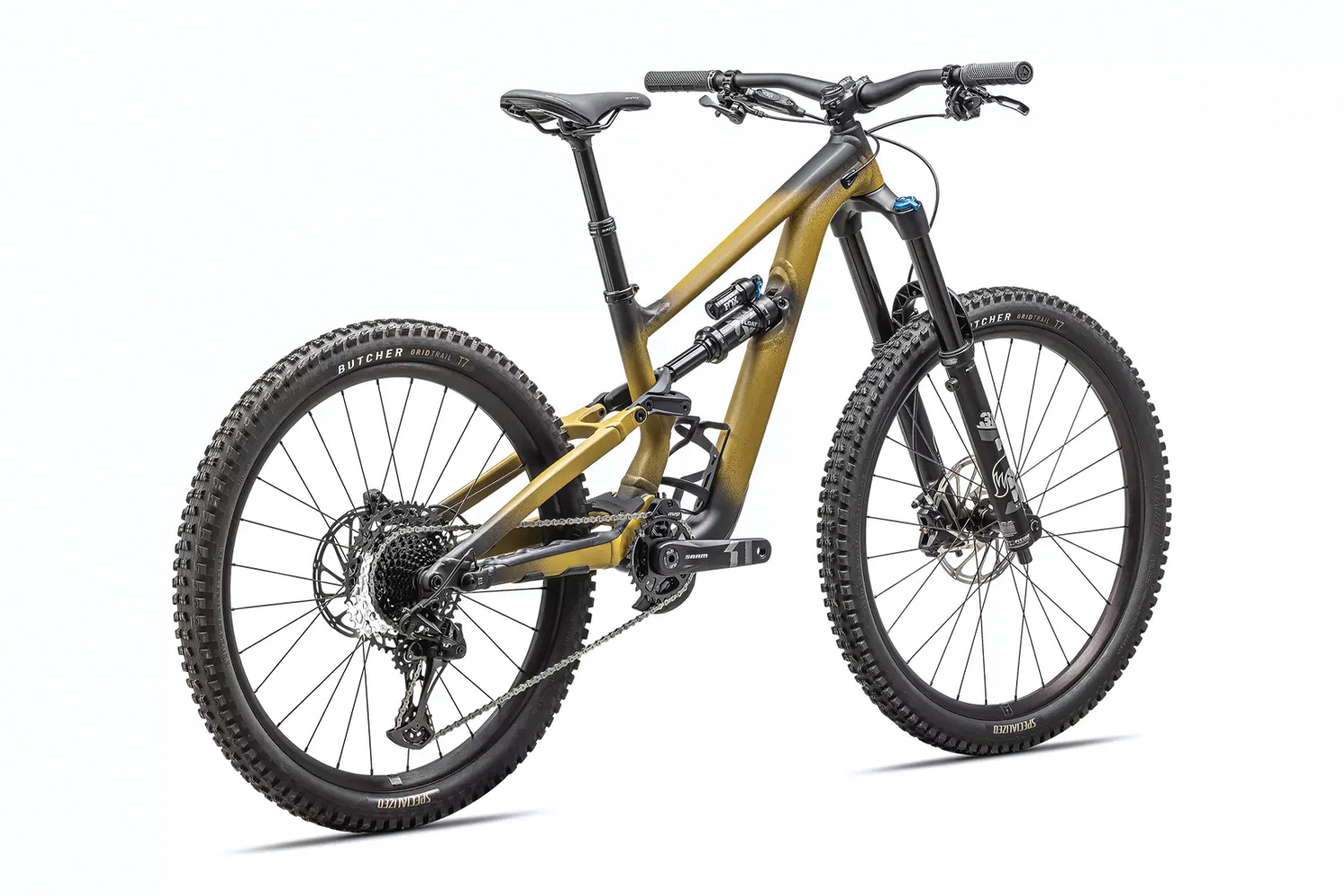

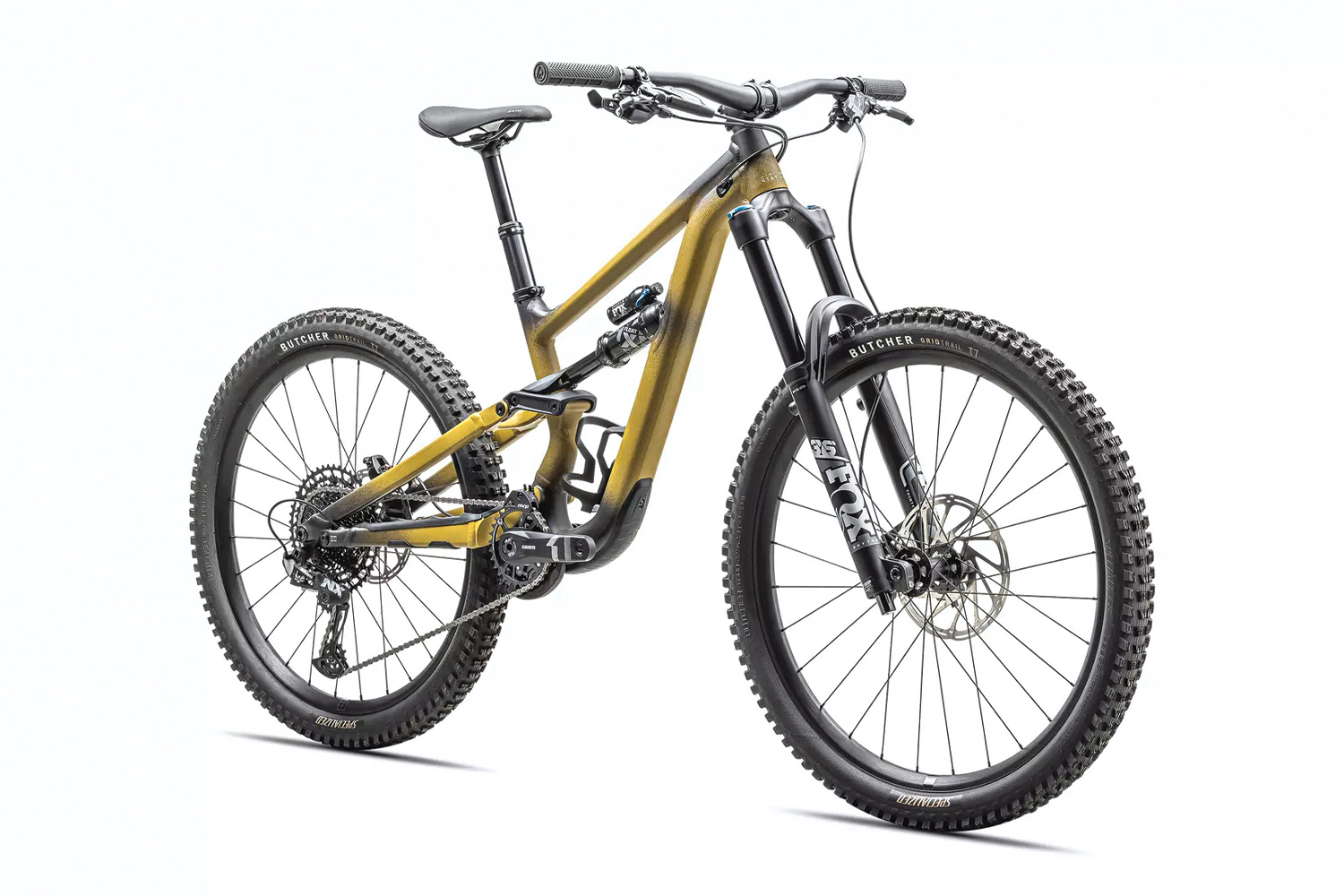

GO BIG, START SMALL: STATUS 2 ZERO is a first for our mountain bikes. It is a ‘core’ and incredibly capable rig built intentionally for small riders who want to really get after it. It has custom-tuned kinematics and suspension from the Specialized Ride Dynamics team—specifically for smaller riders—and appropriately sized components.
BUILT BY RIDERS: STATUS 2 ZERO starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.
RIDE DYNAMICS TUNED: Before arriving at your doorstep or local bike shop, each bike gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The shock's characteristics are designed to perfectly complement the new bike's kinematics and smaller size.

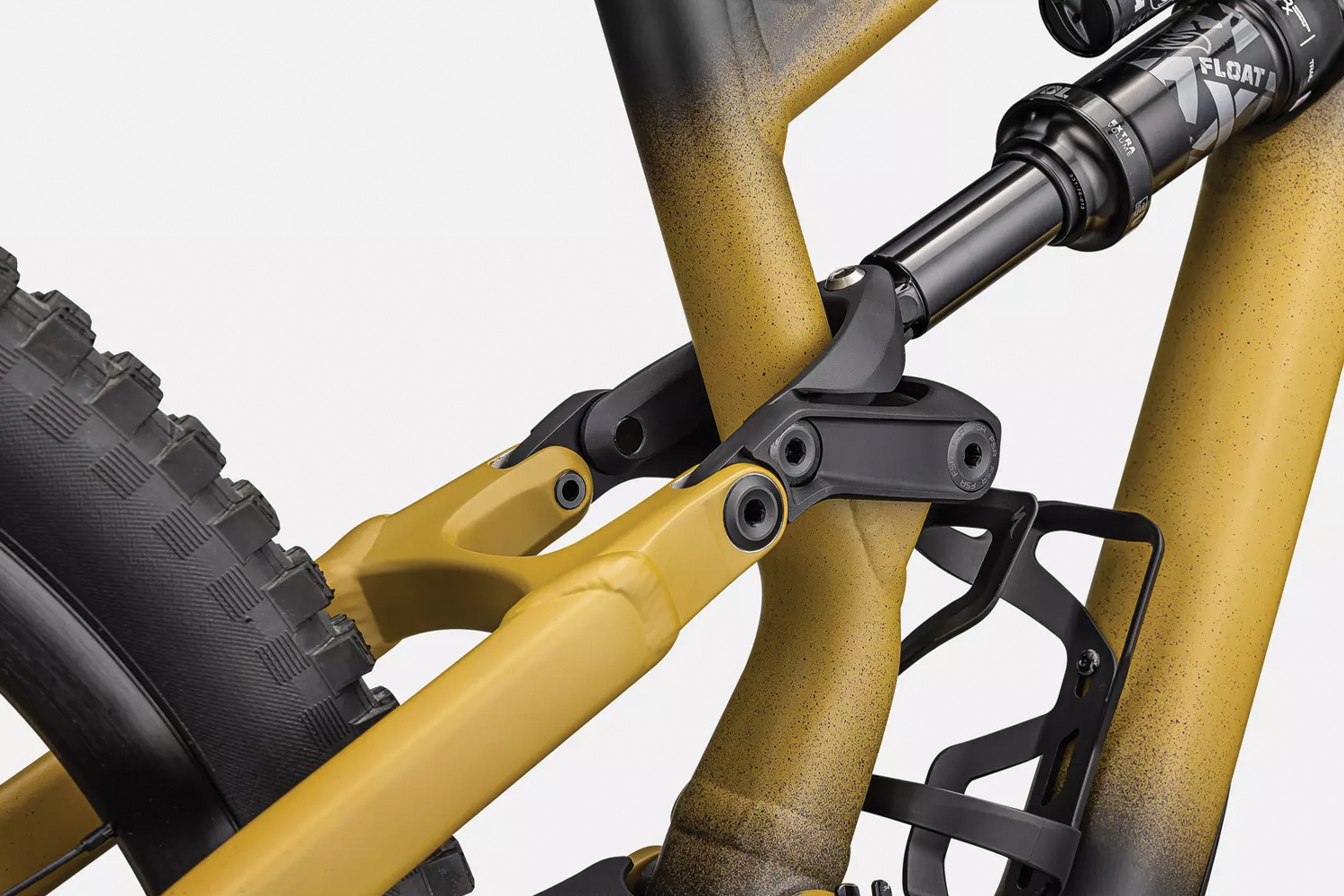

LET’S GET PERSONAL: Customize even more with neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow you to finely tune the frame’s geometry to your desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.
|
SPECS
|
|
FRAMESET |
-
-
-
-
-
Frame: M5 Alloy chassis and rear-end, Trail Geometry for 27.5 Front" and 26" rear wheels , horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
Seat Binder: Alloy, 38.6mm
|
SUSPENSION |
-
-

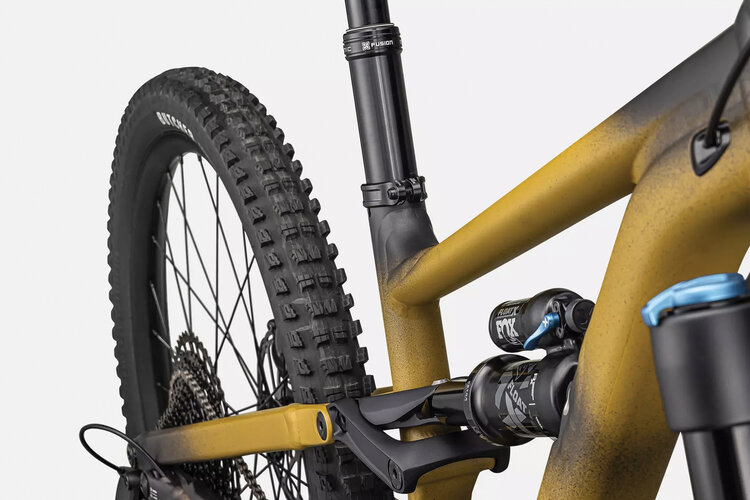

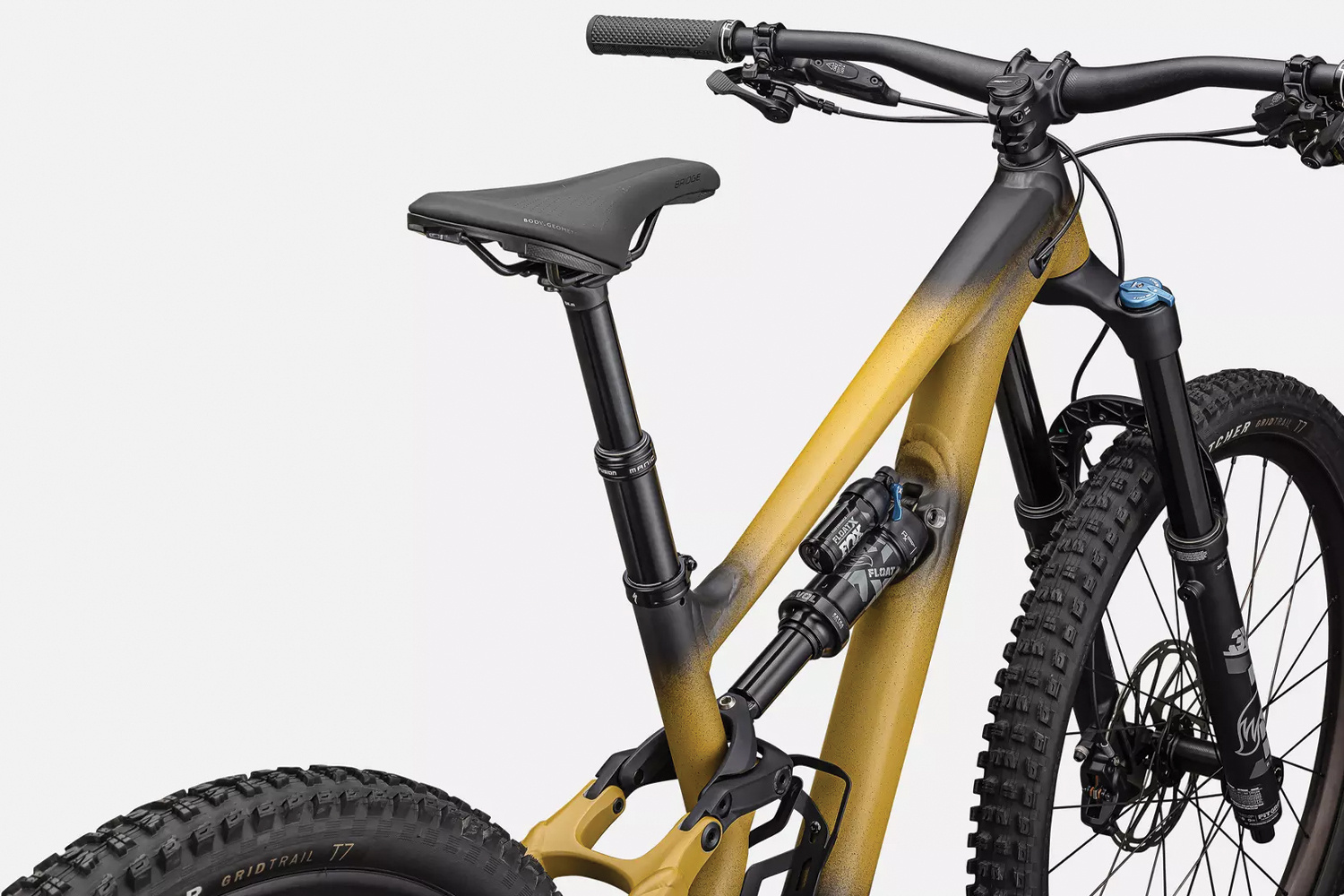

Rear Shock: FOX FLOAT X Performance, Ride Dynamics Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, 230x60mm
Fork: FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 37mm offset, 170mm of travel
|
COCKPIT |
-
-
-
-
-

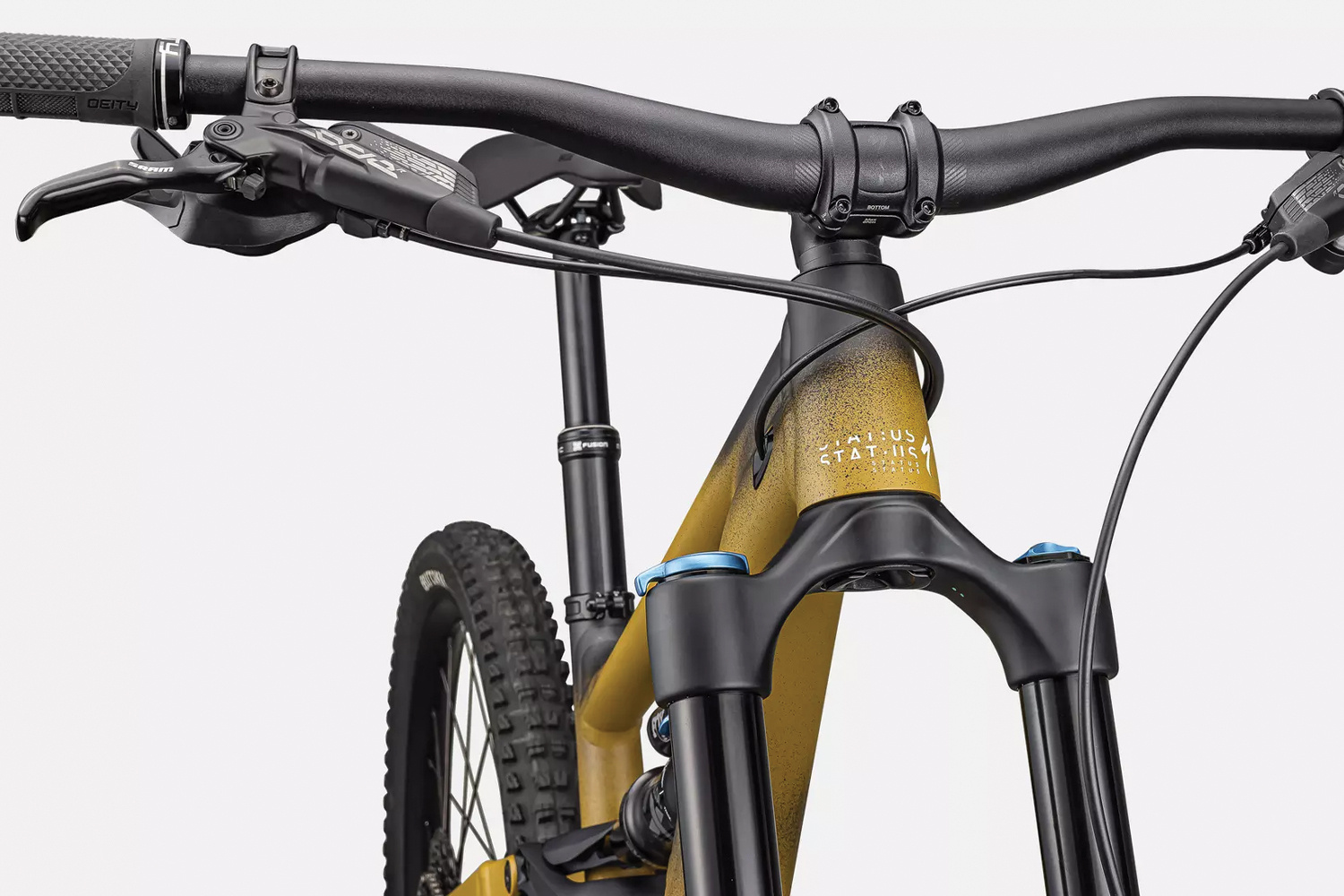

Stem: Alloy Trail Stem, 35mm bar bore
Handlebars: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 760mm width
Saddle: Bridge Saddle, steel rails, 130mm
SeatPost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 100mm
|
BRAKES |
-
-
-
-
Front Brake: SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
Rear Brake: SRAM Code R, 4-piston caliper, hydraulic disc, 180mm
|
DRIVETRAIN |
-
-
-
-
-
-
Shift Levers: SRAM NX Eagle, trigger, 12-speed
Rear Derailleur: SRAM NX Eagle, 12-speed
Cassette: SRAM NX Eagle, 12-speed, 11-50t
Chain: SRAM NX Eagle, 12-speed
Crankset: SRAM X1 Eagle, DUB,155mm, 55mm chainline, 30T
Bottom Bracket: SRAM DUB Threaded Wide
|
WHEELS & TIRES |
-
-
-
-
Rims: Roval Traverse, hookless alloy, 30mm inner width, tubeless ready. Front: 27.5", Rear: 26"
Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Spokes: DT Swiss Industry
Front Tire: Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
Rear Tire: Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 26x2.3"
Inner Tubes: Standard, Presta valve
|
WEIGHT |
- Weight: 15.56 kg (34 lb, 4.9 oz)
|
