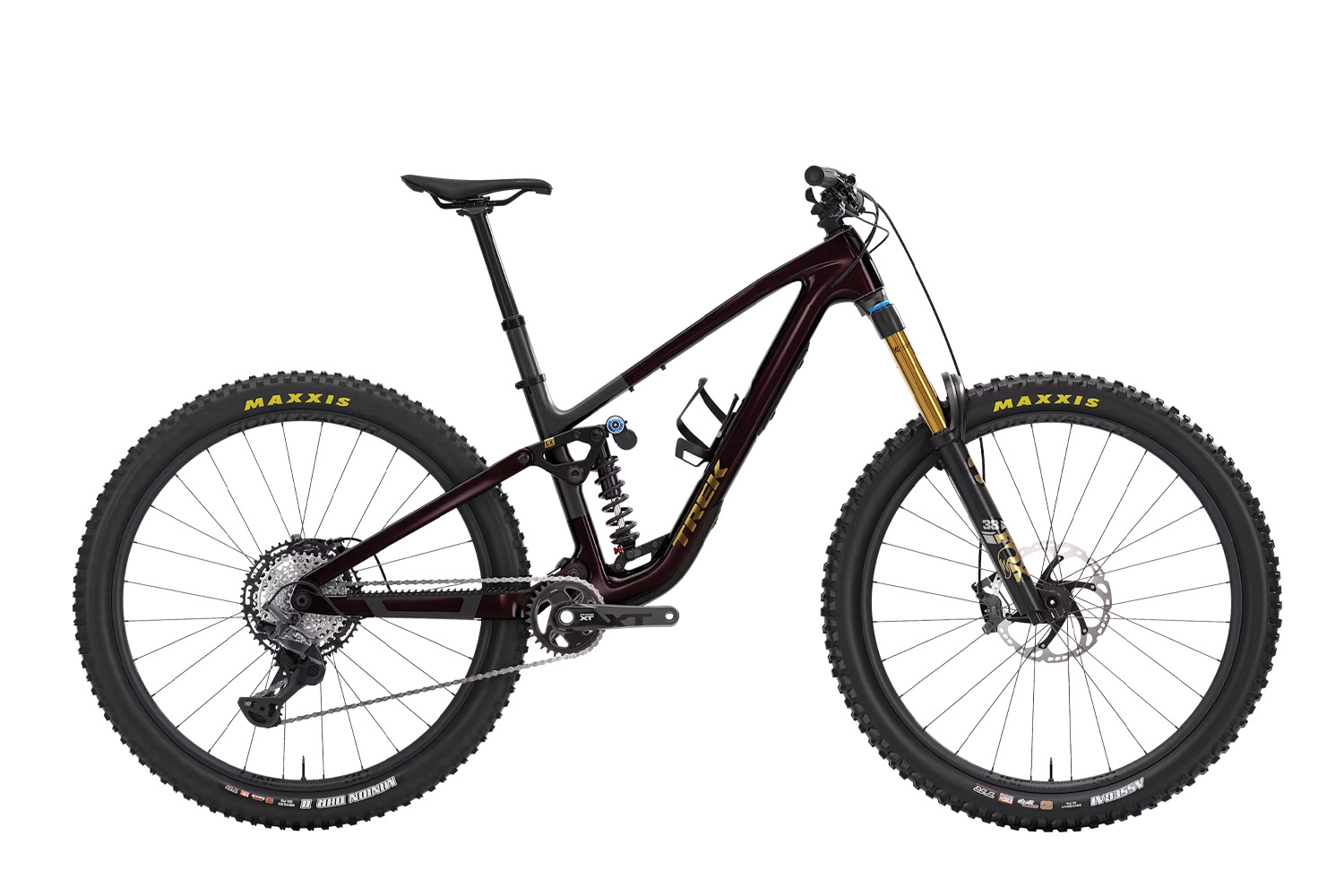

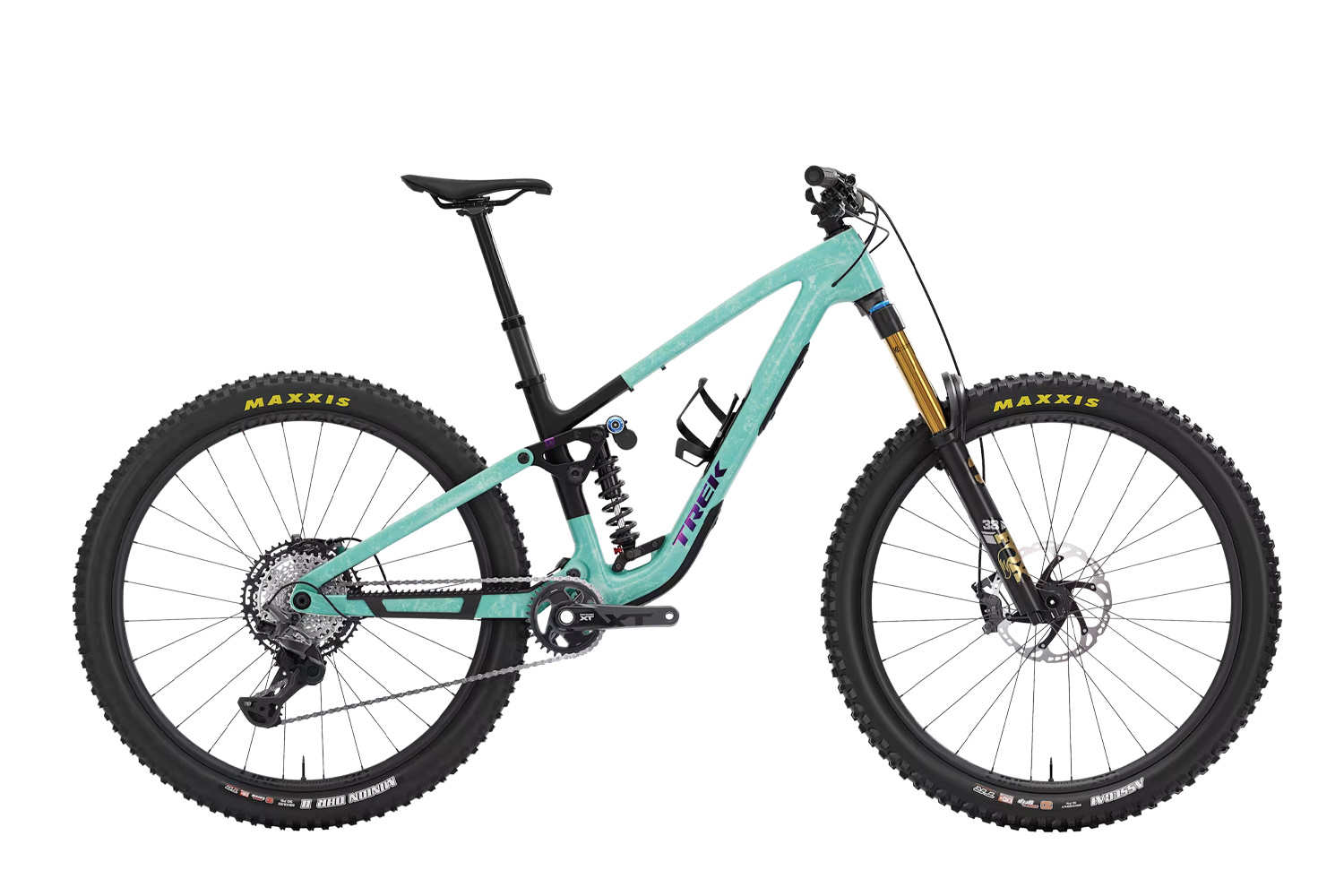

2027 Trek Fuel LX 9.8 XT — Full Suspension Mountain Bike
Available in store
CloseProduct details
IN STORE PICKUP OR LOCAL DELIVERY ONLY
If you're chasing steep, technical descents on Hydraulink Trails or the loamy lines around Knox Mountain, the Fuel LX 9.8 XT is built to charge through them with confidence. This rowdy carbon trail bike pairs an OCLV Mountain Carbon frame with a Fox Factory 38 fork and DHX2 coil shock, delivering 170mm of front and 160mm of rear travel for tackling wheel-gobbling terrain. A mechanical Shimano XT 12-speed drivetrain keeps shifting clean and reliable, while 4-piston Shimano XT brakes provide excellent modulation and stop-on-a-dime power when the trail gets steep.
|
|
|
|
KEY FEATURES |
Frame: OCLV Mountain Carbon with adjustable leverage rate, internal storage, guided internal routing, and adaptable rear travel (145mm–160mm) Fork/Shock: Fox Factory 38 fork (170mm travel, GRIP X2 damper) paired with a Fox DHX2 coil shock (160mm travel); coil spring weight rated by frame size Drivetrain: Shimano XT M8200, 12-speed mechanical, 10-51 cassette, 30T XT crank — [ Brakes: Shimano XT M8220 4-piston hydraulic disc, Shimano RT86 rotors Wheels/Tires: Bontrager Line Comp 30 tubeless-ready wheels (29", Boost110/148) with Maxxis Assegai front / Maxxis Minion DHR II rear tyres (29x2.5") Cockpit: Race Face Turbine alloy handlebar (780mm width, 40mm rise), Bontrager Elite stem, Bontrager Line Dropper post (150–200mm travel depending on size) Standout feature: UDH derailleur hanger, Boost148 spacing, and an interchangeable rocker link/shock mount for tuning geometry and travel |
|
WHO IS THIS FOR |
The Fuel LX 9.8 XT is built for an experienced rider who wants to push hard on steep, technical descents and rowdy terrain — think aggressive lines through Hydraulink Trails or Okanagan Mountain Park — without giving up pedaling efficiency on the climbs back up. They'll appreciate the coil-sprung DHX2 shock and burly Fox 38 fork for soaking up impact on the roughest sections, plus the 4-piston XT brakes for confident, controlled stopping on steep pitches. Our team at Fresh Air will help you find the right fit in-store at both Kelowna locations. Stop by to work with one of our experienced staff members, or call 250-763-3425. |
|
HOW TO SET UP |
Our team can set up your sag and rebound on both the Fox Factory 38 fork and DHX2 coil shock — including selecting the right coil spring weight for your rider weight — so the Fuel LX 9.8 XT tracks and absorbs impacts the way it should before you hit the trail. We'll route and check your Bontrager Line Dropper post, confirm your tubeless tyre setup and sealant levels, and dial in brake bleed and lever reach. We also offer ongoing suspension servicing and tubeless maintenance year-round. Drop into Fresh Air Pandosy (555 Groves Ave) or Fresh Air Dilworth (1656 Dilworth Drive), or book an appointment online. |
|
GEOMETRY & SIZING |
Frame geometry and sizing details for the Trek Fuel LX 9.8 XT are available on the Trek website. Trek offers the Fuel LX 9.8 XT in S through XXL. Our team at Fresh Air can help you find the right frame size based on your height, inseam, and riding style — come in to either Kelowna location and we'll get you dialled in. |
|
FAQ |
Q.What size Trek Fuel LX 9.8 XT do I need? Q.Is the Trek Fuel LX 9.8 XT right for riding Knox Mountain or Okanagan Mountain Park? Q.How do I set up the suspension on the Fuel LX 9.8 XT for my weight and riding style? |
SPECS |
|
| FRAMESET |
|
| WEIGHT |
Weight: 56 - 9.80 kg / 21.61 lbs
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
|
| DRIVETRAIN |
Shifter: Shimano 105 R7120, 12 speed Front Derailleur: Shimano 105 R7100, 31.8mm clamp, down swing Rear Derailleur: Shimano 105 R7100, 36T max cog *Crank: Size: 44, 49 Shimano 105 R7100, 50/34, 160mm length Size: 52, 54, 56 Shimano 105 R7100, 50/34, 165mm length Size: 58, 61 Shimano 105 R7100, 50/34, 170mm length Bottom Bracket: Shimano RS501 BSA Cassette: Shimano 105 7101, 11-34, 12 speed Chain: Shimano SLX M7100, 12 speed Max Chainring Size: 1x: 50T, 2x: 50/34 |
| WHEELS |
|
| COMPONENTS |
|
