Trek Fuel MX 9 XT Di2 Gen 7 2026
Available in store
CloseProduct details
IN STORE PICKUP OR LOCAL DELIVERY ONLY

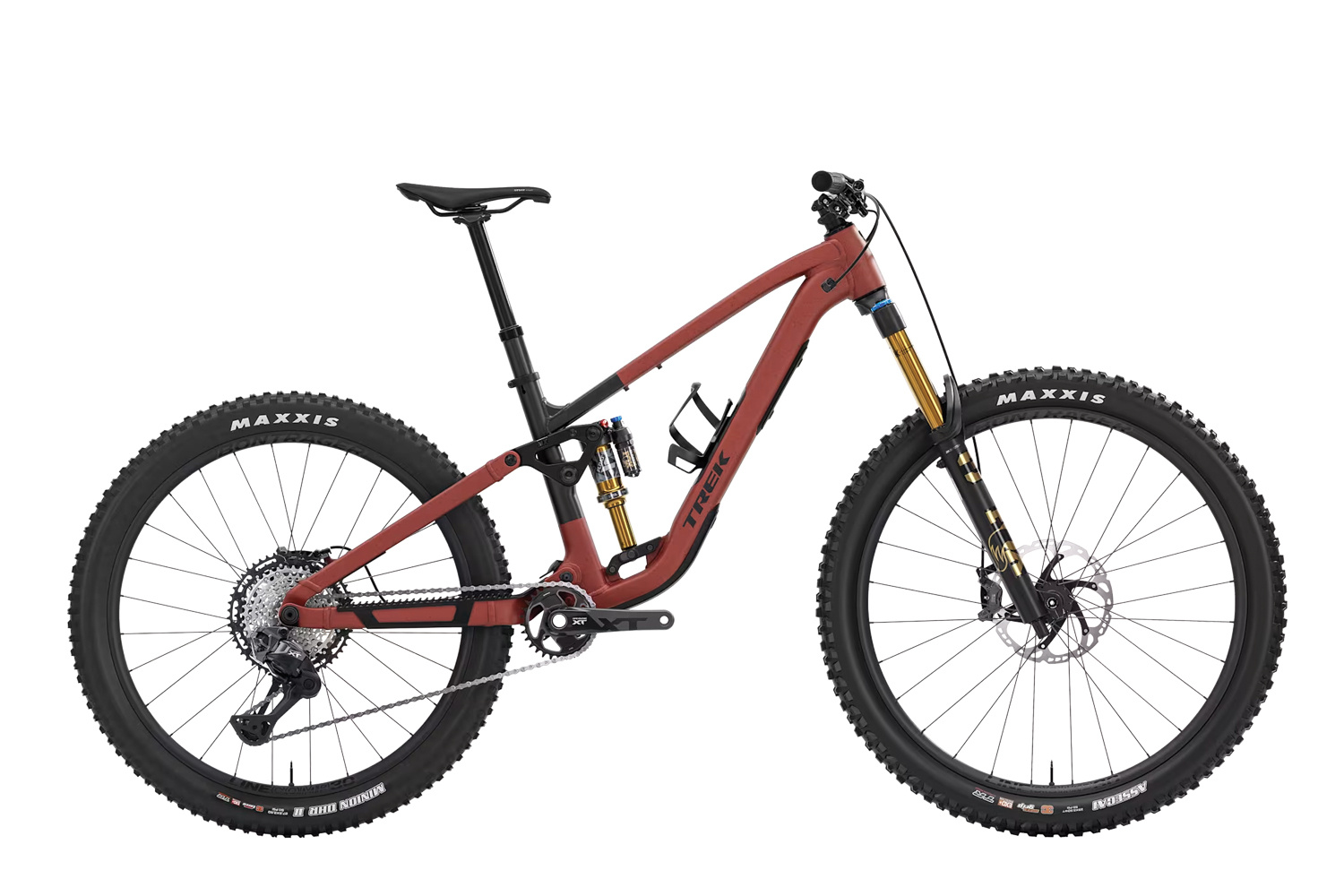

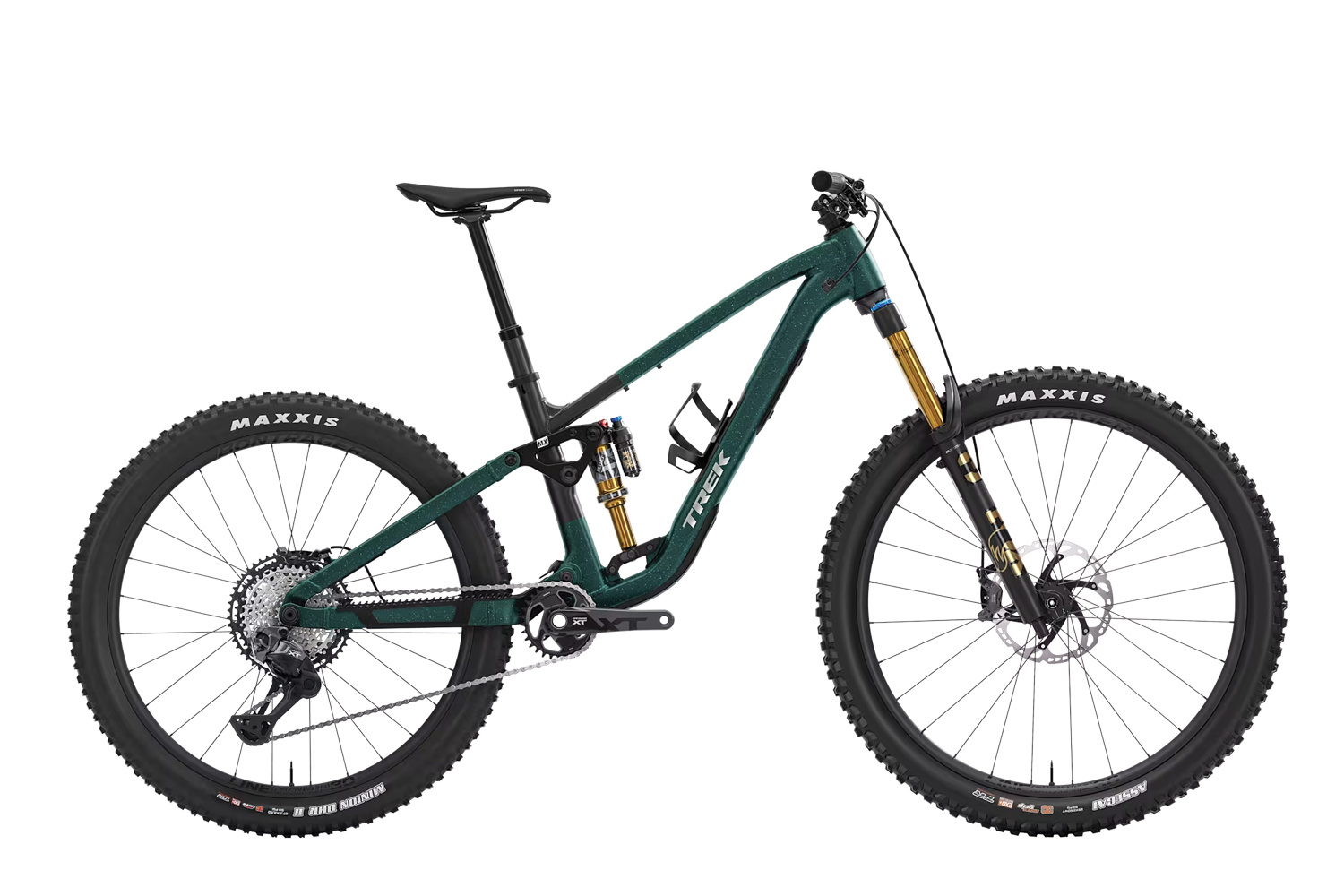

2026 Trek Fuel MX 9 XT Di2 Gen 7 – Agile Trail Slayer
The Fuel MX 9 XT Di2 is a playful, rowdy trail bike engineered for riders who chase side hits, berms, and all-around chaos. Its Alpha NEXT Platinum aluminum frame paired with a Fox Factory suspension package (150mm rear, 160mm front) and MX wheels delivers a flickable, zippy ride that thrives on technical terrain. The wireless Shimano XT Di2 12-speed drivetrain offers smooth, customizable shifting, while 4-piston XT M8200 brakes provide precise modulation and stop-on-a-dime control—perfect for charging hard, cornering fast, and making every descent count.
|
|
|
|
KEY FEATURES |
Adapt, rip, repeat: Only you can define your perfect trail bike — that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX, or charge through it all with LX. Adjustable leverage rate: Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate. Zero stack integrated headset: With a ZS standard headset, you've got tons of options for aftermarket upgrades, including angle adjust or anodized colors. Storage and accessory mounts: Stash ride essentials with in-frame storage on all Fuel models — both carbon and alloy. Plus, top tube accessory mounts let you load up even more. Fresh frame design: Fuel's new frame gives you tons of room for long dropper posts, bigger shocks, frame bags, and more. Active Braking Pivot: Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most. Shimano XT Di2: Looking for the latest in speed-enhancing technology? XT Di2 gives you light weight, lightning-fast shifts, and die-hard reliability. Plus, it's wireless and offers endless customization for the way you ride. |
SPECS |
|
| FRAMESET |
|
| WHEELS |
|
| COMPONENTS |
Saddle: Verse Short Comp, steel rails, 145mm width *Seatpost: Size: S Size: M Size: L, XL Handlebar: Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width Grips: Trek Line Elite, lock-on Stem: Bontrager Elite, 35mm, 0 degree, 45mm length Brake: Shimano XT M8200 4-piston hydraulic disc *Brake Rotor: Size: S, M, L, XL Shimano RT86, 6-bolt, 203mm Size: S, M, L, XL Shimano RT86, 6-bolt, 180mm Rotor Size: Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
|
| DRIVETRAIN |
Shifter: Shimano XT Di2 M8250, 12 speed Rear Derailleur: Shimano XT M8250, long cage Crank: Shimano XT 8200, 30T, 55mm chainline, 170mm length Bottom Bracket: Shimano BB-MT501 BSA Cassette: Shimano XT M8200, 10-51, 12 speed Chain: Shimano XT M8100, 12 speed Max Chainring Size: 1x: 34T round, 32T oval, min 30T, 32T oval |
| WEIGHT |
Weight: M - 16.96 kg / 37.4 lbs (with TLR sealant, no tubes) Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
