Trek Trek Fuel LX 9.8 XT Di2 2026
Trek Trek Fuel LX 9.8 XT Di2 2026

Trek Fuel LX 9.8 XT Di2 2026

•••••
Available in store: Check availability

Available in store

Close
+-
C$9,249.99
Add to cart
1 in stock
  • Overview
    • The 2026 Trek Fuel LX 9.8 XT Di2 Gen 7 combines coil shock suspension, TQ motor power, and wireless shifting for big trail days. Available at Fresh Air Kelowna.

Product details

IN STORE PICKUP OR LOCAL DELIVERY ONLY

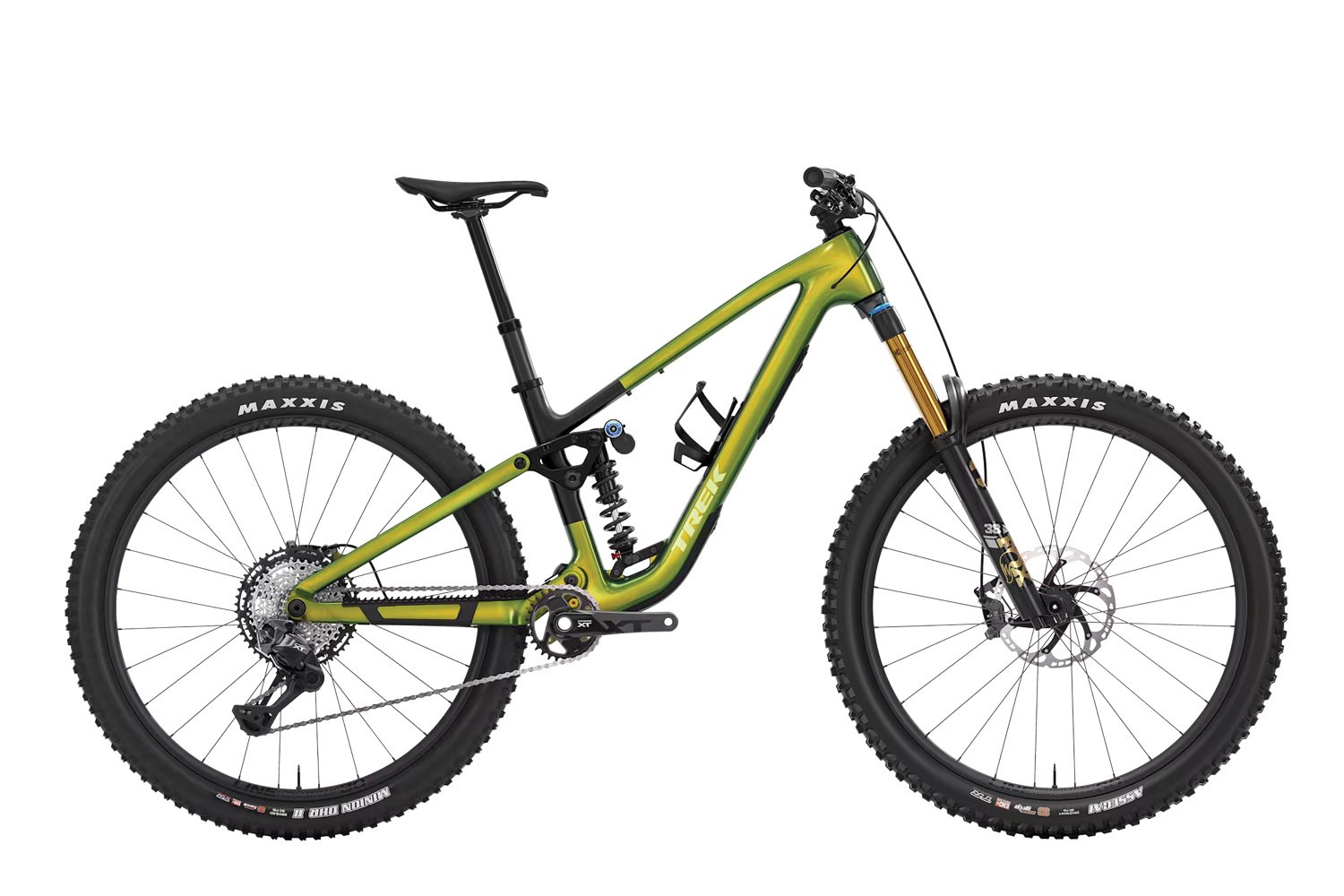

2026 Trek Fuel LX 9.8 XT Di2 Gen 7 – Aggressive Trail Precision Meets eMTB Power
Ready for rowdy lines, big hits, and endless laps with coil-sprung confidence and TQ-powered punch.

The 2026 Trek Fuel LX 9.8 XT Di2 Gen 7 is a hard-charging carbon electric mountain bike built for riders who demand top-tier performance on the steepest, gnarliest trails. With an OCLV Mountain Carbon frame, TQ HPR60 motor, and a suspension combo featuring a Fox Factory 38 fork and DHX2 coil shock (170mm front / 160mm rear), this bike thrives in big terrain.

The wireless Shimano XT Di2 12-speed drivetrain offers smooth, customizable shifting without cable clutter, while Shimano XT M8200 4-piston brakes ensure maximum stopping power with precision control. Whether you're hunting for freeride flow or back-to-back tech laps, the Fuel LX 9.8 XT Di2 Gen 7 delivers raw capability and responsive ride feel in every condition.





IT'S RIGHT FOR YOU IF



THE TECH YOU GET



THE FINAL WORD



WHY YOU'LL LOVE IT



SPECS


FRAMESET

Frame: Size: S, XL, L, M, XXL
OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm

Fork: Size: S, XL, L, M, XXL
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel

Shock: Size: S, XL, L, M, XXL
Fox DHX2, 205mm x 65mm

Suspension Part: Size: S
Fox steel coil spring, 250lbs

Size: M
Fox steel coil spring, 350lbs

Size: L
Fox steel coil spring, 400lbs

Size: XL
Fox steel coil spring, 450lbs

Size: XXL
Fox steel coil spring, 500 lbs
WHEELS

Front Wheel: Size: S, XL, L, M, XXL
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"

Rear Wheel: Size: S, XL, L, M, XXL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29"

Rear Skewer: Size: S, XL, L, M, XXL
Bontrager Switch thru axle, removable lever

*Tire: Size: S, XL, L, M, XXL
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''

Size: S, XL, L, M, XXL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''

Tire Part: Size: S, XL, L, M, XXL
Bontrager TLR sealant, 180 ml/6 oz

Max Tire Size: Frame: 29x2.50", Fork: See manufacturer
COMPONENTS

Saddle: Size: S, XL, L, M, XXL
Verse Short Pro, carbon rails, 145mm width

*Seatpost: Size: S
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length

Size: M
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length

Size: XL, L, XXL
Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length

Handlebar: Size: S, XL, L, M, XXL
Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width

Grips: Size: S, XL, L, M, XXL
Trek Line Elite, lock-on

Stem: Size: S, XL, L, M, XXL
Bontrager Elite, 35mm, 0 degree, 45mm length

Brake: Size: S, XL, L, M, XXL
Shimano XT M8200 4-piston hydraulic disc

*Brake Rotor: Size: S, XL, L, M, XXL
Shimano RT86, 6-bolt, 203mm

Size: S, XL, L, M, XXL
Shimano RT86, 6-bolt, 180mm

Rotor Size: Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

DRIVETRAIN

Shifter: Size: S, XL, L, M, XXL
Shimano XT Di2 M8250, 12 speed

Rear Derailleur: Size: S, XL, L, M, XXL
Shimano XT M8250, long cage

Crank: Size: S, XL, L, M, XXL
Shimano XT 8200, 30T, 55mm chainline, 170mm length

Bottom Bracket: Size: S, XL, L, M, XXL
Shimano BB-MT501 BSA

Cassette: Size: S, XL, L, M, XXL
Shimano XT M8200, 10-51, 12 speed

Chain: Size: S, XL, L, M, XXL
Shimano Ultegra/XT M8100, 12 speed

Max Chainring Size: 1x: 34T round, 32T oval, min 30T, 32T oval
WEIGHT

Weight: M - 15.97 kg / 35.21 lbs (with TLR sealant, no tubes)

Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
