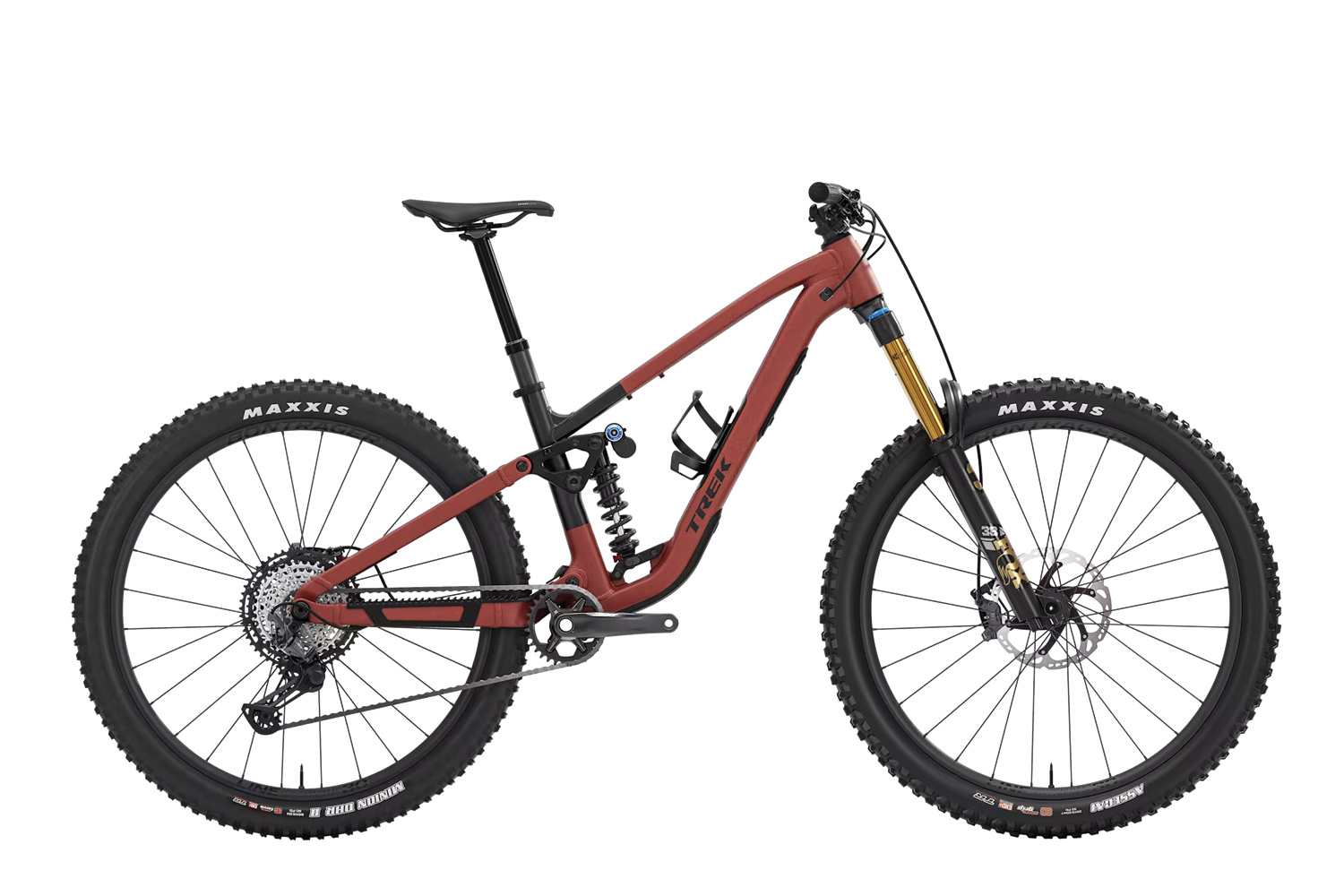

2026 Trek Fuel LX 9 XT Gen 7 – Hard-Charging Aluminum Trail Bike
Rowdy Descents. Reliable Shifting.
The 2026 Trek Fuel LX 9 XT is built for riders who demand control, precision, and performance on aggressive trails. Its adaptable Alpha NEXT Platinum aluminum frame pairs with a Fox Factory 38 fork and DHX2 coil shock (170mm front, 160mm rear) to handle steep, technical terrain with confidence. A mechanical Shimano XT 12-speed drivetrain delivers clean, reliable shifting, while 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power. Perfect for rowdy laps and challenging descents where performance matters most.
|
|
|
|
KEY FEATURES |
Adapt, rip, repeat - Only you can define your perfect trail bike — that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX, or charge through it all with LX. Adjustable leverage rate - Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate. Zero stack integrated headset - With a ZS standard headset, you've got tons of options for aftermarket upgrades, including angle adjust or anodized colors. Storage and Accessory Mounts - Stash ride essentials with in-frame storage on all Fuel models — both carbon and alloy. Plus, top tube accessory mounts let you load up even more. Fresh frame design - Fuel's new frame gives you tons of room for long dropper posts, bigger shocks, frame bags, and more. Active Braking Pivot - Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most. |
SPECS |
|
| FRAMESET |
|
| WHEELS |
|
| DRIVETRAIN |
Shifter: Shimano XT M8100, 12 speed Rear Derailleur: Shimano XT M8100, long cage Crank: Shimano XT M8120, 30T, 55mm chainline, 170mm length Bottom Bracket: Shimano BB-MT501 BSA Cassette: Shimano XT M8200, 10-51, 12 speed Chain: Shimano XT M8100, 12 speed Max Chainring Size: 1x: 34T round, 32T oval, min 30T, 32T oval |
| COMPONENTS |
Saddle: Verse Short Comp, steel rails, 145mm width *Saddle: Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length Size: M Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length Size: L, XL Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length Handlebar: Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width Grips: Trek Line Elite, lock-on Stem: Bontrager Elite, 35mm, 0 degree, 45mm length Brake: Shimano XT M8200 4-piston hydraulic disc *Brake Rotor: Size: S, M, L, XL Shimano RT86, 6-bolt, 203mm Size: S, M, L, XL Shimano RT86, 6-bolt, 180mm Rotor Size: Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |
| WEIGHT |
Weight: M - 17.79 kg / 39.23 lbs (with TLR sealant, no tubes) Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
