Trek Trek Fuel LX 9 Eagle 90 Gen 7 2026
Trek Trek Fuel LX 9 Eagle 90 Gen 7 2026

Trek Fuel LX 9 Eagle 90 Gen 7 2026

•••••
Available in store: Check availability

Available in store

Close
C$7,299.99
Out of stock
Out of stock
  • Overview
    • Ride steep trails with confidence on the 2026 Trek Fuel LX 9 Eagle 90. Alpha NEXT Platinum aluminum frame, Fox Factory suspension, SRAM Eagle 90 drivetrain, and 4-piston brakes. Available at Fresh Air Kelowna.

Product details

IN STORE PICKUP OR LOCAL DELIVERY ONLY

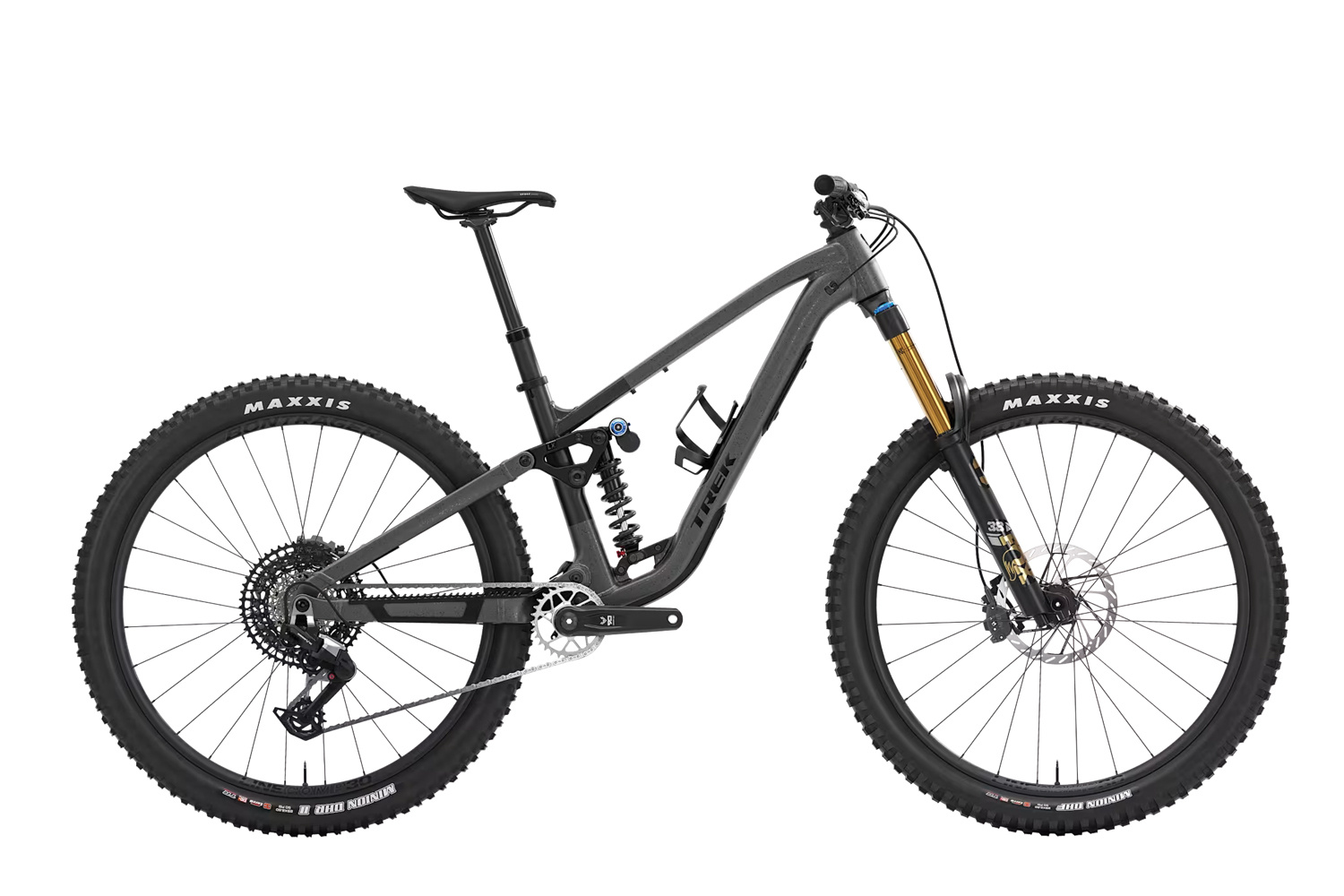

2026 Trek Fuel LX 9 Eagle 90 Gen 7 – Hard-Charging Aluminum Trail Bike

Rowdy Descents. Smooth Control.

The 2026 Trek Fuel LX 9 Eagle 90 is a trail-ready powerhouse built for riders who demand precision, power, and confidence on every lap. Its adaptable Alpha NEXT Platinum aluminum frame pairs with a Fox Factory 38 fork and DHX2 coil shock (170mm front, 160mm rear) to handle steep, technical terrain with ease. The SRAM Eagle 90 drivetrain delivers smooth, reliable mechanical shifting, while SRAM Maven Bronze 4-piston brakes provide powerful stopping control when the trail gets rowdy. Perfect for riders seeking a bike that excels on aggressive descents and challenging trails.





KEY FEATURES



SPECS


FRAMESET

Frame: Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm

Fork: Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel

Shock: Fox DHX2, 205mm x 65mm

*Suspension Part: Size: S Fox steel coil spring, 250lbs

Size: M Fox steel coil spring, 350lbs

Size: L Fox steel coil spring, 400lbs

Size: XL Fox steel coil spring, 450lbs
WHEELS

Front Wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"

Rear Wheel: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 29''

Rear Skewer: Bontrager Switch thru axle, removable lever

*Tire: Size: S, M, L, XL Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''

Size: S, M, L, XL Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''

Tire Part: Bontrager TLR sealant, 180 ml/6 oz

Max Tire Size: Frame: 29x2.50", Fork: See manufacturer
DRIVETRAIN

Shifter: SRAM Eagle 90, 12 speed

Rear Derailleur: SRAM Eagle 90, T-Type

Crank: SRAM Eagle 90, DUB, 30T steel, T-Type, 55mm chainline, 170mm length

Bottom Bracket: SRAM DUB MTB Wide, 73mm, BSA threaded

Cassette: SRAM Eagle XS-1275, T-Type, 10-52, 12 speed

Chain: SRAM GX Eagle, T-Type, 12 speed

Max Chainring Size: 1x: 34T round, 32T oval, min 30T, 32T oval
COMPONENTS

Saddle: Verse Short Comp, steel rails, 145mm width

*Saddle: Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length

Size: M Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length

Size: L, XL Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length

Handlebar: Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width

Grips: Trek Line Elite, lock-on

Stem: Bontrager Elite, 35mm, 0 degree, 45mm length

Brake: SRAM Maven Bronze 4-piston hydraulic disc

Brake Rotor: Size: S, M, L, XL SRAM HS2, 6-bolt, 180mm

Size: S, M, L, XL SRAM HS2, 6-bolt, 200mm

Rotor Size: Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
WEIGHT

Weight: M - 17.38 kg / 38.32 lbs (with TLR sealant, no tubes)

Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
