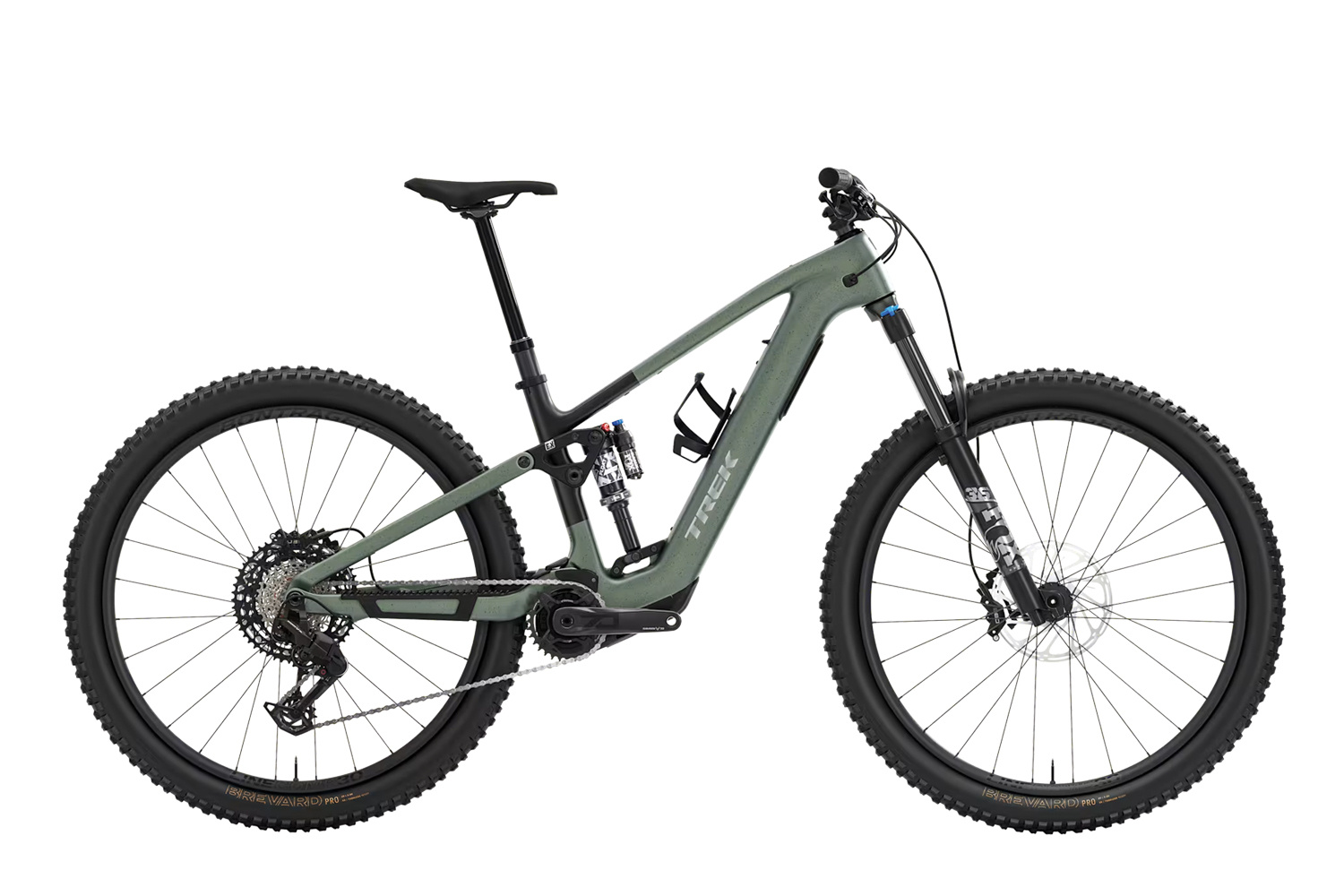

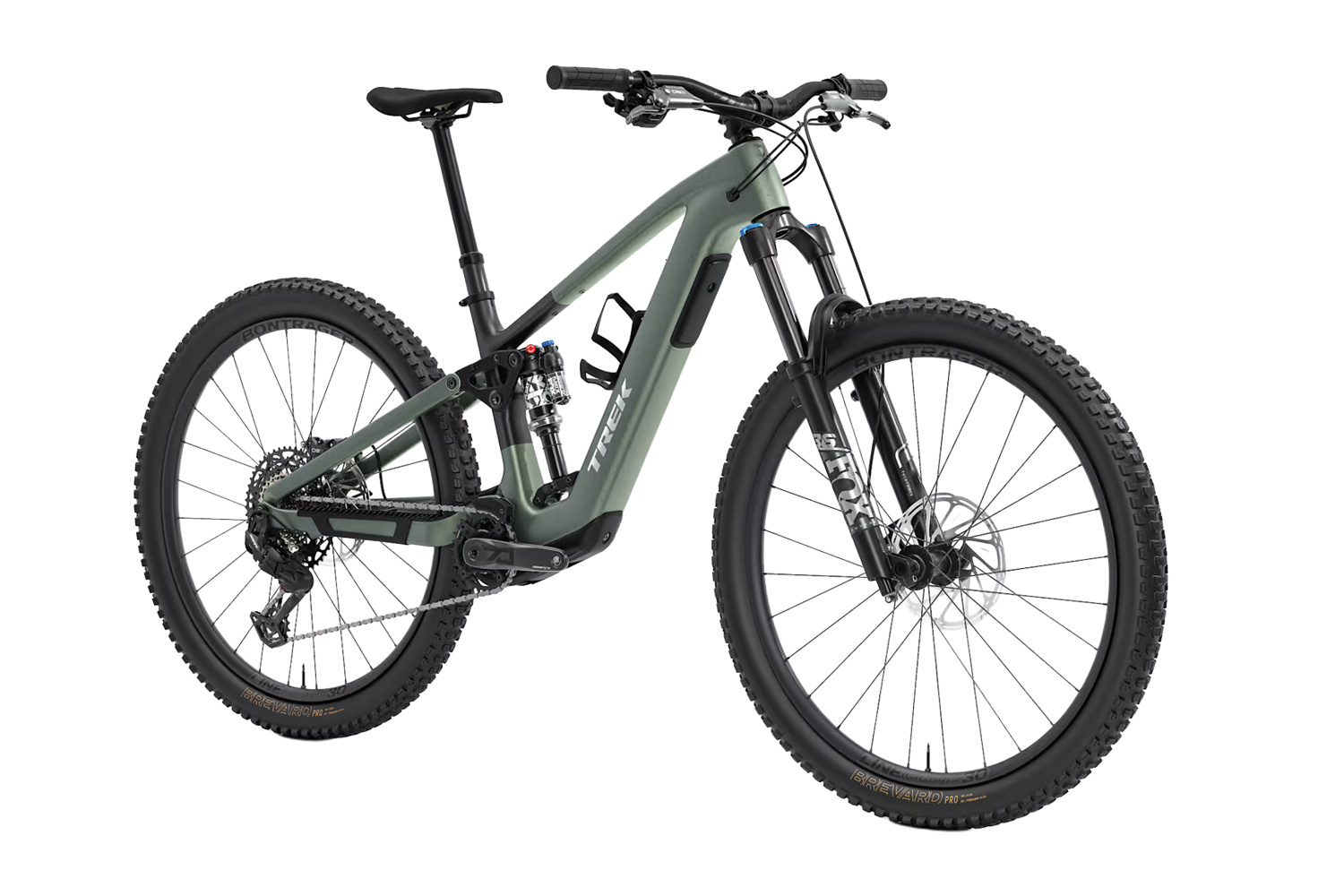

Trek Fuel+ EX 9.7 Gen 2 — 2026 E-MTB
Available in store
CloseProduct details
IN STORE PICKUP OR LOCAL DELIVERY ONLY
Long days linking climbs on Knox Mountain with laps through Okanagan Mountain Park call for a bike that can go the distance without giving up trail feel. The Trek Fuel+ EX 9.7 Gen 2 pairs an OCLV Mountain Carbon frame with the ultra-quiet TQ HPR60 motor and a big 580Wh battery — offering roughly 60% more range than the previous-generation Fuel EXe — plus 150mm of front travel and 140mm out back through Fox suspension, and SRAM's tool-free Eagle T-Type drivetrain for durable, precise shifting.
| KEY FEATURES |

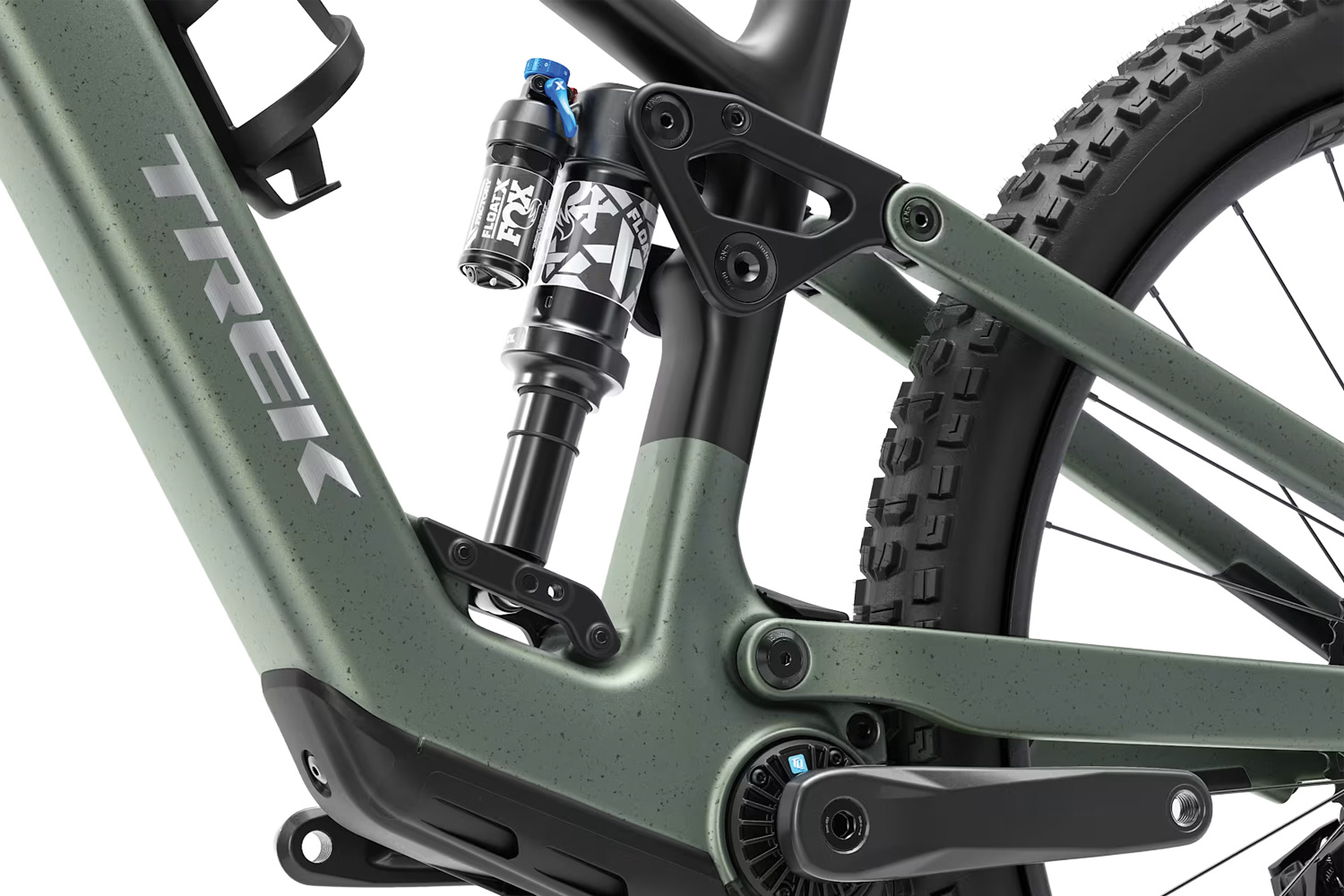

Frame: OCLV Mountain Carbon frame with a removable battery, angle-adjust ZS headset, adjustable leverage-rate flip chip, Active Braking Pivot, and adaptable travel from 145mm to 160mm Motor: TQ-HPR60 motor, ultra-compact and whisper-quiet, with 60Nm of torque and 350 watts of peak power, kicking in at a lower cadence for an earlier boost Fork / Rear Shock: Fox Rhythm 36 fork with Float EVOL air spring and GRIP damper (150mm travel), paired with a Fox Performance Float X 2-position shock (140mm travel) Drivetrain: SRAM Eagle 70 T-Type 12-speed shifter and derailleur (hanger-free, direct-mount), SRAM Eagle 70 crank, SRAM Eagle XS-1270 10-52 cassette Brakes: SRAM DB 8 4-piston hydraulic disc brakes with SRAM Centerline 2.0 200mm rotors Standout feature: Fresh frame design with room for range extenders, long dropper posts, and frame bags, plus a TQ LED display with Bluetooth and ANT+ connectivity |
| WHO IS THIS FOR? |
This bike suits a trail rider who wants a lighter, quieter e-MTB with enough battery capacity for big days linking climbs on Knox Mountain with descents through Okanagan Mountain Park. They'll appreciate the increased range over the previous-generation Fuel EXe, the earlier-kicking-in TQ HPR60 boost on steep pitches, and SRAM's durable, hanger-free Eagle T-Type shifting that holds up under load. Our team at Fresh Air will help you find the right fit in-store at both Kelowna locations. Stop by to work with one of our experienced staff members, or call 250-763-3425. |
| HOW TO SET UP |
As a Trek dealer, our team can walk you through the TQ display and connectivity setup, and personalize your assist modes to balance power and range for the terrain you ride most. We'll set your sag, rebound, and compression on the Fox 36 fork and Float X shock to match your weight and riding style, and route and adjust your Bontrager Line dropper post for full use of its travel. We also offer ongoing e-bike servicing, firmware updates, and suspension tuning as your riding progresses. Drop into Fresh Air Pandosy (555 Groves Ave) or Fresh Air Dilworth (1656 Dilworth Drive), or book an appointment online. |
|
FAQ |
Q1: What size Trek Fuel+ EX 9.7 Gen 2 do I need? Q2: Is the Fuel+ EX 9.7 Gen 2 right for Knox Mountain and Okanagan Mountain Park trails? Q3: How far can I ride on a single charge, and what factors affect range? |
SPECS |
|
| FRAMESET |
|
| WHEELS |
|
| E SYSTEM |
Battery: TQ 580Wh Charger: TQ 4A charger Computer: TQ LED display with Bluetooth & ANT+ connectivity Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| DRIVETRAIN |

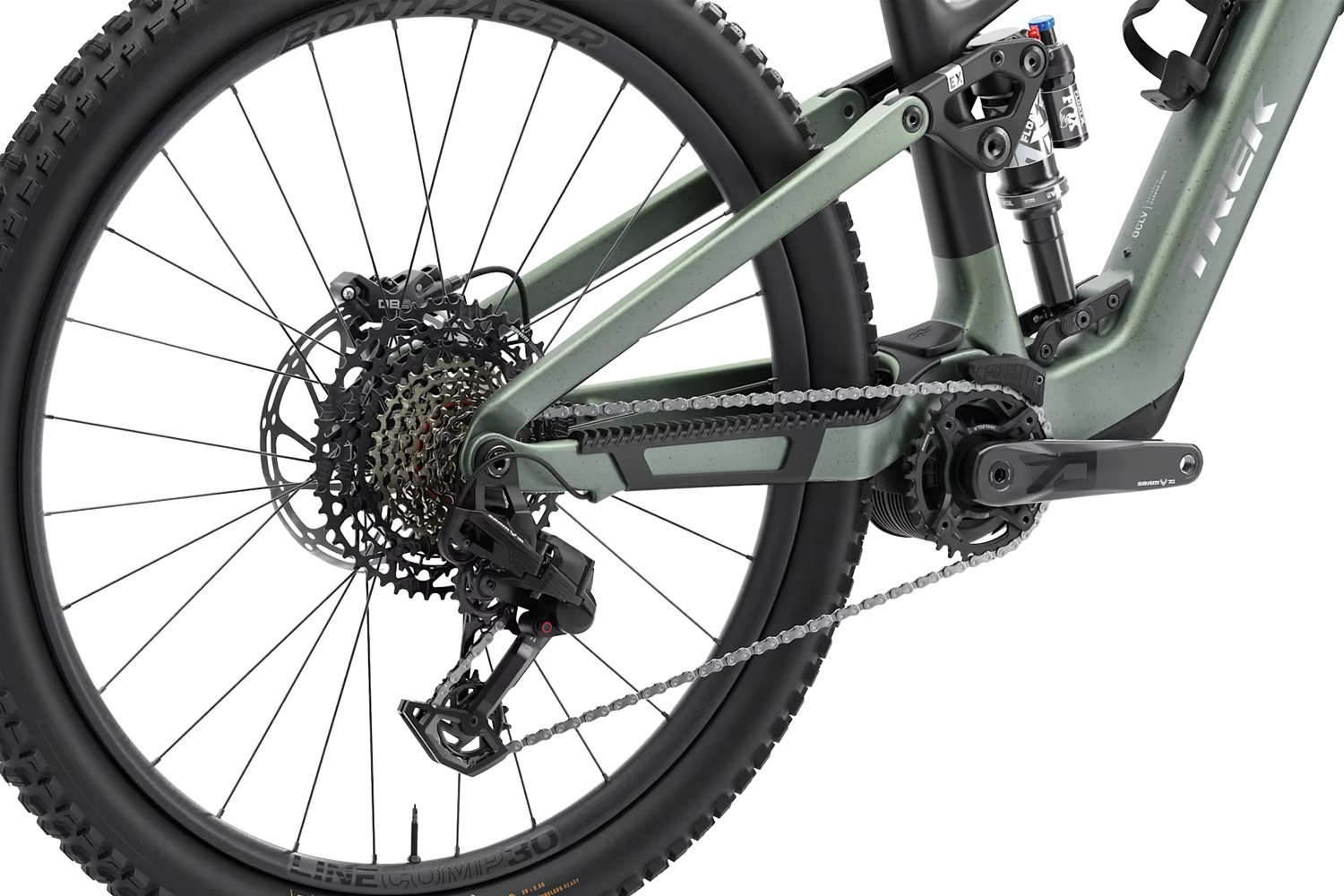

Shifter: SRAM Eagle 70, 12 speed Rear Derailleur: SRAM Eagle 70, T-Type Crank: SRAM EAGLE 70, 160mm length Chain Ring: SRAM T-Type, 32T, alloy Cassette: SRAM Eagle XS-1270, T-Type,10-52, 12 speed Chain: SRAM Eagle 70, T-Type, 12 speed Max Chainring Size: 1x: 34T, min 30T |
| COMPONENTS |
Saddle: Bontrager Verse P3, chromoly rails *Seatpost: Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length Size: M Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length Size: XL, L, XXL Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length Handlebar: Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width Grips: Trek Line Elite, lock-on Stem: Bontrager Elite, 35mm, 0 degree, 45mm length Headset: FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown Brake: SRAM DB 8 4-piston hydraulic disc Brake Rotor: SRAM Centerline 2.0, 6-bolt, 200mm Rotor Size: Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |
| WEIGHT |
Weight: M - 19.73 kg / 43.5 lbs (with TLR sealant, no tubes) Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
