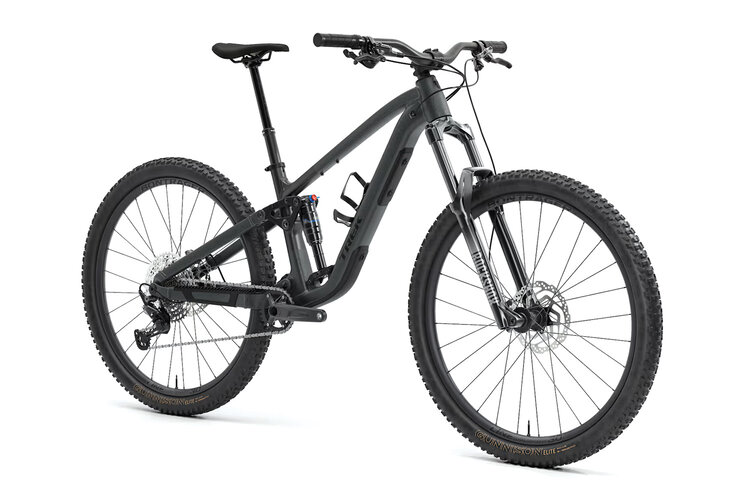

Trek Fuel EX 5 2026

•••••
Available in store: Check availability

Available in store

Close
C$3,499.99
Out of stock
Out of stock
  • Overview
    • Ride any trail with the 2026 Trek Fuel EX 5—featuring 130mm suspension, Shimano Deore 12-speed drivetrain, and a TranzX dropper. Available at Fresh Air Kelowna.

Product details

IN STORE PICKUP OR LOCAL DELIVERY ONLY

2026 Trek Fuel EX 5 – Trail-Ready Versatility with Proven Performance
A capable all-around trail bike built to explore more and push further.

The 2026 Trek Fuel EX 5 is your go-to full-suspension mountain bike for tackling everything from mellow singletrack to technical descents. Its Alpha NEXT Platinum aluminum frame is matched with a 130mm RockShox Recon Silver fork and a 130mm X-Fusion Pro 2 rear shock, delivering smooth, confidence-inspiring performance wherever the trail leads.

With tubeless-ready wheels for fewer flats and better traction, a reliable 12-speed Shimano Deore drivetrain, and a TranzX dropper post for on-the-fly seat adjustment, the Fuel EX 5 is fully equipped for weekend adventures and after-work trail laps alike. It’s a versatile, no-nonsense rig that’s built to ride.





IT'S RIGHT FOR YOU IF



THE TECH YOU GET



THE FINAL WORD



WHY YOU'LL LOVE IT



SPECS


FRAMESET

Mainframe: Size: S, XL, L, M
Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm

Fork: Size: S, XL, L, M
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 160mm travel

Shock: Size: S, XL, L, M
Fox Factory Float X, 205mm x 60mm
WHEELS

Front Wheel: Size: S, XL, L, M
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"

Rear Wheel: Size: S, XL, L, M
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 27.5''

Rear Skewer: Size: S, XL, L, M
Bontrager Switch thru axle, removable lever

*Tire: Size: S, XL, L, M
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''

Size: S, XL, L, M
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5'

Tire Part: Size: S, XL, L, M
Bontrager TLR sealant, 180 ml/6 oz

Max Tire Size: Frame: 29x2.50", Fork: See manufacturer
COMPONENTS

Saddle: Size: S, XL, L, M
Verse Short Comp, steel rails, 145mm width

*Seatpost: Size: S
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length

Size: M
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length

Size: XL, L
Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length

Handlebar: Size: S, XL, L, M
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width

Grips: Size: S, XL, L, M
Trek Line Elite, lock-on

Stem: Size: S, XL, L, M
Bontrager Elite, 35mm, 0 degree, 45mm length

Brake: Size: S, XL, L, M
SRAM Maven Bronze 4-piston hydraulic disc

*Brake Rotor: Size: S, XL, L, M
SRAM HS2, 6-bolt, 180mm

Size: S, XL, L, M
SRAM HS2, 6-bolt, 200mm

Rotor Size: Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer


DRIVETRAIN

Shifter: Size: S, XL, L, M
SRAM Eagle 90, 12 speed

Rear Derailleur: Size: S, XL, L, M
SRAM Eagle 90, T-Type

Crank: Size: S, XL, L, M
SRAM Eagle 90, DUB, 30T steel, T-Type, 55mm chainline, 170mm length

Bottom Bracket: Size: S, XL, L, M
SRAM DUB MTB Wide, 73mm, BSA threaded

Cassette: Size: S, XL, L, M
SRAM Eagle XS-1275, T-Type, 10-52, 12 speed

Chain: Size: S, XL, L, M
SRAM GX Eagle, T-Type, 12 speed

Max Chainring Size: 1x: 34T round, 32T oval, min 30T, 32T oval


WEIGHT

Weight: M - 16.78 kg / 37 lbs (with TLR sealant, no tubes)

Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
