Trek Checkpoint+ SL 7 AXS 2026

•••••
Available in store: Check availability

Available in store

Close
C$9,999.99
Out of stock
Out of stock
  • Overview
    • Ride farther with the 2026 Trek Checkpoint+ SL 7 AXS. OCLV Carbon frame, TQ HPR60 motor, RockShox Rudy XPLR fork, SRAM Force AXS 12-speed wireless drivetrain, and Bontrager carbon wheels. Available at Fresh Air Kelowna.

Product details

IN STORE PICKUP OR LOCAL DELIVERY ONLY

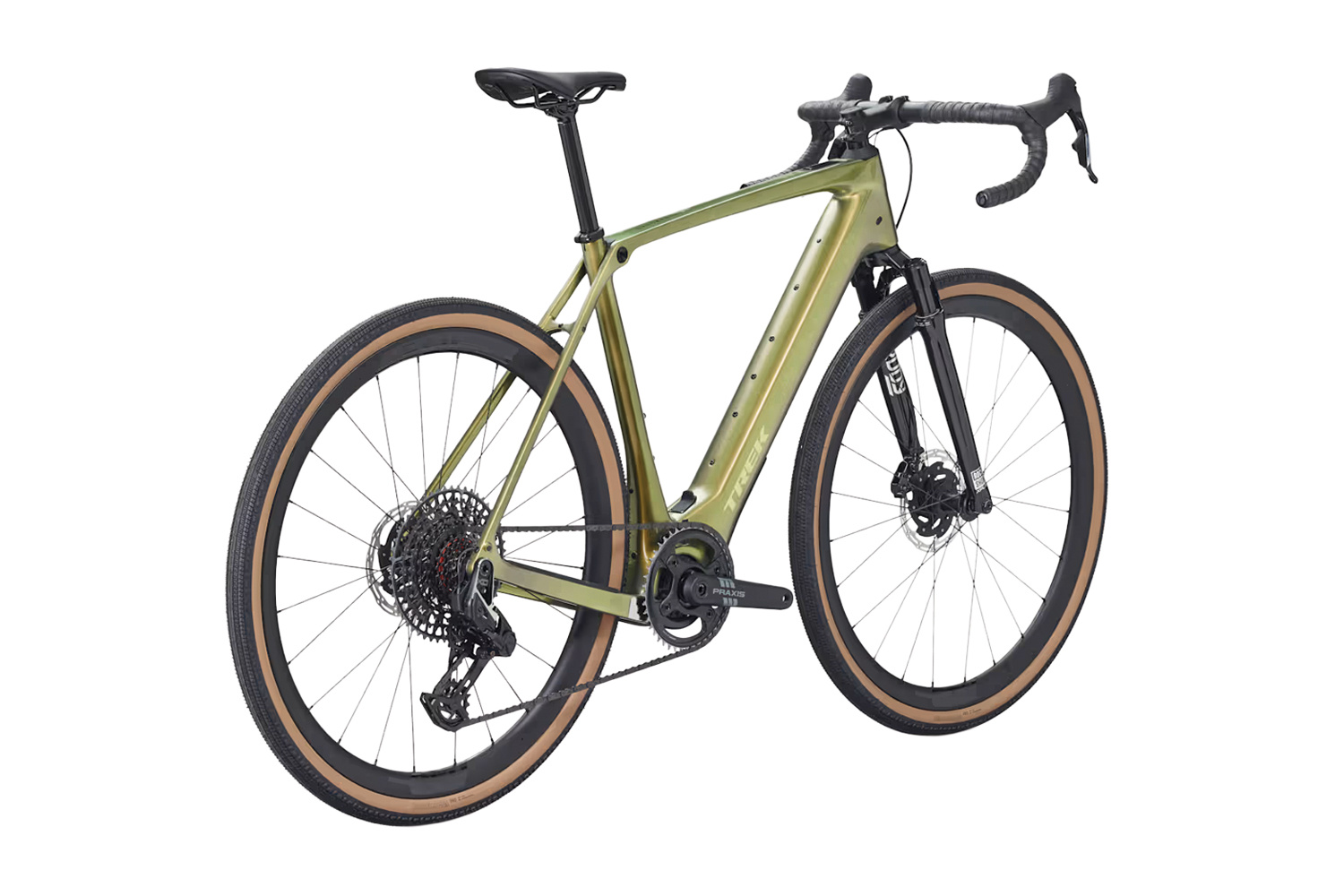

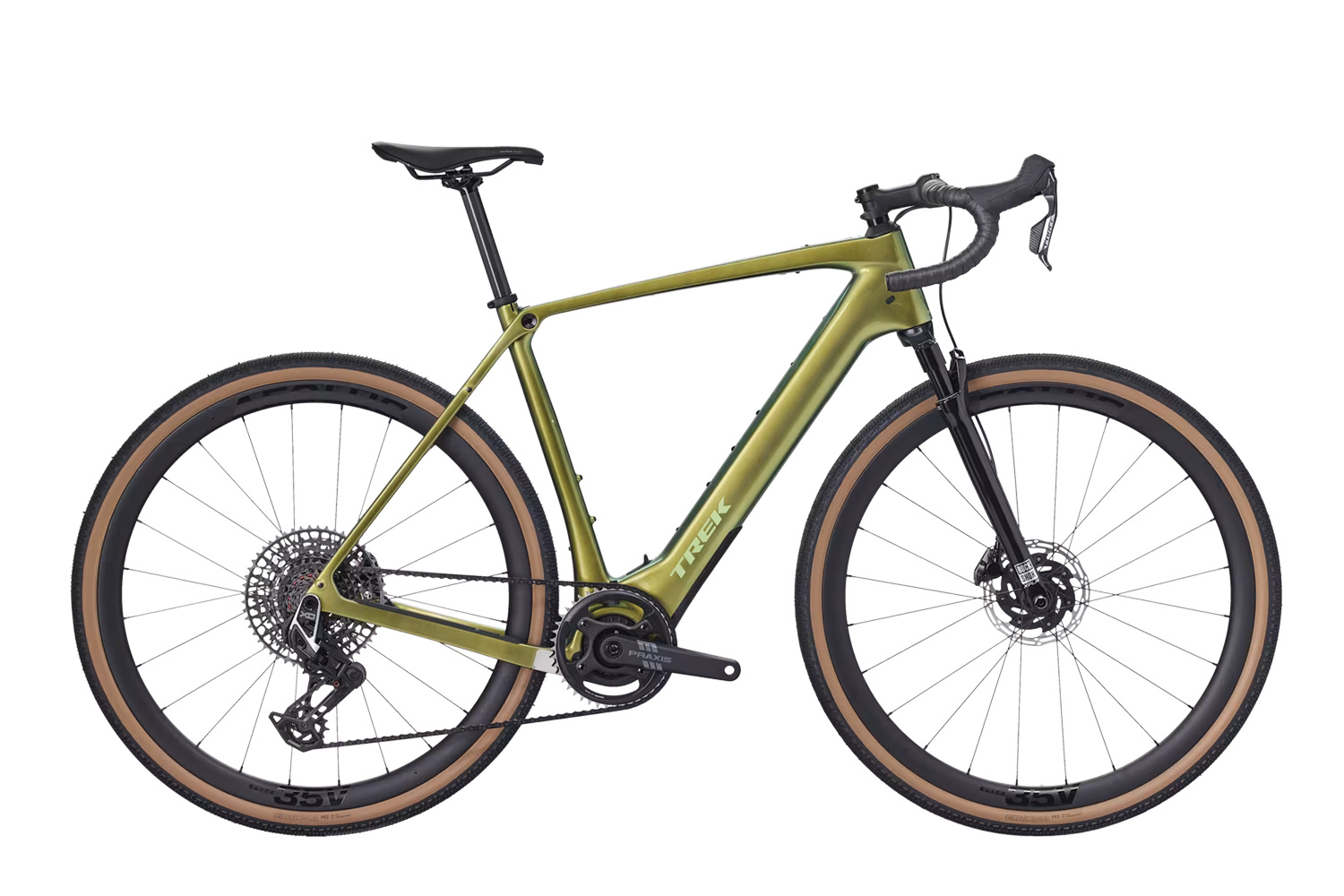

2026 Trek Checkpoint+ SL 7 AXS – Premium Electric Carbon Gravel Bike
Go farther, ride smoother, and take on any adventure.

The 2026 Trek Checkpoint+ SL 7 AXS is engineered for big gravel adventures with the perfect balance of speed, comfort, and power. Its lightweight OCLV Carbon frame is paired with a TQ HPR60 motor for a smooth, natural-feeling boost on every climb. A 40mm RockShox Rudy XPLR suspension fork keeps handling confident on rough terrain, while Bontrager Aeolus Elite 35V carbon wheels and a carbon seatpost reduce vibrations for all-day comfort. SRAM’s Force AXS 12-speed drivetrain ensures precise, wireless shifting, making the Checkpoint+ SL 7 AXS a top choice for riders chasing performance and long-distance capability.

SPECS


FRAMESET

Frame: 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle

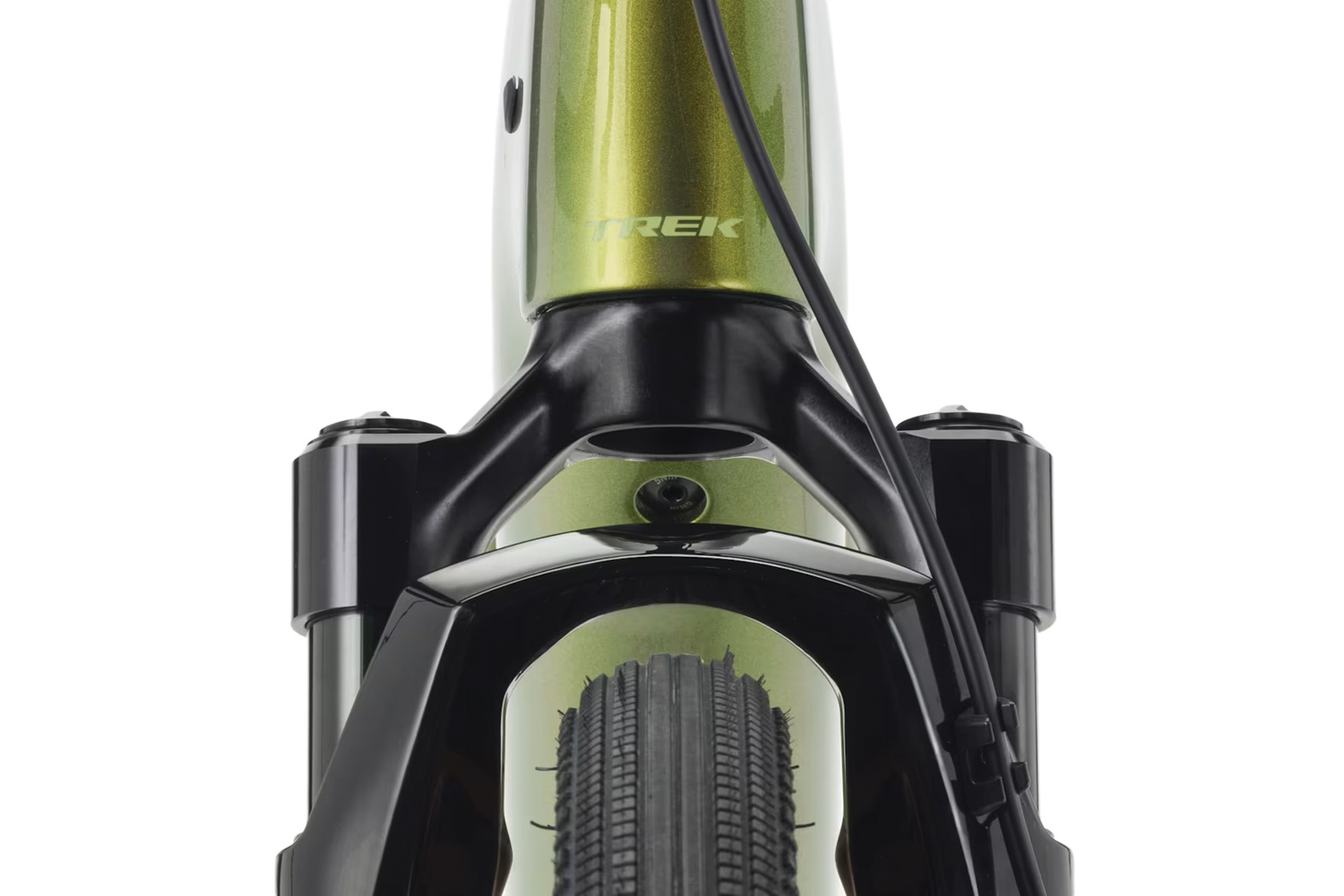

Fork: RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel
E SYSTEM

Battery: TQ 360Wh

Charger: TQ 4A charger

Controller: TQ color LED display with Bluetooth & ANT+ connectivity

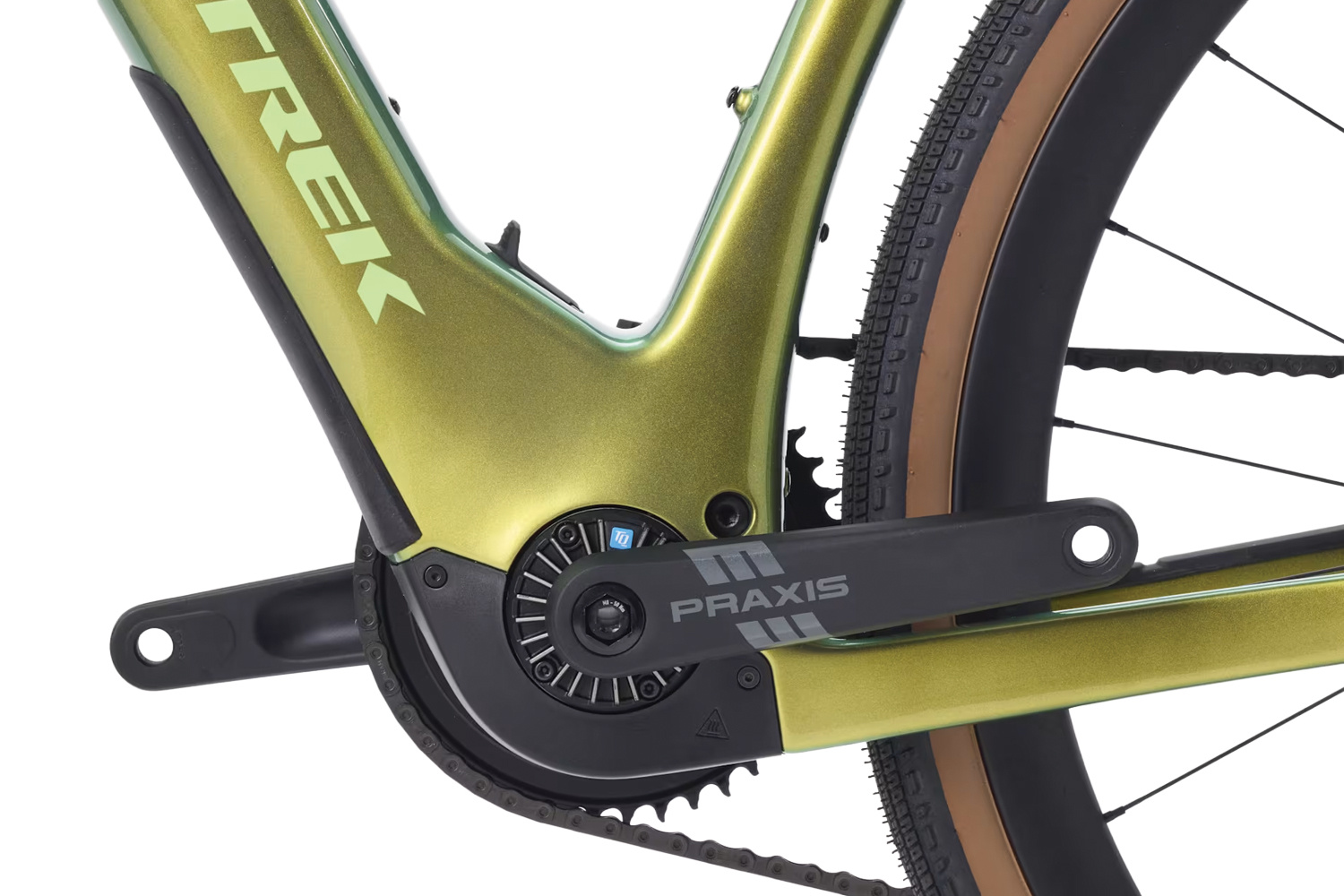

Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
WHEELS

Wheel Front: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle

Wheel Rear: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle

Skewer Rear: Bontrager Switch chamfered thru axle, removable lever

Tire: Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm

Tire Part: Bontrager TLR sealant, 180 ml/6 oz

Rim Strip: Bontrager TLR

Max Tire Size: 50mm without fenders, 42mm with fenders (as measured, see manual for details)
DRIVETRAIN

Shifter: SRAM Force AXS E1

Rear Derailleur: SRAM X0 Eagle AXS, T-Type

*Crank: Size: S Praxis Alloy, 165mm length

Size: M, ML Praxis Alloy, 170mm length

Size: L, XL Praxis Alloy, 172.5mm length

Cassette: SRAM Eagle XS-1295, T-Type, 10-52, 12 speed

Chain: SRAM X0 Eagle, T-Type, 12 speed

Max Chainring Size: 1x: 44T
COMPONENTS

Saddle: Verse Short Elite, hollow magnesium rails, 145mm width

Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length

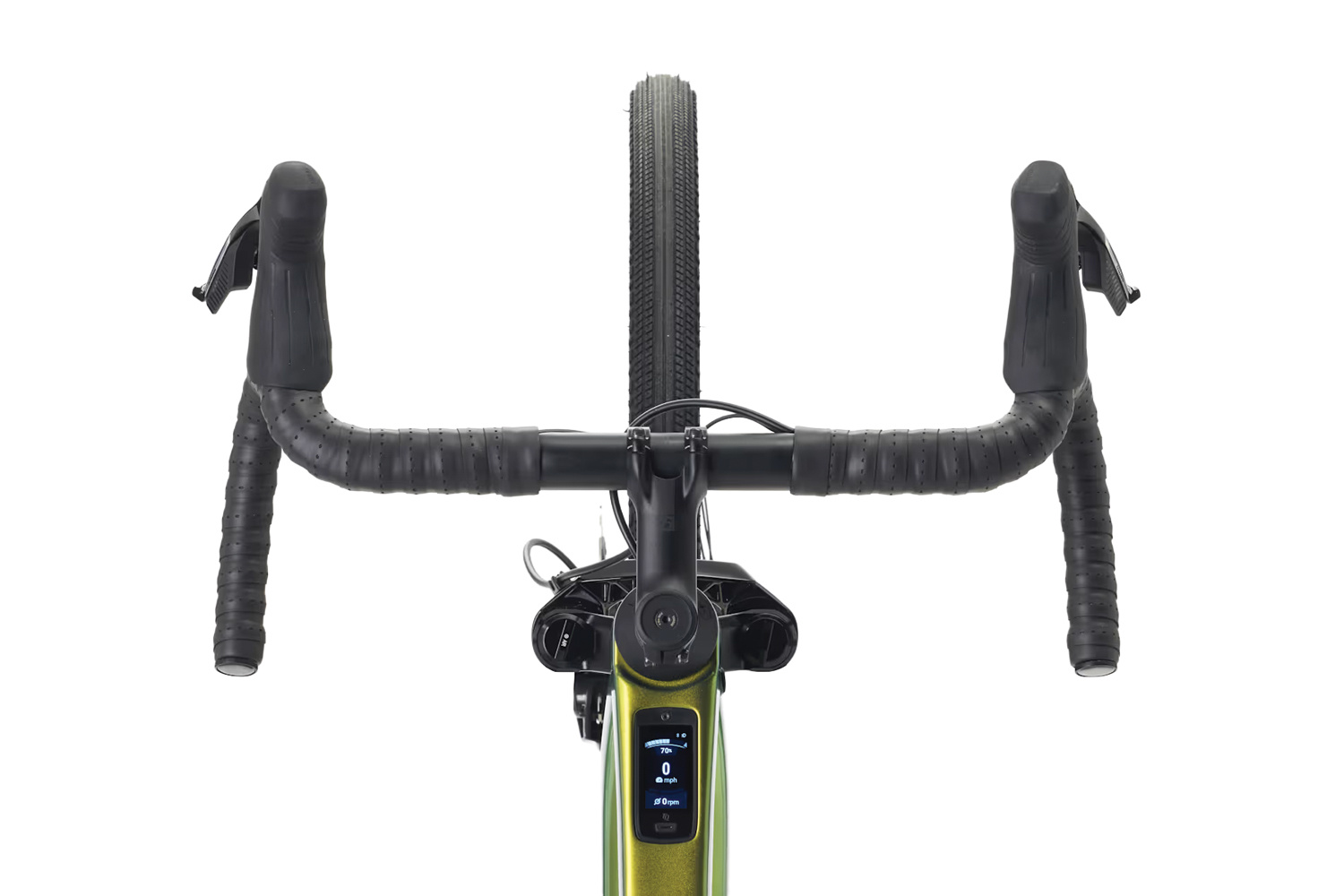

*Handlebar: Size: S Bontrager Pro Gravel, 40cm width

Size: M, ML Bontrager Pro Gravel, 42cm width

Size: L Bontrager Pro Gravel, 44cm width

Size: XL Bontrager Pro Gravel, 46cm width

Handlebar Tape: Bontrager Supertack Perf tape

*Stem: Size: S, M Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length

Size: ML, L Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length

Size: XL Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length

Rotor Rotor:  SRAM CenterLine X, centerlock, round edge, 160mm

Rotor Size: Max brake rotor sizes: 180mm front & rear
WEIGHT

Weight: ML - 14.05 kg / 30.98 lbs (with TLR sealant, no tubes)

Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
