Trek Checkpoint+ SL 6 AXS 2026

•••••
Available in store: Check availability

Available in store

Close
C$7,999.99
Out of stock
Out of stock
  • Overview
    • Go farther with the 2026 Trek Checkpoint+ SL 6 AXS. OCLV Carbon frame, TQ HPR60 motor, 360Wh battery, and SRAM GX AXS wireless drivetrain for smooth, long-distance gravel adventures. Available at Fresh Air Kelowna.

Product details

IN STORE PICKUP OR LOCAL DELIVERY ONLY

2026 Trek Checkpoint+ SL 6 AXS – Electric Gravel Bike for Endless Adventure
Smooth power, long-range performance, and adventure-ready design.

The 2026 Trek Checkpoint+ SL 6 AXS is an electric gravel bike built to go the distance. Powered by the quiet and efficient TQ HPR60 motor, it delivers a smooth boost that feels like a virtual tailwind on every climb. A 360Wh battery keeps you rolling mile after mile, while the lightweight OCLV Carbon frame ensures comfort and efficiency for long adventures. Outfitted with a 12-speed SRAM GX AXS wireless drivetrain for crisp, reliable shifting under load and durable alloy wheels, this e-gravel bike is ready for big rides, gravel races, and multi-day adventures.

SPECS


FRAMESET

Frame: 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle

Fork: Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
E SYSTEM

Battery: TQ 360Wh

Charger: TQ 4A charger

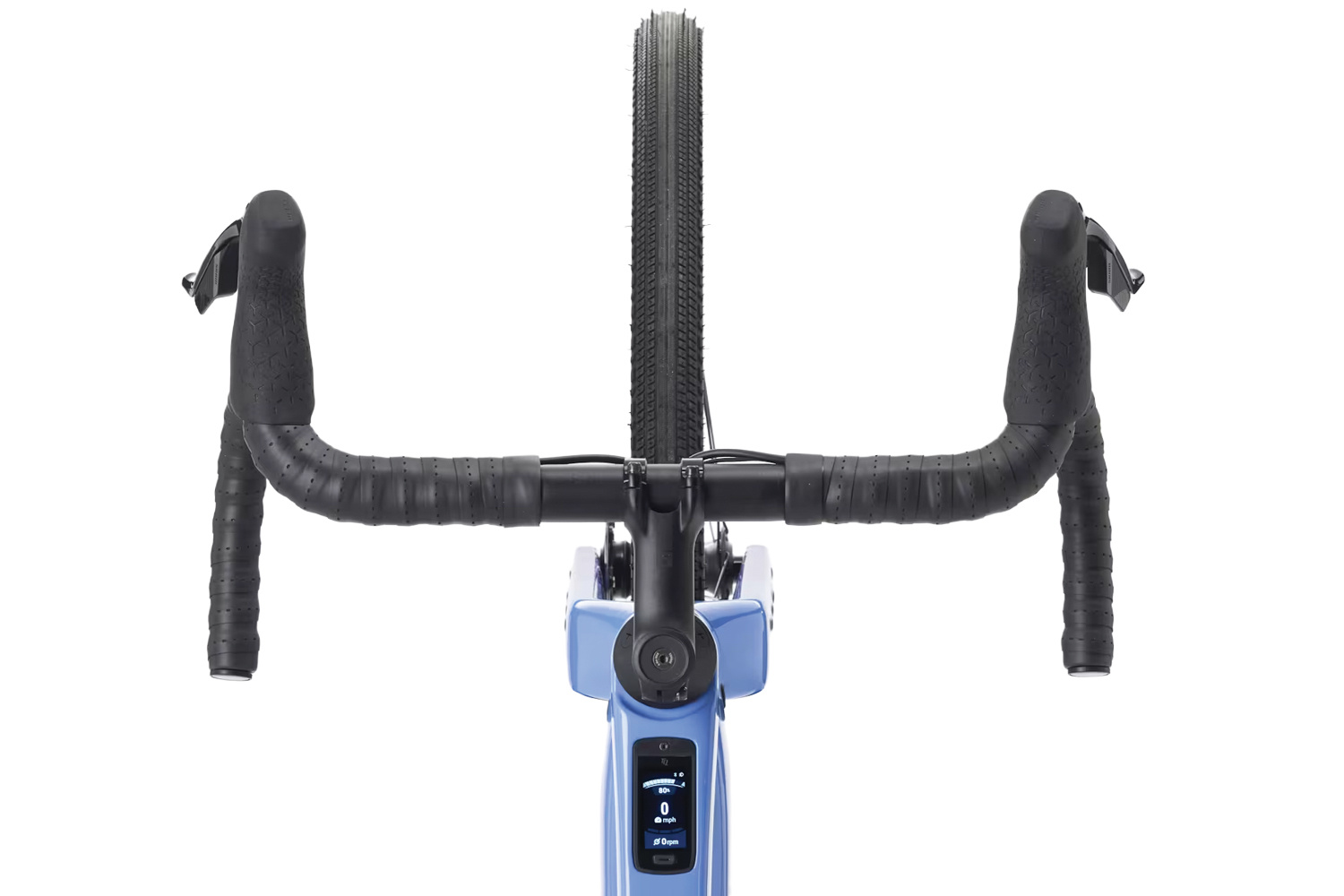

Computer: TQ LED display with Bluetooth & ANT+ connectivity

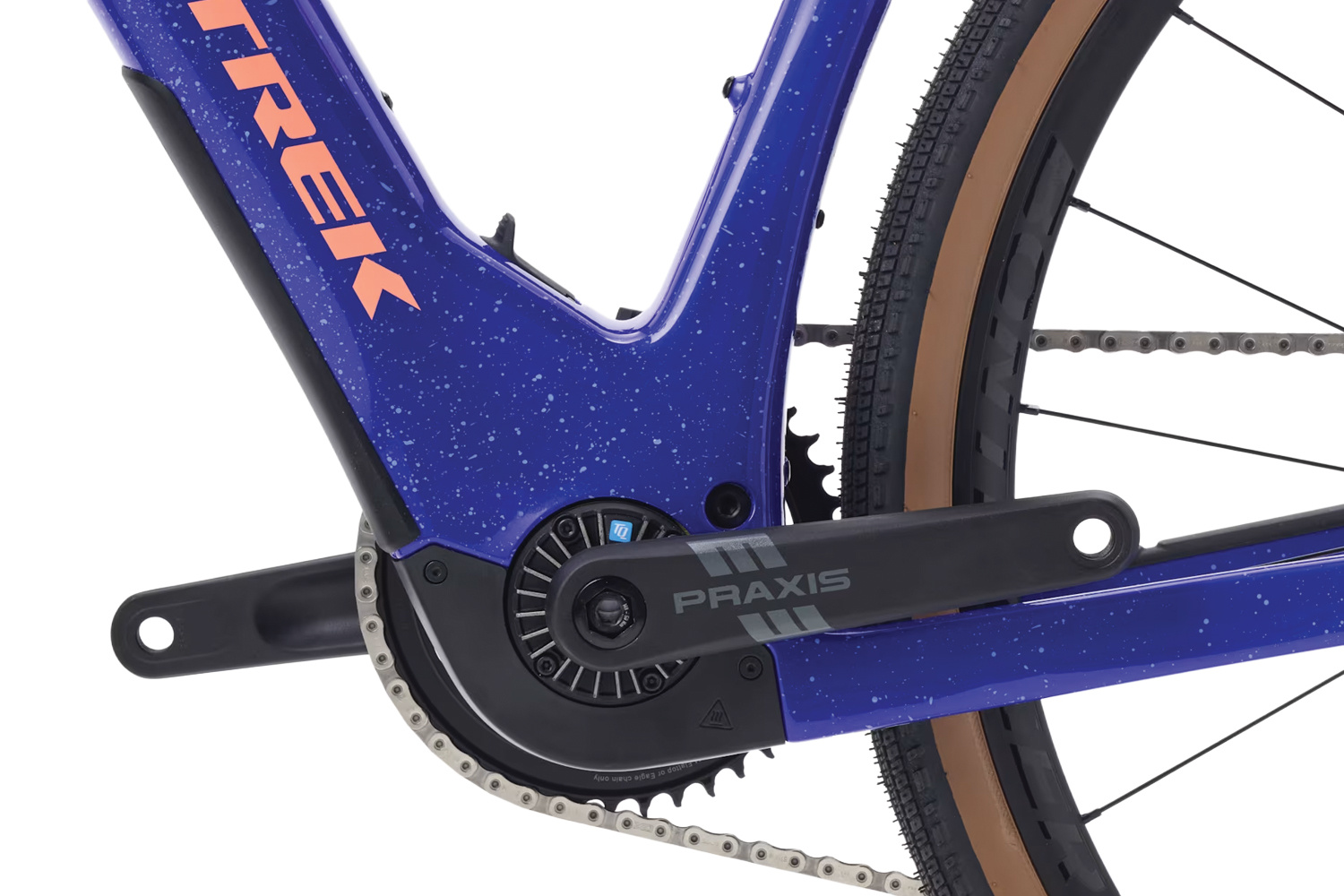

Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
WHEELS

Wheel Front: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle

Wheel Rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle

Skewer Front: Bontrager Switch chamfered thru axle

Skewer Rear: Bontrager Switch chamfered thru axle, removable lever

Tire: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm

Tire Part: Bontrager TLR sealant, 180 ml/6 oz

Rim Strip: Bontrager TLR

Max Tire Size: 50mm without fenders, 42mm with fenders (as measured, see manual for details)
DRIVETRAIN

Shifter: SRAM Rival AXS, 13 speed

Rear Derailleur: SRAM GX Eagle AXS, T-Type

*Crank: Size: XS, S Praxis Alloy, 165mm length

Size: M, ML Praxis Alloy, 170mm length

Size: L, XL Praxis Alloy, 172.5mm length

Cassette: SRAM Eagle XS-1275, T-Type, 10-52, 12 speed

Chain: SRAM GX Eagle, T-Type, 12 speed

Max Chainring Size: 1x: 44T
COMPONENTS

Saddle: Verse Short Comp, steel rails, 145mm width

Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length

*Handlebar: Size: XS, S Bontrager Elite Gravel, alloy, 40cm width

Size: M, ML Bontrager Elite Gravel, alloy, 42cm width

Size: L Bontrager Elite Gravel, alloy, 44cm width

Size: XL Bontrager Elite Gravel, alloy, 46cm width

Handlebar Tape: Bontrager Supertack Perf tape

*Stem: Size: XS Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length

Size: S, M Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length

Size: ML, L Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length

Size: XL Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length

Rotor Rotor:  SRAM Paceline, rounded, centerlock, 160mm

Rotor Size: Max brake rotor sizes: 180mm front & rear
WEIGHT

Weight: ML - 13.76 kg / 30.34 lbs (with TLR sealant, no tubes)

Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
