Trek Checkpoint+ SL 5 2026

•••••
Available in store: Check availability

Available in store

Close
C$6,999.99
Out of stock
Out of stock
  • Overview
    • Ride farther with the 2026 Trek Checkpoint+ SL 5. Features OCLV Carbon frame, TQ HPR60 motor, 360Wh battery, Shimano GRX 12-speed drivetrain, and endurance geometry. Available at Fresh Air Kelowna.

Product details

IN STORE PICKUP OR LOCAL DELIVERY ONLY

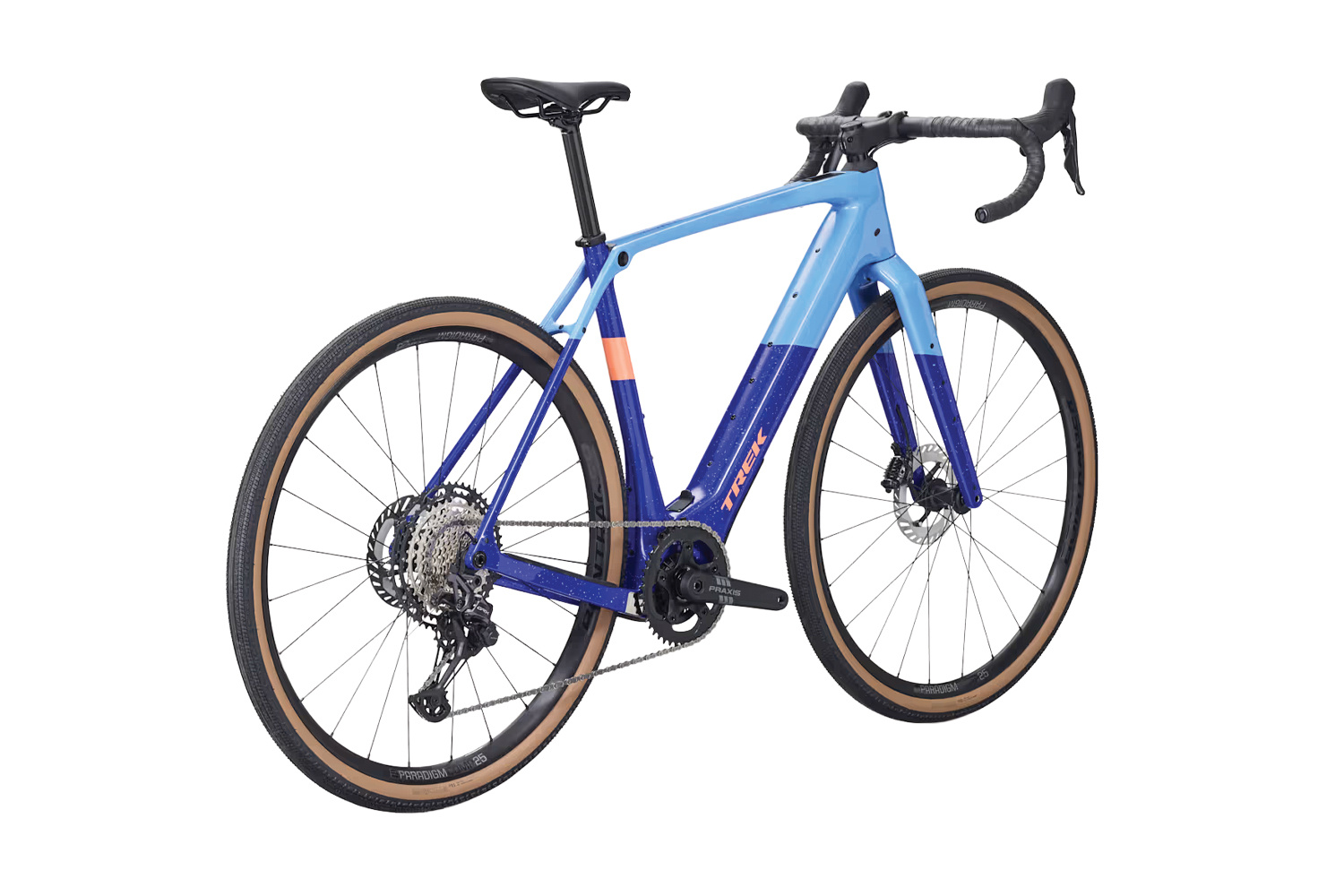

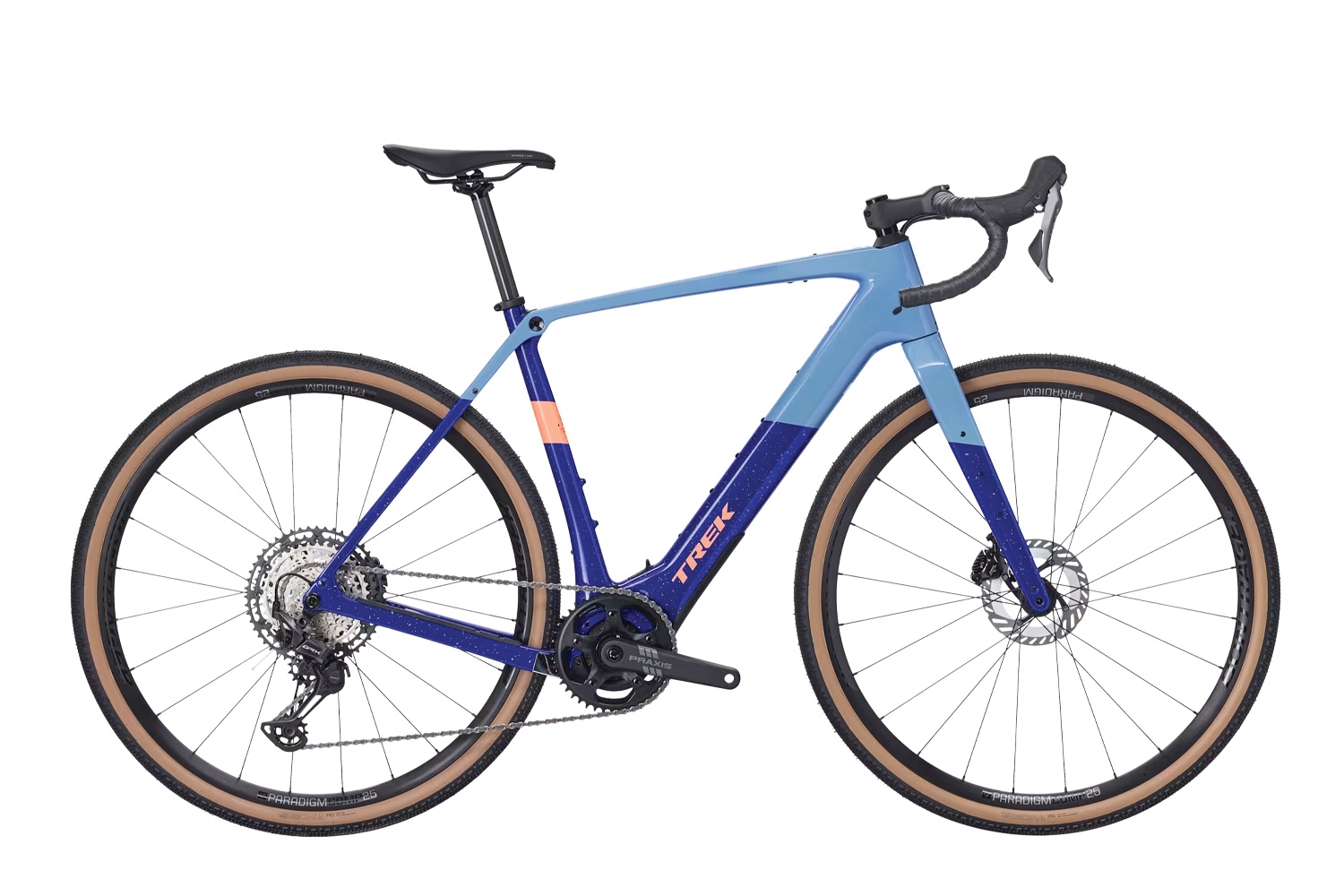

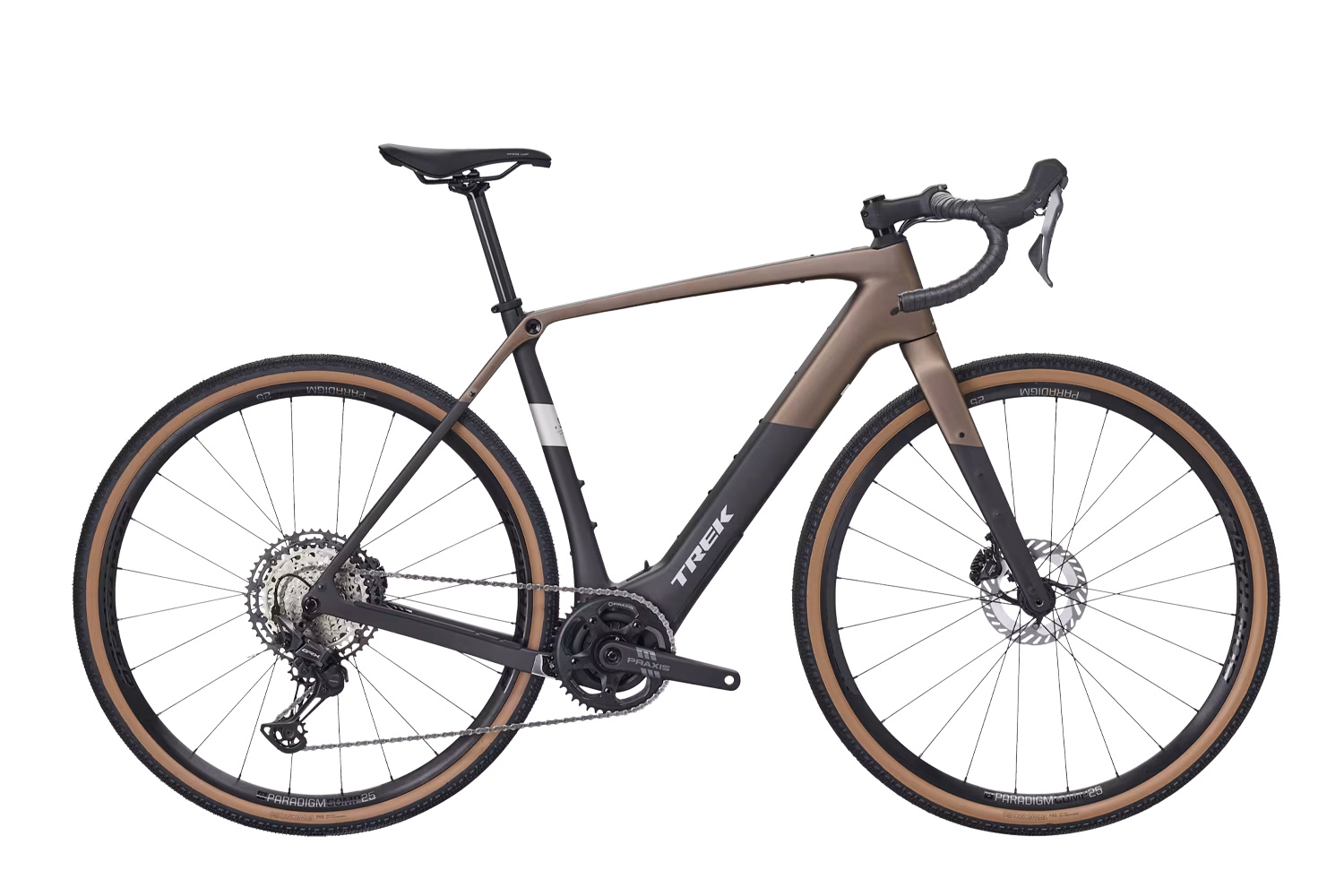

2026 Trek Checkpoint+ SL 5 – Electric Gravel Bike for Long-Distance Adventures
Smooth power, endurance comfort, and all-road capability.

The 2026 Trek Checkpoint+ SL 5 is an electric gravel bike designed to take you farther with less effort. Powered by the quiet and efficient TQ HPR60 motor, it delivers a natural-feeling boost that helps you conquer climbs and go the distance. The 360Wh battery provides reliable range for long rides, while the lightweight OCLV Carbon frame ensures comfort and responsiveness on any terrain. Outfitted with durable alloy wheels and Shimano’s GRX 12-speed 1x drivetrain, this e-gravel bike blends rugged performance with all-day endurance geometry for adventure-ready versatility.

SPECS


FRAMESET

Frame: 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle

Fork: Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
E SYSTEM

Battery: TQ 360Wh

Charger: TQ 4A charger

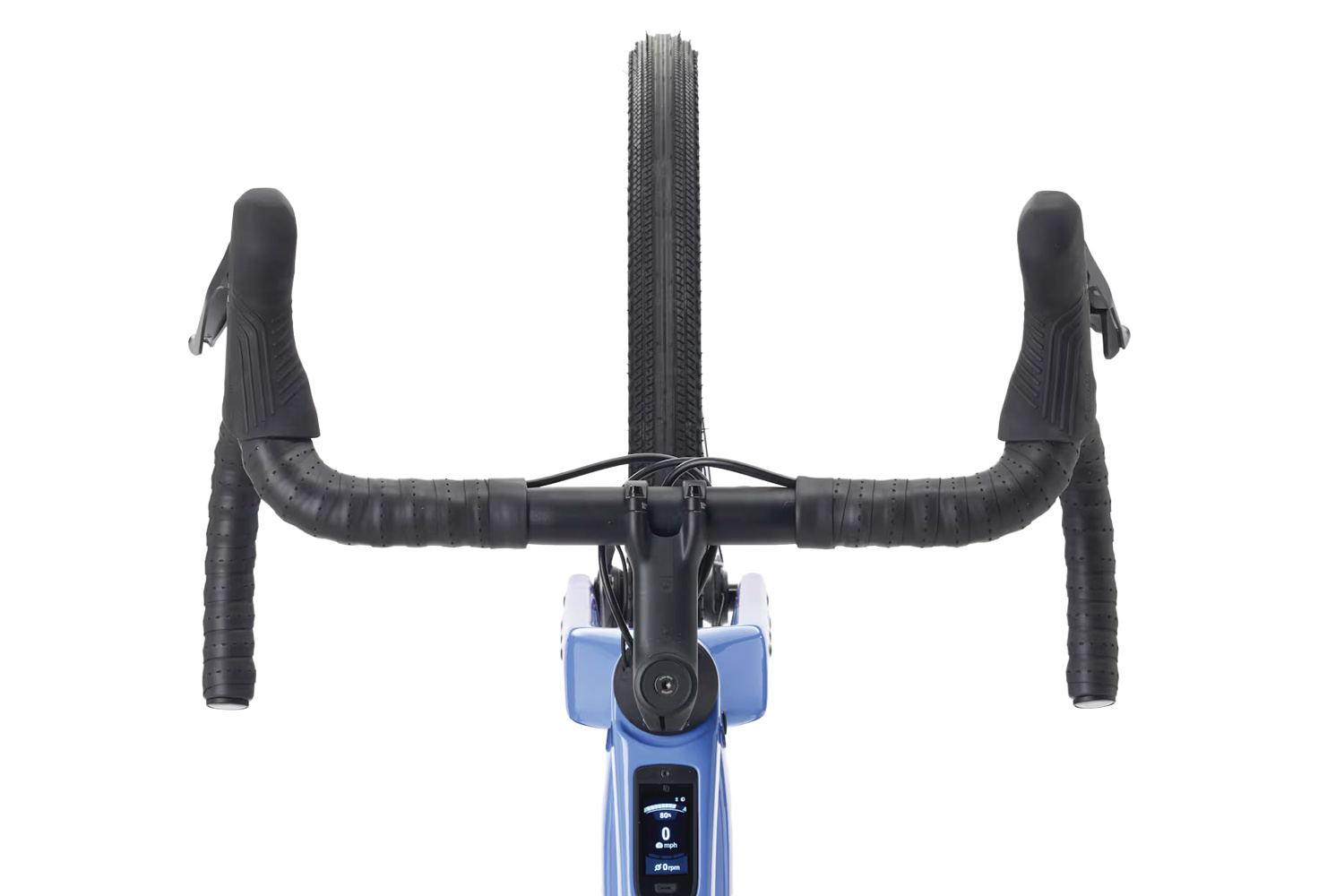

Computer: TQ LED display with Bluetooth & ANT+ connectivity

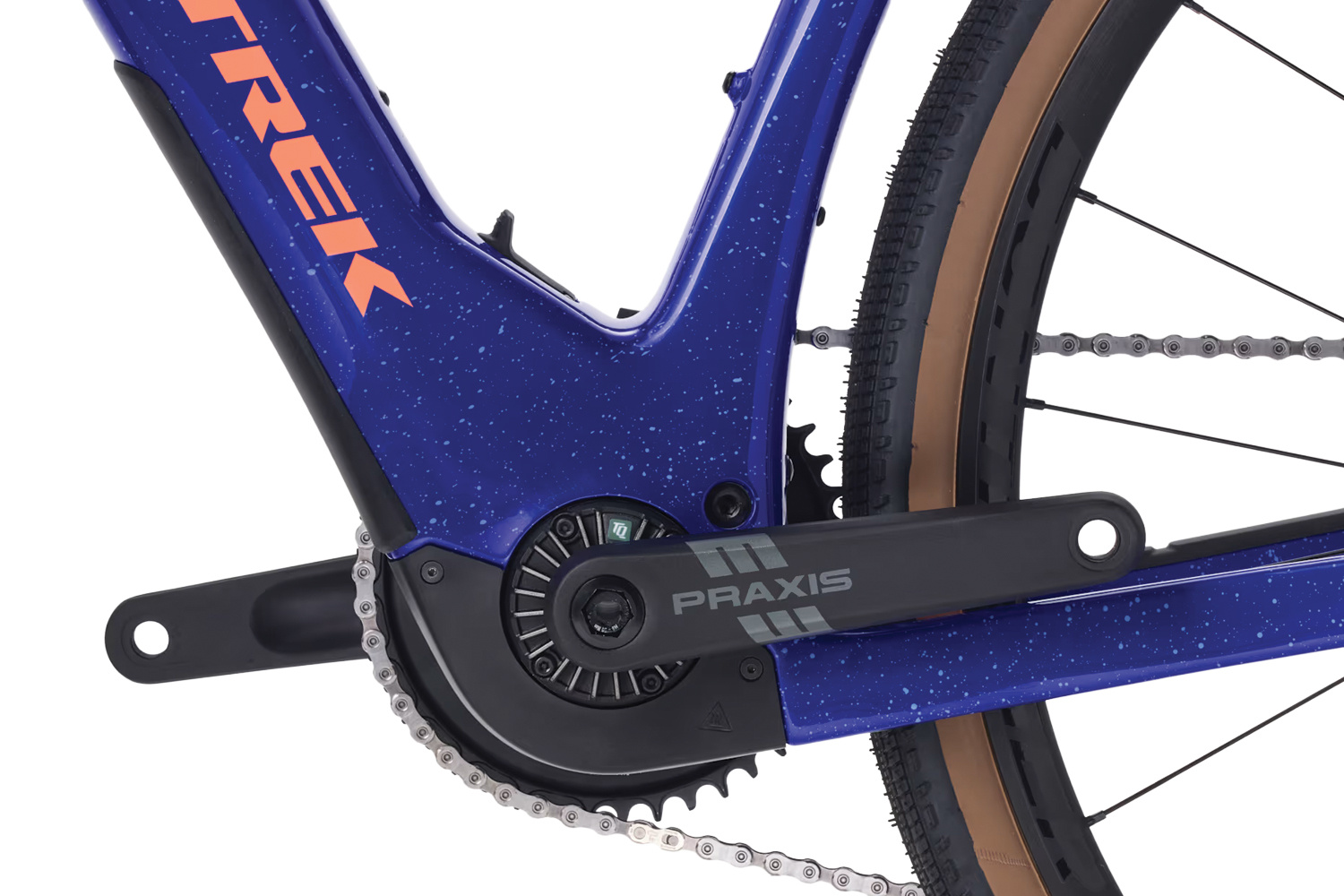

Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
DRIVETRAIN

Shifter: Shimano GRX RX820, 12 speed

Rear Derailleur: Shimano GRX RX822, 51T max cog

*Crank: Size: XS, S Praxis Alloy, 165mm length

Size: M, ML Praxis Alloy, 170mm length

Size: L, XL Praxis Alloy, 172.5mm length

Cassette: Shimano XT M8100, 10-51, 12 speed

Chain: Shimano XT M8100, 12 speed

Max Chainring Size: 1x: 44T
WEIGHT

Weight: ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)

Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
